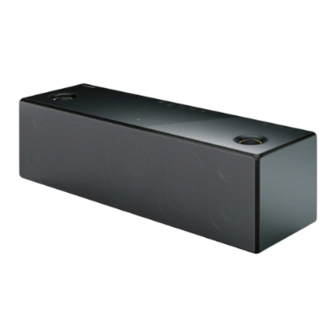

Personal Audio System Sistema de audio personal Enjoy Music over Your Wi-Fi Network Disfrute de la música a través de su red Wi-Fi Read this document first. Lea este documento primero. SRS-X9...
This manual introduces how to play music connecting this unit to your Wi-Fi network. For usage without a Wi-Fi network, refer to the Help Guide (page 26). Connecting to your Wi-Fi network Connect the unit to your Wi-Fi network. Choose A, B, or C, depending on your device. Required items: wireless router, ...
........page 25 Playing music on your iPhone/iPod touch/ iPad page Software: AirPlay About Help Guide ........page 26 Playing Internet music services using your smartphone/iPhone page Software: SongPal Playing music on your PC Software: Windows Media Player http://rd1.sony.net/help/speaker/srs-x9/zz/...
Page 4
Connecting to Wi-Fi using a smartphone or iPhone Introduction Preliminary steps: Turn on the unit. Install the free app “SongPal” to add the unit to Record the SSID and password of your router the Wi-Fi network to which your smartphone/ in the following spaces.
Page 5
Make a BLUETOOTH connection between the unit and smartphone/iPhone. Smartphone For a non-NFC compatible smartphone, see Touch the N-Mark on the unit with the Non-NFC compatible smartphone to on the right. smartphone. Tap and start up the Tap and start up [SongPal] on Touch and hold until your smartphone.
Page 6
Check that the (BLUETOOTH) Make a BLUETOOTH connection between the unit and smartphone/iPhone. (continued) indicator is lit. Smartphone Tap the Tap [SONY:SRS-X9 (BLUETOOTH) PAIRING button of the unit once.* (Bluetooth)] on your smartphone. * The first time you tap the...
Page 7
Configure Wi-Fi settings following the “SongPal” instructions. Check that the LINK indicator lights up in green. Smartphone Set the wireless LAN antenna of the unit (page 25). If needed, select the SSID and enter the password recorded in step 1 - (page 4).
Page 8
Connecting to Wi-Fi via a wireless router with a WPS button (AOSS) Introduction Set the wireless LAN antenna, Turn on the unit. then place the unit close to your router. Configure Wi-Fi settings with the WPS (AOSS) button on the wireless router. To check if your wireless router is compatible with WPS (Wi-Fi Protected Setup™), refer to the operating instructions of your router.
Page 9
Press and hold the WPS button* Within 90 seconds, press the WPS Check that the LINK indicator of the unit until it beeps (about 3 button of the router. lights up in green. seconds). Flashing Depending on the wireless router, press and The WPS button is on the rear of the unit.
Page 10
Connecting to Wi-Fi using a personal computer (PC) Introduction Record the SSID and password of Connect the unit to the PC with a your router. LAN cable directly. If your wireless router does not have a WPS SSID: (AOSS) button, configure Wi-Fi settings by connecting the unit to your PC with a LAN cable.
Page 11
Turn on the unit. Display [Sony Network Device Select the language from Setting] on your PC. [Language Setup]. Launch a browser. Enter the following URL in the address bar. The above URL is only for when the PC and unit are connected with a cable.
Page 12
Connecting to Wi-Fi using a personal computer (PC) Select [Network Settings] from Select the SSID of your wireless Select [Apply]. the menu. router and enter the password. Network Settings SSID Apply See the recorded password at the step 1 (page 10).
Page 13
When prompted, unplug the LAN Check that the LINK indicator cable from the unit. lights up in green. Flashing Set the wireless LAN antenna (page 25). When the Wi-Fi connection is established, the LINK indicator lights up in green. It may take more than 1 minute to light up. Next: ...
Page 14
Playing music on your PC (Software: Media Introduction Connect the unit, PC, and Tap the NETWORK button of the smartphone/iPhone to your Wi-Fi unit. network. You can listen to music with the unit by setting “Media Go,” installed in your PC, as the server. Use the “SongPal”...
Page 15
Set “Media Go” on your PC as the server. Start [Media Go] on your PC. Select [Media Sharing] on the [Preferences...] Check [Library name] of [Media Sharing]. screen. [Library name] can be changed to an arbitrary Select [Preferences...] from the [Tools] menu. name.
Page 16
Google Play or the App Store. Tap and start up [SongPal]. Follow the on-screen instructions. If the home screen is not Select [Music]. displayed, flick the display to Video and photo cannot be the right. Then select [Device played. Select] [Other] [SRS-X9].
Page 17
To enjoy more dynamic sound Select a song from the list and play it. The unit plays “Media Go” music. Remove the speaker grille on the front of the unit with the speaker grille detach tool Adjust the volume using “SongPal.” (supplied).* Speaker grille detach tool (supplied) * Keep the removed grille on a flat surface to prevent...
Page 18
Select on the iTunes window. Update iTunes to the latest version beforehand. To enjoy more dynamic sound, see page 17. Select [SONY:SRS-X9] on the AirPlay menu of iTunes. SONY:SRS-X9 Connect the unit and PC/Mac to the same SSID of your router.
Page 19
Update the iPhone/iPod touch/iPad to the latest version. To enjoy more dynamic sound, see page 17. Tap and select [SONY:SRS-X9]. Connect the unit and iPhone/iPod touch/iPad to the same SSID of your router. See page for connecting the unit to your Wi-Fi network.
Page 20
Playing Internet music services (Software: SongPal) using your smartphone/iPhone Introduction Connect the unit and Prepare the “SongPal” app. smartphone/iPhone to your Wi-Fi network. You can listen to various Internet music Install the “SongPal” app on your services using the free app “SongPal” on your smartphone/iPhone.
Page 21
Adjust the volume using “SongPal.” If the home screen is not displayed, flick the display to the right. Then select [Device Select] [Other] [SRS-X9]. Speaker grille detach tool (supplied) * Keep the removed grille on a flat surface to prevent distortion.
• Keep the unit away from metal objects. frequency band (IEEE 802.11 b/g) for the Wi-Fi the / (on/standby) indicator keeps flashing, network. consult your nearest Sony dealer or the shop No sound/Low sound level you purchased this unit. • When setting a Wi-Fi network using the “SongPal”...
Page 23
How to check Wi-Fi signal strength To receive a stronger signal, try the following: How to initialize the unit ˋ Change the direction of the wireless LAN (reception sensitivity) Initialize the unit if these measures do not antenna. resolve the problem or if the settings fail. While the unit is connected to Wi-Fi (the ˋ...
Page 24
About “SongPal” “SongPal” is an app for controlling Sony audio devices which are compatible with “SongPal”, by your smartphone/iPhone. Downloading this app on your smartphone/iPhone provides the following. Sound settings of SRS-X9 Home screen Displays the functions of the You can easily customize your sound, or use selected device, music services, Sony’s recommended settings “ClearAudio+”.
LINK indicator VOL (volume) –/+ button Rear of the unit / (on/standby) button/indicator N-Mark AC IN connector WPS button LAN port For more details about other parts and controls, refer to Help Guide. http://rd1.sony.net/help/speaker/srs-x9/zz/...
About Help Guide Web document for a PC/smartphone http://rd1.sony.net/help/speaker/srs-x9/zz/ Refer to Help Guide for more details about connection/playback methods or other information such as the following. • Wired network connection • USB connection (USB-B • Listening to music on a Windows Media Player port) • Listening to High-Resolution...
Page 28
Este manual presenta cómo reproducir música mediante la conexión de esta unidad a su red Wi-Fi. Para utilizar sin una red Wi-Fi, consulte la Guía de ayuda (página 26). Conexión a su red Wi-Fi Conecte la unidad a su red Wi-Fi. Escoja A, B o C, según su dispositivo.
Software: AirPlay Acerca de la Guía de ayuda Reproducción de los servicios de música en Internet con su teléfono inteligente/iPhone ........página 26 página Software: SongPal Reproducción de música en su PC Software: Windows Media Player http://rd1.sony.net/help/speaker/srs-x9/zz/...
Page 30
Conexión a Wi-Fi con un teléfono inteligente o iPhone Introducción Pasos preliminares: Encienda la unidad. Instale la aplicación gratuita “SongPal” para Registre el SSID y la contraseña de su router agregar la unidad a la red Wi-Fi donde su en los siguientes espacios. teléfono inteligente/iPhone está...
Page 31
Establezca una conexión BLUETOOTH entre la unidad y el teléfono inteligente/iPhone. Teléfono inteligente Para un teléfono inteligente no compatible con Toque el signo N de la unidad con el NFC, vea a en la derecha. Teléfono inteligente no compatible con teléfono inteligente.
Page 32
Establezca una conexión BLUETOOTH entre la unidad y el teléfono inteligente/iPhone. (continuación) (BLUETOOTH) esté iluminado. Teléfono inteligente Pulse el botón Pulse [SONY:SRS-X9 (BLUETOOTH) PAIRING de la unidad una vez.* (Bluetooth)] en su teléfono inteligente. * La primera vez pulse el botón...
Page 33
Configure los ajustes de Wi-Fi según las instrucciones de “SongPal”. Verifique que el indicador LINK se ilumine de color verde. Teléfono inteligente Configure la antena LAN inalámbrica de la unidad (página 25). Si es necesario, seleccione el SSID e ingrese la contraseña registrada en el paso Parpadeando Iluminado...
Page 34
Conexión a Wi-Fi a través de un router inalámbrico con un botón WPS (AOSS) Introducción Ajuste la antena LAN inalámbrica, Encienda la unidad. luego coloque la unidad cerca de su router. Configure los ajustes de Wi-Fi con el botón WPS (AOSS) en el router inalámbrico. Para verificar si su router inalámbrico es compatible con WPS (Wi-Fi Protected Setup™), consulte las instrucciones de funcionamiento...
Page 35
Mantenga presionado el botón WPS* Dentro de los 90 segundos, Verifique que el indicador LINK se de la unidad hasta que escuche un presione el botón WPS del router. ilumine de color verde. pitido (aproximadamente 3 segundos). Parpadeando Iluminado Según el router inalámbrico, mantenga El botón WPS está...
Page 36
Conexión a Wi-Fi con una computadora personal (PC) Introducción Registre el SSID y la contraseña Conecte la unidad a la PC con un de su router. cable LAN directamente. Si su router inalámbrico no tiene un botón WPS SSID: (AOSS), configure los ajustes de Wi-Fi mediante la conexión de la unidad a su PC con un cable LAN.
Page 37
Encienda la unidad. Visualice [Sony Network Device Seleccione el idioma en Setting] en su PC. [Language Setup]. Inicie un navegador. Ingrese la siguiente URL en la barra de direcciones. La URL anterior es solamente para cuando la PC y la unidad están conectadas con un cable.
Page 38
Conexión a Wi-Fi con una computadora personal (PC) Seleccione [Configuración de red] Seleccione el SSID de su router Seleccione [Aplicar]. en el menú. inalámbrico e ingrese la contraseña. Configuración de red SSID Aplicar Vea la contraseña registrada en el paso 1 (página 10).
Page 39
Cuando se le solicite, desenchufe Verifique que el indicador LINK se el cable LAN de la unidad. ilumine de color verde. Parpadeando Iluminado Configure la antena LAN inalámbrica (página 25). Cuando se establece la conexión Wi-Fi, el indicador LINK se ilumina de color verde. Puede tomar más de 1 minuto encenderse.
Page 40
Reproducción de música en su PC (Software: Media Introducción Conecte la unidad, la PC, y el Pulse el botón NETWORK de la teléfono inteligente/iPhone a su unidad. red Wi-Fi. Puede escuchar música con la unidad configurando “Media Go”, instalado en su PC, como el servidor.
Page 41
Configure “Media Go” en su PC como el servidor. Inicie [Media Go] en su PC. Seleccione [Media Sharing] en la pantalla Compruebe [Library name] del [Media [Preferences...]. Sharing]. Seleccione [Preferences...] del menú [Tools]. [Library name] se puede cambiar a otro nombre arbitrario.
Page 42
Pulse e inicie [SongPal]. Siga las instrucciones que figuran en la pantalla. Si no se muestra la pantalla Seleccione [Music]. de inicio, deslice la pantalla No se pueden reproducir hacia la derecha. Luego videos y fotos. seleccione [Device Select] [Other] [SRS-X9].
Page 43
Para disfrutar de un sonido más Seleccione una canción de la lista y dinámico reprodúzcala. La unidad reproduce la música de “Media Go”. Quite la rejilla del altavoz en la parte delantera de la unidad con la herramienta para quitar la Ajuste el volumen con “SongPal”.
Page 44
Actualice de antemano iTunes con la última versión. Para disfrutar de un sonido más dinámico, consulte la página 17. Seleccione [SONY:SRS-X9] en el menú AirPlay de iTunes. SONY:SRS-X9 Conecte la unidad y PC/Mac con el mismo SSID de su router.
Page 45
Actualice el iPhone/iPod touch/iPad con la última versión. Para disfrutar de un sonido más dinámico, consulte la página 17. Pulse y seleccione [SONY:SRS-X9]. Conecte la unidad y el iPhone/iPod touch/iPad con el mismo SSID de su router. Consulte la página para conectar la unidad a su red Wi-Fi.
Page 46
Reproducción de los servicios de música en Internet (Software: SongPal) con su teléfono inteligente/iPhone Introducción Conecte la unidad y el teléfono Prepare la aplicación “SongPal”. inteligente/iPhone a su red Wi-Fi. Puede escuchar varios servicios de música de Instale la aplicación “SongPal” en su teléfono Internet con la aplicación gratuita “SongPal”...
Page 47
Si no se muestra la pantalla de inicio, deslice la pantalla hacia la derecha. Luego seleccione [Device Select] [Other] [SRS-X9]. Herramienta para quitar la rejilla del altavoz (suministrada) * Coloque la rejilla que ha quitado en una superficie plana...
Sony más cercano o el negocio donde compró • Suba el volumen de la unidad y del dispositivo • Verifique que su router inalámbrico esté esta unidad.
Page 49
Cómo comprobar la intensidad de la Para recibir una señal más fuerte, pruebe lo Cómo iniciar la unidad siguiente: señal de Wi-Fi (sensibilidad de recepción) Inicie la unidad si estas medidas no solucionan ˋ Cambie la dirección de la antena LAN el problema o si falla la configuración.
Page 50
Acerca de “SongPal” “SongPal” es una aplicación que sirve para controlar dispositivos de audio de Sony que sean compatibles con “SongPal”, con su teléfono inteligente/iPhone. Descargar esta aplicación en su teléfono inteligente/iPhone proporciona lo siguiente. Configuración de sonido de SRS-X9...
Parte posterior de la unidad Botón VOL (volumen) –/+ Botón/indicador / (encendido/en espera) Signo-N Conector AC IN Botón WPS Puerto LAN Para obtener más detalles acerca de otros componentes y los controles, consulte la Guía de ayuda. http://rd1.sony.net/help/speaker/srs-x9/zz/...
Acerca de la Guía de ayuda Documento web para una PC/teléfono inteligente http://rd1.sony.net/help/speaker/srs-x9/zz/ Consulte la Guía de ayuda para obtener más detalles sobre los métodos de conexión/reproducción u otra información como lo que se menciona a continuación. • Conexión de red con cable • Conexión USB (Puerto...
