Summary of Contents for Supco CTC 53200

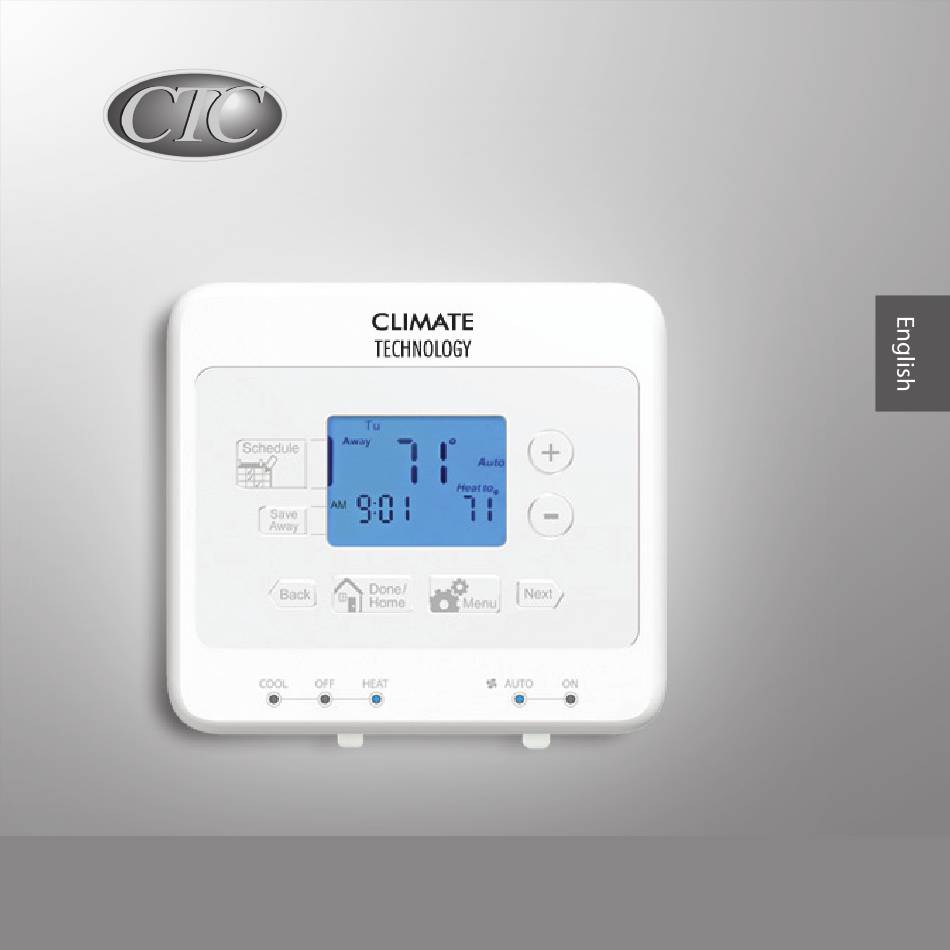

- Page 1 ® A Division of SUPCO® Owner’s Manual Owner’s Manual Model 53200 5-1-1Programmable 5-1-1Programmable Weekdays-Saturday-Sunday Weekdays-Saturday-Sunday...
-
Page 2: Table Of Contents
Table Of Contents At A Glance Know Your Thermostat � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3 Setup Setting Day and Time �... -

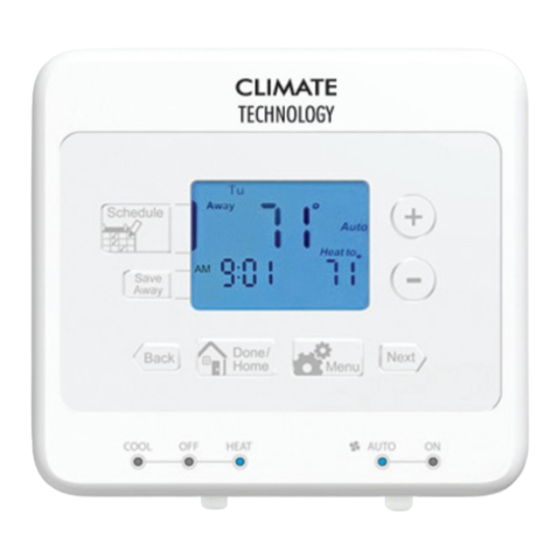

Page 3: Know Your Thermostat
Know Your Thermostat Your thermostat has been pre-programmed from the factory with no programming necessary� We recommend using these pre-programmed settings for a few days before altering them as they offer maximum energy saving benefits� If you do decide to alter your programs, use the charts on page 13 to write out your scheduled times and temperatures�... - Page 4 Know Your Thermostat 1� Allows Schedule Setup for altering scheduled programs� 2� Sets the Save Away feature for when you will not be home during a regularly programmed time� 3� Confirms completion of an action or returns you to the Home screen� 4�...
- Page 5 Know Your Thermostat...
- Page 6 Know Your Thermostat 1� Holds 2 “AA” Batteries� 2� HE/HG Switch - allows you to set your furnace to Gas/Oil or Electric, based on the type of system you have� 3� Allows your thermostat to operate your HVAC system* properly by indicating the system type that you have�...
- Page 7 Know Your Thermostat...
- Page 8 Know Your Thermostat 1� Shows the current day of the week or weekend� 2� Indicates the thermostat is running in schedule mode� 3� Indicates the current room temperature� 4� ‘C’ will display when in Celsius mode� Nothing will display when set to Fahrenheit�...
- Page 9 Know Your Thermostat Filter Auto At Home Heat to...
-
Page 10: Setting Day And Time
Setting Day and Time Once you install the batteries, the thermostat will prompt you to set the current day and time� 1� You will notice that “Mon” will be flashing at the top left of your screen� Use the buttons to move to your current day of the week and press the button to advance to the next step�... - Page 11 Setting Day and Time Updated!
-
Page 12: Scheduling Introduction
Scheduling Introduction Read the scheduling section thoroughly to ensure you understand your scheduling options and which will best fit with your lifestyle� The following notes should help you with scheduling: • The schedule time can be set in 15 minute increments, and remains the same for both Heat and Cool programs�... -
Page 13: Personal Scheduling Charts
Personal Scheduling Charts Default Schedule Away Asleep Home Start Time: 8:00am Start Time: 10:00pm Heat Temp: F (22 Monday-Friday End Time: 6:00pm End Time: 6:00am Heat Temp: F (17 Heat Temp: F (19 Cool Temp: F (23 Cool Temp: F (28 Cool Temp: F (24 Start Time:... -
Page 14: Setting Your Schedule
Setting Your Schedule Schedule 1� Press the button to enter Scheduling mode� 2� Use the buttons to select “On” and then to move forward to Next Scheduling� Note: If you do not wish to use the scheduling option on your thermostat, refer to page 20, step 2�... - Page 15 Setting Your Schedule Schedule Auto At Home Heat to Mon Tu Th Fri Sa Su Mon Tu Th Fri Away Asleep At Home Next Next...
- Page 16 Setting Your Schedule 5� Use the buttons to adjust the start time on the left of the screen for the period and press � Again you will use the buttons to Next adjust the end time on the right of the screen for this scheduled period� Press again�...
- Page 17 Setting Your Schedule Mon Tu Th Fri Mon Tu Th Fri Away Away Asleep Asleep At Home At Home Heat to Cool to Next Next Mon Tu Th Fri Mon Tu Th Fri Away Away Asleep Asleep At Home At Home Heat to Cool to Next...
-
Page 18: Temporary Temperature Change
Temporary Temperature Change With Temporary Temperature Change you have the ability to alter the temperature for only the current running schedule� 1� Press the button once to activate the screen, the backlight will come on� 2� Use the buttons again to select a new temperature� 3�... - Page 19 Temporary Schedule Change At Home At Home Heat to Heat to At Home Heat to Done/ Home...
-
Page 20: Turning Off Scheduling
Turning Off Scheduling To turn off your schedule and have the thermostat permanently set to one temperature: 1� Press the button once� Schedule 2� Use the button to switch to Off and select � Done/ Home 3� The screen will show “Updated!” and return you to the home screen� Note: You will notice the black bar on the screen beside the Schedule button is not displayed anymore�... - Page 21 Turning Off Scheduling Schedule Auto At Home Heat to Done/ Home Auto Heat to Updated!
-
Page 22: Save Away
Save Away The Save Away feature allows you to set a lower or higher temperature for time you will be away from your home outside of your normal Away schedule� This can include days you will be away for vacation, or a few hours away from your home�... - Page 23 Save Away Auto At Home Heat to Heat to Save Away Hours Next Auto Heat to Updated! Hours Done/ Done/ Home Home...
-
Page 24: Alerts
Alerts This chapter will outline the various alerts the thermostat will report to you and how to respond to them� 1� Low Battery: This icon will appear when your batteries are starting to run low on power and should be changed to avoid system interruptions, (Figure 1) Change the batteries by gripping the sides of the thermostat firmly and pulling straight back, (Figure 1a)�... - Page 25 Alerts Auto At Home Heat to Filter Auto At Home Heat to...
- Page 26 Alerts 3� Auxiliary Heat: On multi-stage heat pumps this alert indicates your second stage heat is running� 4� Check System: Some heat pump systems are equipped with the ability to check system performance, indicated by the presence of an “L” wire attached to the backplate� This icon will flash on screen to alert the user that the heat pump is reporting a problem with the system�...
- Page 27 Alerts Auto Auto At Home At Home Heat to Heat to...
-
Page 28: Menu Options
Menu Options Under your Menu options you have the ability to reset your filter counter, change your day/time settings, and change first and second stage spans� To change each setting, you will need to hit the button Next to move through each feature� To access these options: 1�... - Page 29 Menu Options Filter Auto At Home Heat to Done/ Next Menu Home Next...
- Page 30 Menu Options 4� The next Menu option is to set your thermostat’s primary span� Use buttons to adjust between 1, 2, or, 3 degrees� Press Next after this has been changed or if no changes are necessary� The span setting regulates when and how long your system will run� The span has been set at the factory to 1 which will allow the system to turn on 1 F (0�5...
- Page 31 Menu Options SPA N SPA N Next Next TEMP Done/ Next Home...
-
Page 32: Additional Features
Additional Features Armchair Programming There is no need to stand at the wall where the thermostat is mounted while programming or changing settings� Simply remove the thermostat from the wall and make the necessary changes in the comfort of a chair�... -
Page 33: Troubleshooting And Support
Troubleshooting and Support Problem: No display� Solution: 1� Check battery position and battery life� Problem: Program does not change at desired setting� Solution: 1� Check the time in all programs for proper am/pm time� 2� Ensure thermostat is not in “Save Away” mode� 3�... - Page 34 Troubleshooting and Support Problem: Fan runs continuously� Solution: 1� Check fan setting to see if it is set to on� 2� Move HG/HE switch to opposite position� Problem: Heating or cooling does not turn on or off� Solution: 1� Check the system is in the right mode (heat or cool)� 2�...
-
Page 35: Technical Support
If you need any assistance with installation or setup of your new CTC thermostat, please email us� Our technical support staff is ready to help! Email: techsupport@supco�com CTC - Climate Technology Corp� A Division of SUPCO, Inc� 2230 Landmark Place Allenwood, NJ 08720 www�supco�com... - Page 36 1 Year Limited Warranty CTC Thermostats LIMITED WARRANTY CTC warrants your CTC Thermostat to be free from defects in material or workmanship for a period of one year from the date of sale to the original user or consumer purchaser� If your CTC Thermostat malfunctions or fails within the warranty period because of a defect in material or workmanship, we will replace it�...
- Page 37 1 Year Limited Warranty This warranty neither applies to batteries nor to deterioration of, nor damage to the product caused by the use of faulty batteries� Return your product, along with proof of purchase to the distributor where purchased� IN NO EVENT SHALL CTC BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES�...
