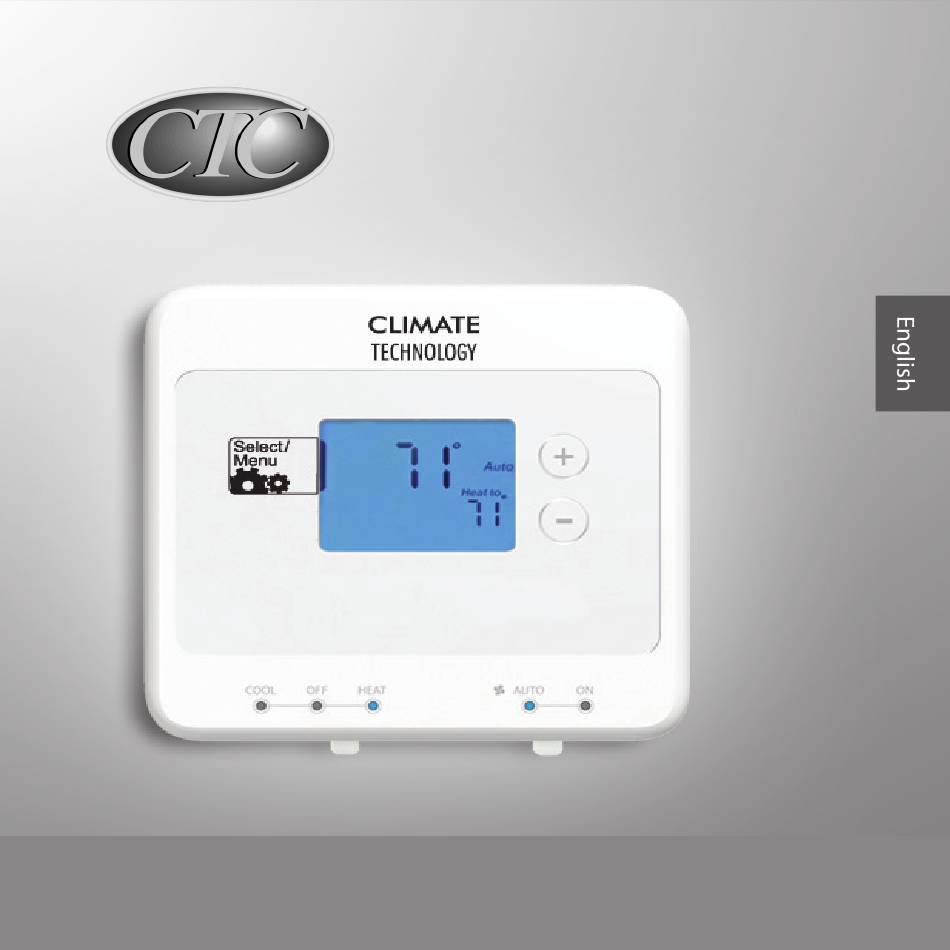

  • Page 1 ® Owner’s Manual A Division Of SUPCO® Model 53100 Non Programmable...
  • Page 2: Table Of Contents

    Table of Contents At A Glance Know Your Thermostat � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3 Setup Setting Temperature �...
  • Page 3: Know Your Thermostat

    Know Your Thermostat Read this manual thoroughly� The following notes should help you with getting around your thermostat: • The thermostat temperature can be set in increments of 1°F (1°C)� • After 15 minutes without a key press, the thermostat will return to the home display screen and save any changes you have made�...
  • Page 4 Know Your Thermostat 1� Allows access to the advanced features of the thermostat and saves changes to the menu options� 2� Adjusts time and temperature settings as well as moving up or down menu lists� 3� Indicates whether the system is set to Heat, Cool, or Off� 4�...
  • Page 5 Know Your Thermostat...
  • Page 6 Know Your Thermostat 1� Holds 2 “AA” Batteries� 2� HE/HG Switch - allows you to set your furnace to Gas/Oil or Electric, based on the type of system you have� 3� Allows your thermostat to operate your HVAC system* properly by indicating the system type that you have�...
  • Page 7 Know Your Thermostat...
  • Page 8 Know Your Thermostat 1� Indicates the current room temperature� 2� C will display when in Celsius mode� Nothing will display when set to Fahrenheit� 3� Low battery warning, replace the batteries in the thermostat� 4� Will show when your heat pump or system is reporting a problem to the thermostat�...
  • Page 9 Know Your Thermostat Filter Sys. Heat Cool to Auto...
  • Page 10: Setting Temperature

    Setting Temperature Once you install the batteries, the thermostat will display the home screen� 1� Set the system switch to Heat or Cool depending on your season� 2� Use the button to activate the thermostat� 3� Press the buttons again to adjust your set temperature� 4�...
  • Page 11 Setting Temperature Heat to Auto Updated!
  • Page 12: Alerts

    Alerts This chapter will outline the various alerts the thermostat will report to you and how to respond to them� 1� Low Battery: This icon will appear when your batteries are starting to run low on power and should be changed to avoid system interruptions, (Figure 1) Change the batteries by gripping the sides of the thermostat firmly and pulling straight back, (Figure 1a)�...
  • Page 13 Alerts Heat to Filter Heat to Auto...
  • Page 14 Alerts 3� Auxiliary Heat: On multi-stage heat pumps this alert indicates your second stage heat is running� 4� Check System: Some heat pump systems are equipped with the ability to check system performance, indicated by the presence of an “L” wire attached to the backplate� This icon will flash on screen to alert the user that the heat pump is reporting a problem with the system�...
  • Page 15 Alerts Sys. Aux. Heat to Heat to Auto Auto...
  • Page 16: Menu Options

    Menu Options Under your menu options you have the ability to reset your filter counter, span settings, and temperature measurement� After making changes to each menu option, the thermostat will show “Updated!”, save your changes, and move you back to the home screen� To access these options: 1�...
  • Page 17 Menu Options Filter Filter Span 1 Span 1 Span 2 Span 2 Filter Span 1 Span 1 Span 2...
  • Page 18 Menu Options Example: If your thermostat is set to turn on at 72 in heat mode, with a span setting of 2, your thermostat will activate your furnace at 71 and shut it down when it reaches 73 � For cooling at 72 with a span of 2, your air conditioner will activate at 73 and shut down...
  • Page 19 Menu Options Span 2...
  • Page 20: Additional Features

    Additional Features Power Failure Protection In the event that power is lost, the batteries will act as backup, saving your settings and programs� System Protection To protect your system from cycling, system turning on and off rapidly, your thermostat will prevent your system from turning back on for up to 3 minutes after it has been shut down�...
  • Page 21: Troubleshooting And Support

    Troubleshooting and Support Problem: No display� Solution: 1� Check battery position and battery life� Problem: Auto / Fan does not turn on� Solution: 1� Move HG/HE switch to opposite position� 2� Check the fan setting and make sure that it is not set to off� Problem: Fan runs continuously�...
  • Page 22 Troubleshooting and Support Problem: Heating or cooling does not turn on or off� Solution: 1� Check the system is in the right mode (heat or cool)� 2� Be sure to wait up to 4 minutes for system protection if your system was just on�...
  • Page 23: Technical Support

    If you need any assistance with installation or setup of your new CTC thermostat, please email us� Our technical support staff is ready to help! Email: techsupport@supco�com CTC - Climate Technology Corp� A Division of SUPCO, Inc� 2230 Landmark Place Allenwood, NJ 08720 www�supco�com...
  • Page 24 Limited Warranty CTC Thermostats LIMITED WARRANTY CTC warrants your CTC Thermostat to be free from defects in material or workmanship for a period of one year from the date of sale to the original user or consumer purchaser� If your CTC Thermostat malfunctions or fails within the warranty period because of a defect in material or workmanship, we will replace it�...
  • Page 25 Limited Warranty This warranty neither applies to batteries nor to deterioration of, nor damage to the product caused by the use of faulty batteries� Return your product, along with proof of purchase to the distributor where purchased� IN NO EVENT SHALL CTC BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES�...
