Opticron HR ED Series User Instructions

Opticron HR ED Series User Instructions

Fieldscopes

Advertisement

Quick Links

HR ED Fieldscopes
User Instructions and 30 Year Guarantee
HRED0217
Models

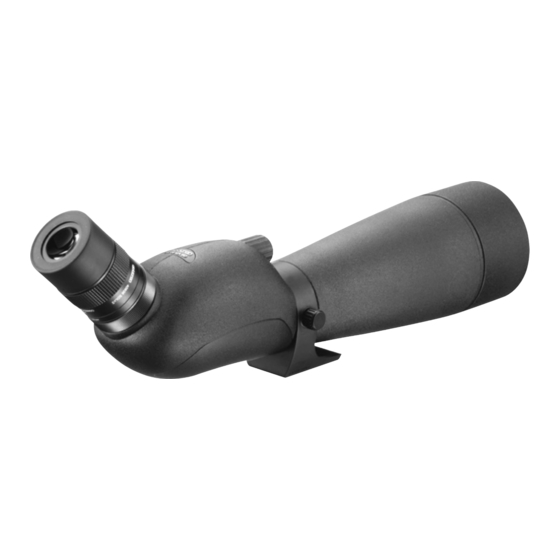

HR 66 GA ED
HR 66 GA ED/45
HR 80 GA ED
HR 80 GA ED/45

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HR ED Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Opticron HR ED Series

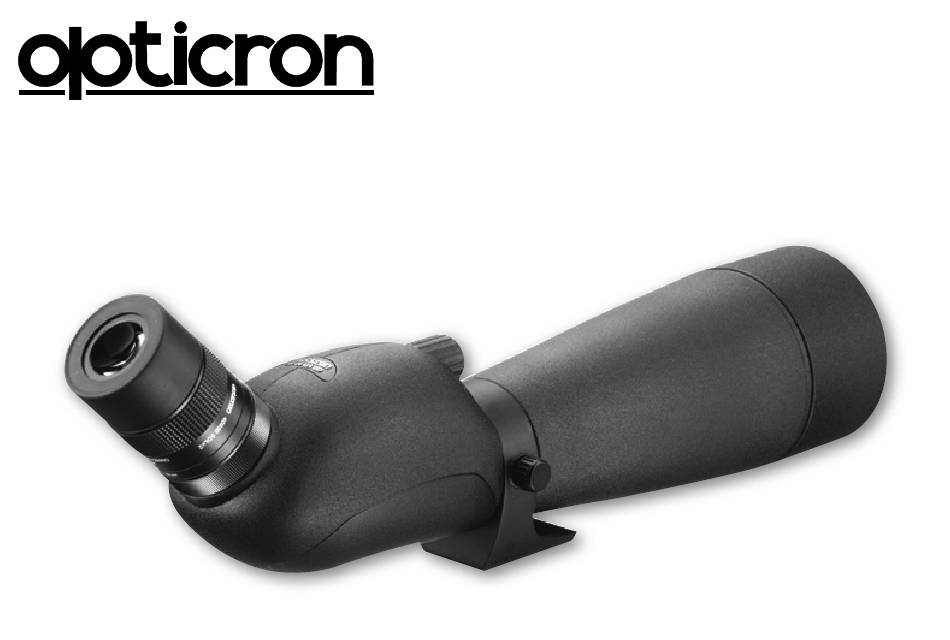

  • Page 1 HR ED Fieldscopes User Instructions and 30 Year Guarantee Models HR 66 GA ED HR 66 GA ED/45 HR 80 GA ED HR 80 GA ED/45 HRED0217...
  • Page 2 Main Features & Specifications A Interchangeable eyepiece (not included). B Rubber armoured focus wheel with contoured ribs to maximise comfort and handling with or without gloves. C Tripod sleeve with +/- 90˚ rotation and large footprint tripod adapter socket. D Retractable lens hood - extend when viewing in bright sunlight.
  • Page 3 Eyepieces Eyepieces • SDLv2 • HDF • HR Product Code 40936 40810 40831 40861 40930 40931 41145 Magnification 66 18-54x 20xWW 28xWW 23xWA 30xWA 20-60x Magnification 80 24-72x 27xWW 38xWW 120x 31xWA 41xWA 27-80x Eye Relief (mm) 20-18 20-16 Getting Started Your HR ED fieldscope will bring a new dimension to long range observation bringing far away subjects into clear and sharp focus.
  • Page 4 Waterproof Cases Stay-on-the-scope waterproof in Green. Water resistant multi-layer padded cases individually designed to fit each model. Protects instrument while fitted to a tripod and in use. Includes removable end caps and adjustable neoprene carry strap for extra comfort. Care & Cleaning To clean outer glass surface of the eyepiece and objective lens, gently remove excess dirt and dust using a compressed air device or blower brush.
  • Page 5 This is an approximate figure based on 35mm SLR cameras. DSLR/compact system cameras use different sized image sensors compared to 35mm so an equivalent telephoto conversion figure must be calculated separately. For information on push fit photoadapters visit our Digiscoping & Telephotography pages at www.opticron.co.uk Digiscoping with digital compact cameras, camcorders and mobile phones Shooting high magnification photos and video through your fieldscope is possible if you have a suitable camera, camcorder or mobile phone.
  • Page 6 Purchase Date: ..............Dealer: ..................................Opticron HR ED fieldscopes are of a very high quality both in their performance and construction. We guarantee some parts in these instruments for up to 30 years under the following conditions: In the case of defects attributable to faulty processing or materials, we will assume responsibility for the labour and material costs during the first 10 years after purchase.
  • Page 7 Registration If you would like to register your purchase with us please visit www.opticron.co.uk and complete the online Product Registration Form. Alternatively please telephone us during normal working hours on the numbers given. We will need the product name and serial number (if applicable), purchase date and outlet, your name and postcode.
  • Page 8 Address: Opticron, Unit 21, Titan Court, Laporte Way, Luton, Bedfordshire, LU4 8EF, UK Phone: +44 (0)1582 726522 Fax: +44 (0)1582 723559 Email: sales@opticron.co.uk...
