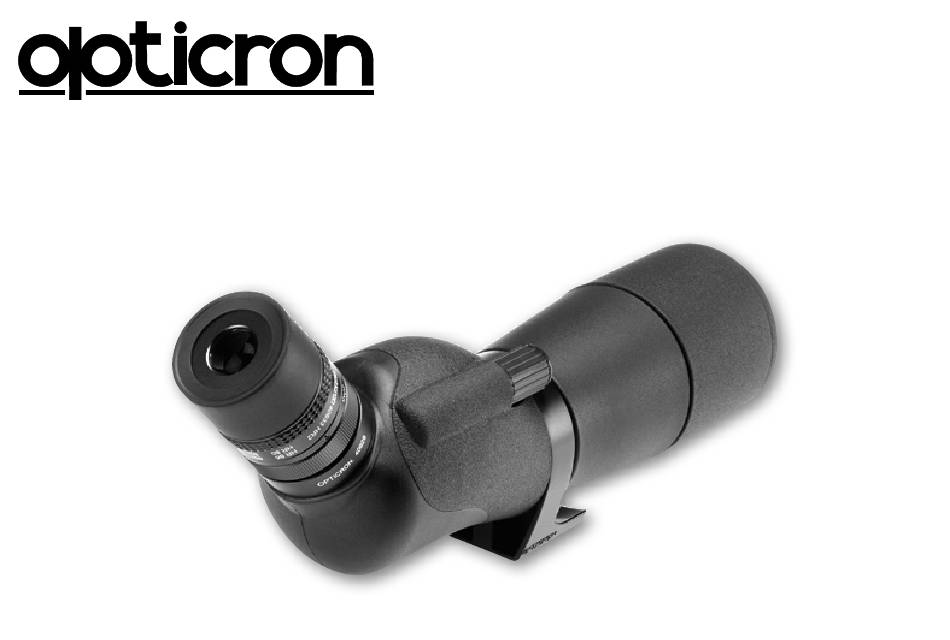

- Page 1 IS R Fieldscopes User Instructions and 10 Year Guarantee Models IS 60 R IS 60 R/45 IS 70 R IS 70 R/45 ISR0217...
- Page 2 Main Features, Specifications & Eyepieces A Interchangeable eyepiece (not included). B Focus wheel. C Tripod sleeve with +/- 90˚ rotation and large footprint tripod adapter socket with 1/4” thread. D Retractable lens hood. Specifications 60/45 70/45 Product Code 41180 41181 40996 40997 OG Dia (mm)
-
Page 3: Getting Started
Eyepieces Eyepieces • SDLv2 • HDF • HR • IS Product Code 40936S 40810S 40831S 40861S 40862S 40930S 40931S 41145S 40918S Magnification 60 15-45x 17xWW 23xWW 15-45x 20xWA 25xWA 16-48x 18-54x Magnification 70 16-48x 18xWW 25xWW 16-48x 21xWA 27xWA 18-54x 20-60x Adapter required 40927S... -
Page 4: Care And Cleaning
Waterproof Cases Stay-on-the-Scope Waterproof in Black Water resistant multi-layer padded cases individually designed to fit each model. Protects instrument while fitted to a tripod and in use. Includes removable end caps and adjustable carry strap. Care & Cleaning To clean outer glass surface of the eyepiece and objective lens, gently remove excess dirt and dust using a compressed air device or blower brush. - Page 5 This is an approximate figure based on 35mm SLR cameras. DSLR/compact system cameras use different sized image sensors compared to 35mm so an equivalent telephoto conversion figure must be calculated separately. For information on push fit photoadapters visit our Digiscoping & Telephotography pages at www.opticron.co.uk Digiscoping with digital compact cameras, camcorders and mobile phones Shooting high magnification photos and video through your fieldscope is possible if you have a suitable camera, camcorder or mobile phone.
- Page 6 Purchase Date: ..............Dealer: ..................................Opticron IS R fieldscopes are of a very high quality both in their performance and construction. We guarantee some parts in these instruments for up to 10 years under the following conditions: In the case of defects attributable to faulty processing or materials, we will assume responsibility for the labour and material costs during the first 5 years after purchase.
- Page 7 Registration If you would like to register your purchase with us please visit www.opticron.co.uk and complete the online Product Registration Form. Alternatively please telephone us during normal working hours on the numbers given. We will need the product name and serial number (if applicable), purchase date and outlet, your name and postcode.
- Page 8 Address: Opticron, Unit 21, Titan Court, Laporte Way, Luton, Bedfordshire, LU4 8EF, UK Phone: +44 (0)1582 726522 Fax: +44 (0)1582 723559 Email: sales@opticron.co.uk...
