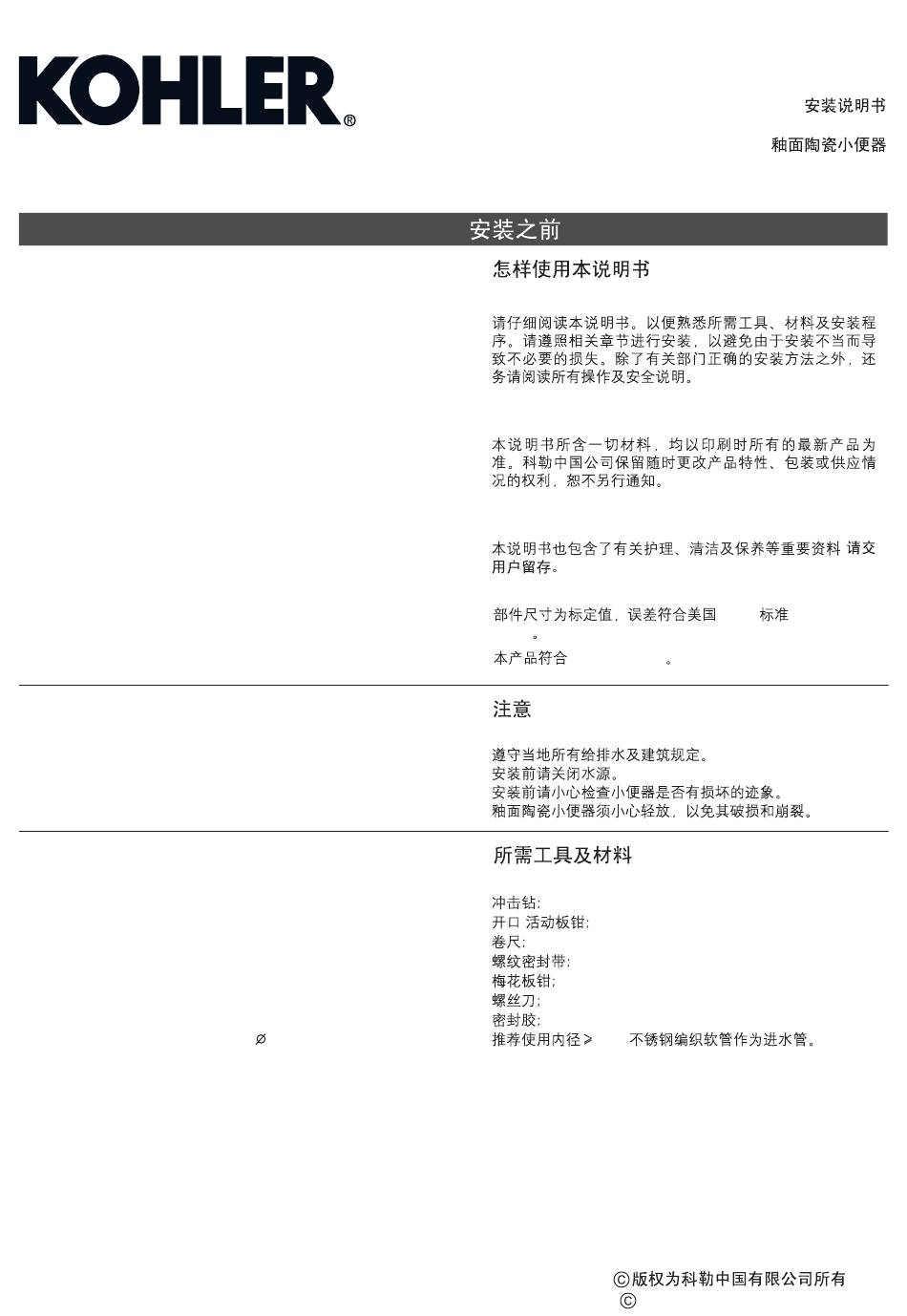

BEFORE YOU BEGIN
BEFORE YOU BEGIN
A. HOW TO USE THESE INSTRUCTIONS
·
Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
·
All information in these instructions is based upon the
latest product information available at the time of
publication. Kohler China reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
·
These instructions contain important care, cleaning, and
warranty information - please leave instructions for the
consumer.
·
Fixture dimensions are nominal and confirm to tolerances
established by ASME Standard (A112.19.2-2013).
·
The product complies with GB 6952-2015.
B. NOTES
·
Observe all local plumbing and building codes.
·
Shut off the water supply.
·
Carefully inspect the new fixture for any sign of damage.
·
Be very careful while shandling vitreous china products.
C. REQUIRED TOOLS AND MATERIALS
·
Drill
·
Open end/adjustable wrenches
·
Tape measure
·
Thread sealant tape
·
Basin Wrench
·
Screwdriver
·
Sealant
·
Recommend the no less than
pipe as inlet.
1389226-T01-A
9mm stainless steel twist
A.
·
·
·
·
2013)
·
GB 6952-2015
B.
·
·
·
·
C.
·
·
/
·
·
·
·
·
·
9mm
-1-
TEND
蒂特
INSTALLATION INSTRUCTIONS
VITREOUS CHINA URINAL
K-20713T-ET
ASME
(A112.19.2-
Copyright Kohler China Ltd., 2019
-
,2019
Advertisement
Related Manuals for Kohler TEND K-20713T-ET
Summary of Contents for Kohler TEND K-20713T-ET
- Page 1 · · All information in these instructions is based upon the latest product information available at the time of publication. Kohler China reserves the right to make changes in product characteristics, packaging, or availability at any time without notice. ·...
- Page 2 549.9 107.1 270.1 610* 121.1* 501.7* Kohler reserves the right to change marked dimensions without prior notice. Fig.1 Notice: a. The dimensions above are just for reference. b. The layout dimensions of water inlet and outlet see installation step C(Install the hook).
-
Page 3: Installation
INSTALLATION A. INSTALL OUTLET CONNECTION (See Fig.2) Ascertain the position for outlet connection according to rough-in dimensions. Connect the outlet connection with the trap way. Insert the gasket into the trap way as shown. Apply sealant on outlet pipe, connect the outlet connection with outlet pipe. NOTE: Fig.2 may be different for different outlet connections. - Page 4 B. INSTALL HOOK (See Fig.3) Drill mounting holes on the wall and install hook. Fix hook on the wall by tightening screws. *+29 Fig.3 C. INSTALL TOP SPUD AND INLET PIPE C. 安装进水管 Install top spud, gasket and nut at top of the urinal. Install 在小便器顶部安装进水螺管，...
- Page 5 D. INSTALL URINAL (See Fig.5) Position the installing hole on the back of the urinal with the hook. Level the outlet connection which is installed together with the strainer and the gasket on the trap way. Then insert the outlet connection into the gasket.(while the outlet connection is inserted, the trap way can be crutched by hard exterded via the gap in the bottom of the urinal to install it decently.) Then fix the urinal on the hook.
-
Page 6: Consumer Responsibilities
CONSUMER RESPONSIBILITIES 1. Urinal is designed for use with portable water. Avoid water that includes a lot of contaminants or with acid/alkali water and impure water. 2. If you live in a hard water area, ensure that the holes in the toilet rim are kept clean to ensure proper bowl flushing, Toilet bowl cleaners should be used at least once a week. - Page 7 TEND 蒂特 SERVICE PARTS PAGE VITREOUS CHINA URINAL K-20713T-ET 53016 滤网 螺母 1360937 Gasket 螺钉 垫片 1360934 Top Spud 滤网接头 进水螺管 Hook 挂钩 垫圈 螺母 软管 垫片 垫圈 1360924 Outlet Connection 出水接头组件 1360925 O-ring O 形圈 喷嘴 1360919 Trapway 排水管组件 (-*) (-**) Color code (-*) or finish (-**) must be specified when ordering.
