Summary of Contents for Stern Engineering SWAN Series

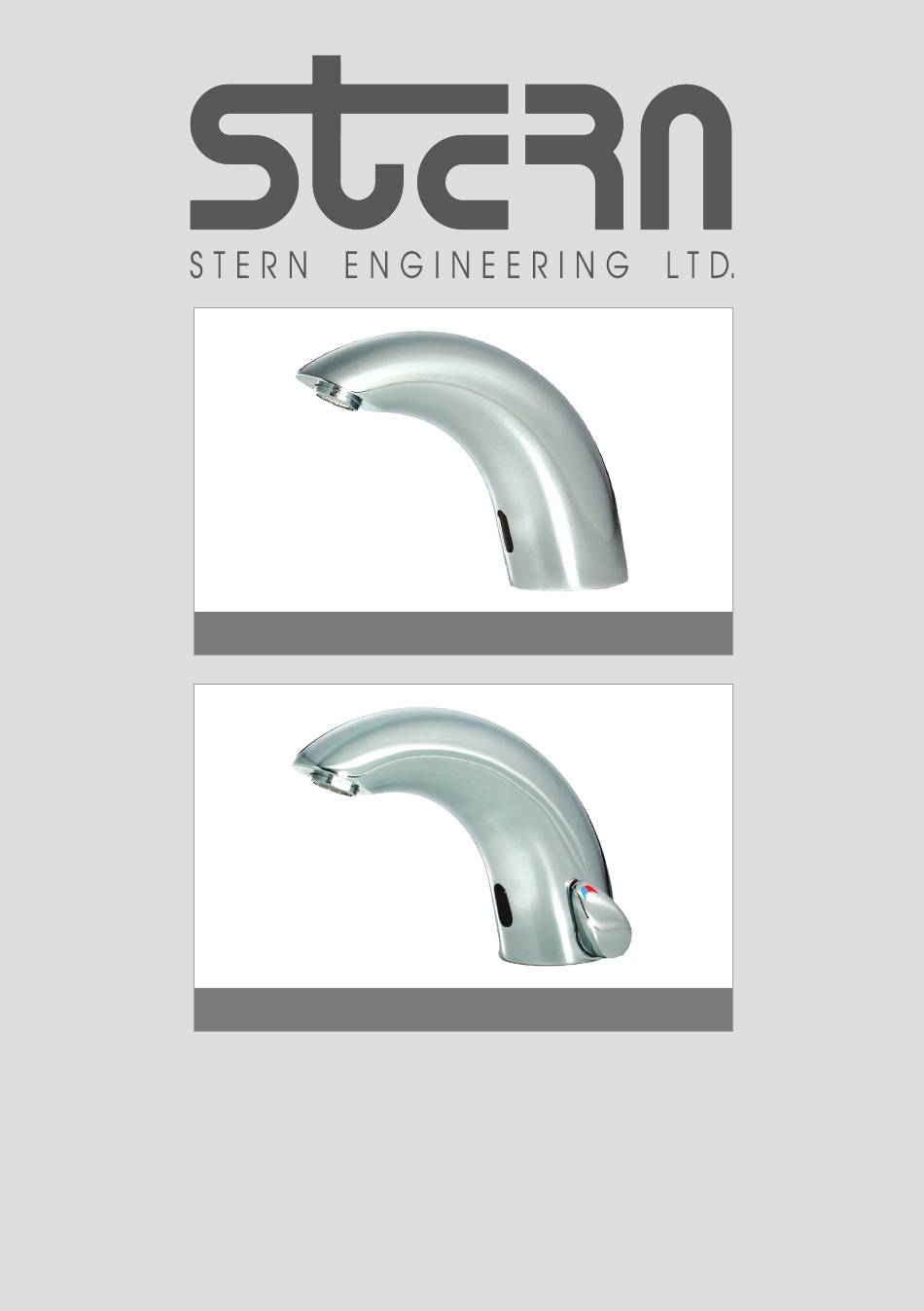

- Page 1 SWAN 1000 AB1953 E L E C T R O N I C L A V AT O R Y F A U C E T SWAN SERIES I NSTALLAT ION A ND MAINT ENA NCE GU IDE I NSTALLAT ION A ND MAINT ENA NCE GU IDE...
-
Page 2: Technical Data
/ 3.15” The information in this document reflects products at the date of printing. Stern Engineering Ltd reserves the right, subject to all applicable laws, at any time, at its sole discretion, and without notice, to discontinue or change the features, designs, materials and other specifications of its products, and to either permanently or temporarily withdraw any of the forgoing from the market. -
Page 3: Pack Contents
PACK CONTENTS PACK CONTENTS SWAN 1010 B/E AB1953 SWAN 1000 B/E AB1953 Familiarize yourself with the part names and confirm that the parts are included. Familiarize yourself with the part names and confirm that the parts are included. 1 x Allen Key 1 x Allen Key 1 x Faucet 1 x Faucet... -
Page 4: Pre-Installation Info
PRE-INSTALLATION INFO FAUCET INSTALLATION STEP 1 – PREPARATION FOR MOUNTING THE FAUCET CHECK CONTENTS Separate all parts from the packaging and check each part with the “Pack contents” section. Pay attention to the different models variations. Shut off the water supply. Make sure all parts are accounted for before discarding any packaging material. - Page 5 FAUCET INSTALLATION FAUCET INSTALLATION STEP 3 – CONNECTING THE WATER SUPPLY Connect the flexible pipe to the water supply. For models with temperature control Remove the protective sticker from the connect the red flexible pipe to the sensor hot water supply and the blue flexible pipe to the cold water supply.
-
Page 6: Settings Adjustment
SETTINGS ADJUSTMENT SETTINGS ADJUSTMENT DETECTION RANGE: Only if necessary, use the remote control to adjust the DETECTION sensor range as follows: DELAY OUT TIME RANGE Press the RANGE button. Wait until a quick flashing of the LED in the sensor eye is perceived. Then, press + to increase the one level and – to reduce it every push will increase or decrease one level. -
Page 7: Battery Replacement
SETTINGS ADJUSTMENT BATTERY REPLACEMENT SWAN 1010 AB 1953/ SWAN 1000 AB 1953 When the battery weakens, the LED indicator light will blink at a constant rate. The bat- tery must be replaced within two weeks. SECURITY TIME: The Security time, prevents continuous flushing of water due to reflections or vandalism. - Page 8 BATTERY REPLACEMENT BATTERY REPLACEMENT SWAN 1010 AB 1953/ SWAN 1000 AB 1953 SWAN 1010 B AB 1953/ SWAN 1000 B AB 1953 When the battery weakens, the red indicator light will blink at a constant rate. The battery Prior to reassembling the electronic unit and the battery, make sure that the o-ring is still must be replaced within two weeks.
-
Page 9: Maintenance
MAINTENANCE SPARE PARTS LIST Filter cleaning instructions Seals and Screws Kit for Swan 1010 models 07210001 This faucet is provided with one / two stainless steel filter(s) preventing foreign particles to enter the lines. If the water flow has decreased, this can be because the filter(s) is/are Seals and Screws Kit for Swan 1000 models 07210029 clogged. -
Page 10: Troubleshooting
Replace battery hands are within the sensor’s If a defect is found in normal use, Y. Stern Engineering Ltd. will, at its discretion, repair, range. provide a replacement part or product, or make appropriate adjustments. Damage caused 2. LED in the 1. - Page 11 777 Passaic Avenue, Clifton NJ,07012, USA Tel: +1-973 773 8011 | Fax: +1-973-779-8768 Toll Free: 1-800-4364410 info@sternfaucets.com | tech@sternfaucets.com 08.2020 015410658-E...
