Summary of Contents for SIGNIFY BROADWAY EA1371

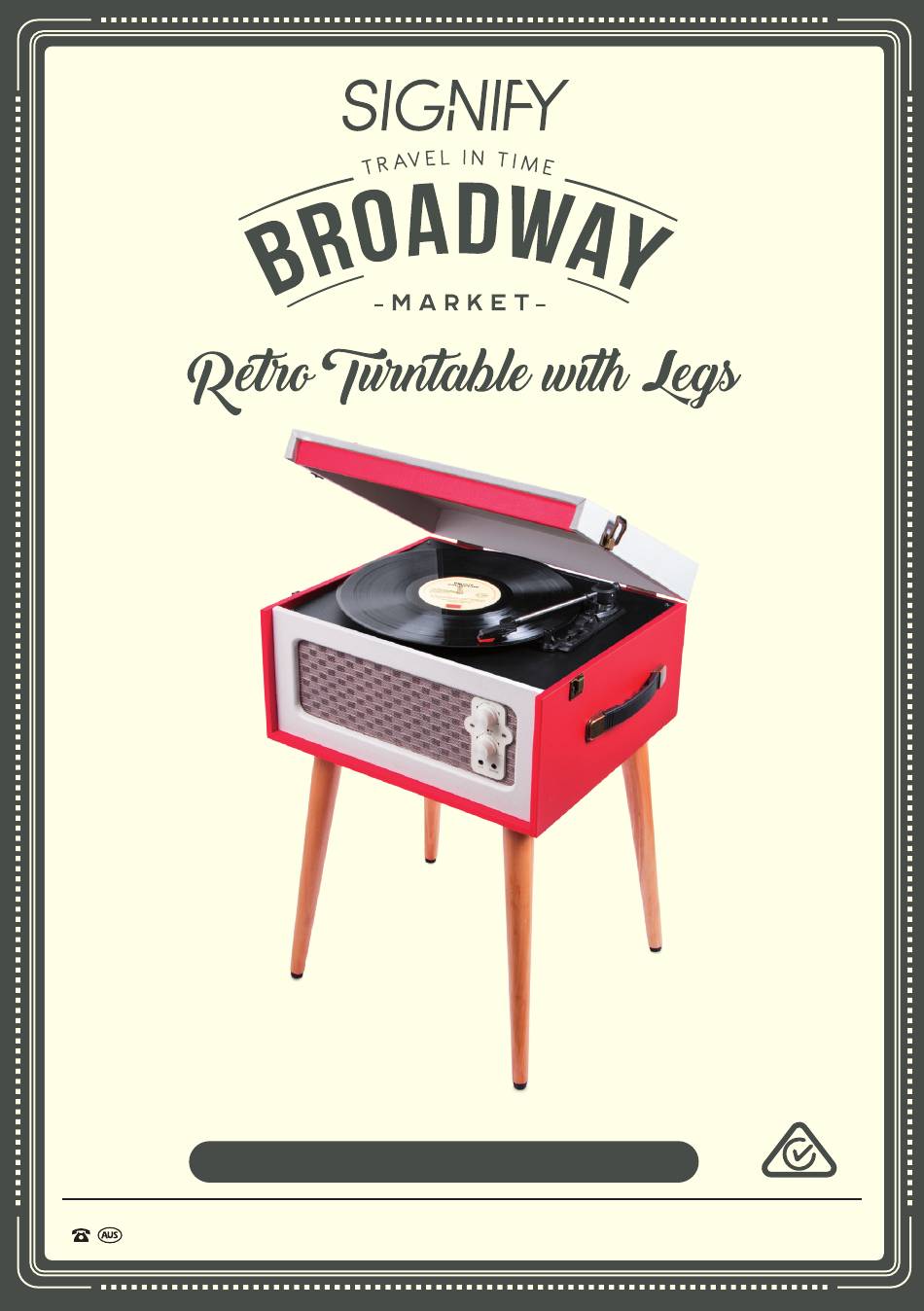

- Page 1 Model Number: EA1371 INSTRUCTION MANUAL AFTER SALES SUPPORT 1300 777 137...
-
Page 2: Welcome
Congratulations on choosing to buy a Signify product. All products brought to you by Signify are manufactured to the highest standards of performance and safety, and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 1 Year Warranty and customer technical support line. -
Page 3: Table Of Contents
Contents Welcome Warranty Details General Information and Safety Instructions Product Overview Front and Side View Turntable Front and Rear Control Panels Getting Started Instructions Handling Vinyl Records Playing Vinyl Records Replacing the Stylus Using the Headphone Input Using the Auxiliary Input Using the RCA Audio Output Controlling the Bass/Treble Bluetooth... -
Page 4: Warranty Details
Retro Turntable with Legs Warranty Details The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion. The benefits conferred by this warranty are in addition to all rights and remedies in respect of the product that the consumer has under the Competition and Consumer Act 2010 and similar state and territory laws. -
Page 5: General Information And Safety Instructions
General Information and Safety Instructions RETAIN FOR FUTURE USE Read this manual thoroughly before first use, even if you are familiar with this type of product. The safety precautions enclosed herein reduce the risk of fire; electric shock and injury when correctly adhere to. - Page 6 General Information and Safety Instructions (cont.) 16. Ensure that power sockets are not overloaded by operating several electrical products that exceed the power supply of the socket. Review the rating label of each electrical product being operated to ensure that they do not exceed the capacity of the power socket. Always turn off and unplug any electrical product that is not being used.
- Page 7 General Information and Safety Instructions (cont.) 30. We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the unit unnecessarily once assembled. 31. For the protection of the Turntable with Legs, we recommend that it is placed on a protected surface during assembly to prevent any damage.
-
Page 8: Product Overview
Product Overview Front and Side View 1. Lock Latches 2. Wooden Legs 3. Dust Cover 4. Turntable 5. Handle (Always remove the legs before using the handle to carry the turntable). 6. Control Panel service@unclebills.com.au AFTER SALES SUPPORT 1300 777 137 MODEL: EA1371 PRODUCT CODE: 63486 11/2018... -
Page 9: Turntable
Product Overview (cont.) Turntable 1. Spindle 2. 45 RPM Adaptor 3. Cue Lever 4. Speed Selection Switch (331/ 3 , 45, 78 RPM) 5. Auto Stop Switch 6. Tone Arm Lock 7. Tone Arm 8. Stylus AFTER SALES SUPPORT service@unclebills.com.au 1300 777 137 MODEL: EA1371 PRODUCT CODE: 63486 11/2018... -
Page 10: Front And Rear Control Panels
Product Overview (cont.) Front and Rear Control Panels 1. Power/Volume Dial 2. LED Power Indicator Light 3. Tone Dial 4. Auxiliary Input 5. Headphone Output 6. RCA Audio Output 7. DC Power Input Included (not pictured): 1x Power Adaptor, 1x Instruction Manual and 1x Warranty Card. service@unclebills.com.au AFTER SALES SUPPORT 1300 777 137... -
Page 11: Getting Started
Getting Started Attaching the Legs The included wooden legs must be attached to the unit before first use. To attach the legs, follow the steps below. Remove the unit from its packaging. 1. Ensure the lock latch on both sides are locking the dust cover into Fig. -
Page 12: Instructions
Instructions Handling Vinyl Records NOTE: Only handle vinyl records with clean hands and hold them by the edge or the label. Do not touch the record grooves. 1. Keep your vinyl records in protective sleeves when not in use to avoid dust and scratches. 2. -
Page 13: Replacing The Stylus
Instructions (cont.) 9. Turn the Power/Volume Dial clockwise to turn the volume up, or turn the Power/Volume Dial anticlockwise to turn the volume down. 10. To stop playing, lift the tone arm and place it back into the armrest. Secure the tone arm once more by engaging the tone arm lock. -
Page 14: Using The Headphone Input
Instructions (cont.) Using the Headphone Input The Turntable with Legs features a 3.5mm headphone input which is located on the front control panel. When headphones or external speakers with a 3.5mm pin are attached to the Turntable with Legs via the headphone input, all sound will be diverted to the headphones or external speakers, and no sound will be played via the unit's inbuilt speakers. -
Page 15: Controlling The Bass/Treble
Instructions (cont.) IMPORTANT: Before playing music/media from the desired device, turn down the volume of the Turntable with Legs to avoid a possible loud output of noise from the speakers. Wait until the music/media is playing, and then turn up the volume. 2. - Page 16 Instructions (cont.) 2. On your Bluetooth enabled device, activate (or turn ON) your Bluetooth function and search ® ® for nearby devices. When the device discovers "EA1371" select and connect to "EA1371". This process should take a few seconds to connect - no pin or password is required. 3.
-
Page 17: Frequently Asked Questions
Frequently Asked Questions Q: Can I use the turntable without attaching the wooden legs? A: No. The metal plates on the bottom of the unit are not parallel with the ground, meaning without the legs, the unit will be extremely unstable. Also, with the exposure of the metal plates, you may risk damaging/scratching the surface that you place the unit on. -
Page 18: Repair And Refurbished Goods Or Parts Notice
Turntable with Legs Repair and Refurbished Goods or Parts Notice Unfortunately, from time to time, faulty products are manufactured which need to be returned to the Supplier for repair. Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games console or files stored on a USB memory stick) during the process of repair, some or all of your stored data may be lost. -
Page 19: Other Useful Information
Other Useful Information Cleaning and Maintenance Before cleaning the Turntable with Legs, ensure the unit is switched off and disconnected from the power source. The Turntable with Legs is likely only to require regular “dusting” to keep it clean. Use a standard duster, or dry soft microfibre cloth to remove the dust from the unit. -
Page 20: Responsible Disposal
Other Useful Information (cont.) Responsible Disposal At the end of its working life, do not throw this appliance out with your household rubbish. Electrical and electronic products contain substances that can have a detrimental effect on the environment and human health if disposed of inappropriately. Observe any local regulations regarding the disposal of electrical consumer goods and dispose of it appropriately for recycling.
