Operating Instruction and safety manual
Residual risks
Even when the tool is used as prescribed it is not possible to eliminate all residual risk factors. The
following hazards may arise in connection with the tool's construction and design:
1. Damage to lungs if an effective dust mask is not worn.
2. Damage to hearing if effective hearing protection is not worn.
3. Health defects resulting from vibration emission if the power tool is being used over longer period of time or
not adequately managed and properly maintained.
4.
Wear eye protection.
1

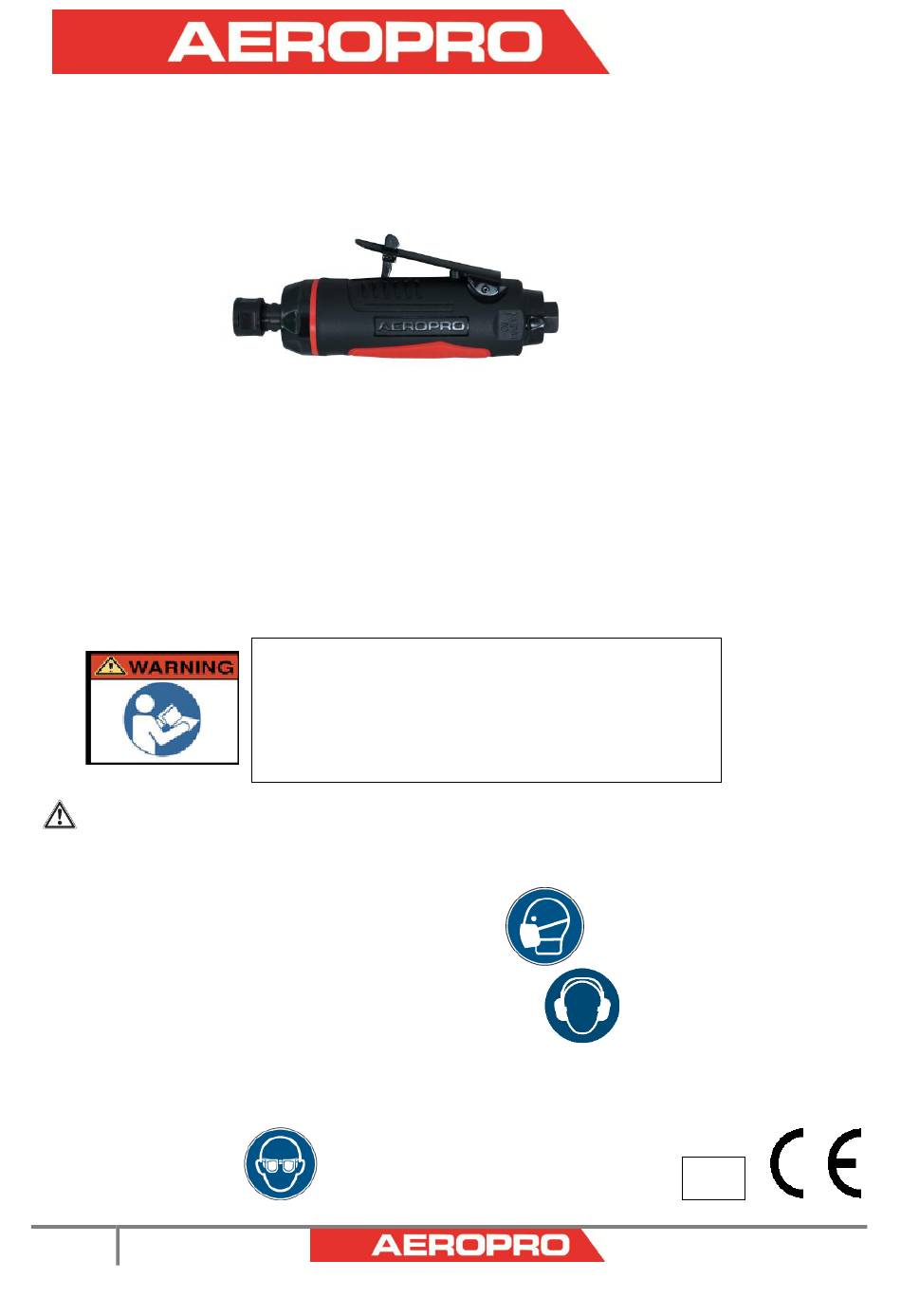

Air Die Grinder 17314
1/4"(6mm) Die Grinder
Model No.: 17314
IMPORTANT:
Upon receipt of the product,
read and follow all safety rules,
operating instructions before first use it.
And retain this manual for future reference.
2014
www.aeroprotools.com
Advertisement
Table of Contents
Related Manuals for Aeropro 17314
Summary of Contents for Aeropro 17314
- Page 1 2. Damage to hearing if effective hearing protection is not worn. 3. Health defects resulting from vibration emission if the power tool is being used over longer period of time or not adequately managed and properly maintained. Wear eye protection. 2014 Air Die Grinder 17314 www.aeroprotools.com...
-
Page 2: Technical Data
- Avoid contact with the rotating spindle and inserted tool to prevent cutting of hands and other body parts. - Use of the tool can expose the operator's hands to hazards, including cuts and abrasions and heat. Wear suitable gloves to protect hands. Air Die Grinder 17314 www.aeroprotools.com... -
Page 3: Repetitive Motions Hazards
- The die grinder is not intended for use in potentially explosive atmospheres and is not insulated against contact with electric power. - Ensure that there are no electrical cables, gas pipes, etc., which can cause a hazard if damaged by use of the tool. Air Die Grinder 17314 www.aeroprotools.com... -
Page 4: Dust And Fume Hazards
- Hold the tool with a light but safe grip, taking account of the required hand reaction forces, because the risk from vibration is generally greater when the grip force is higher. - An improperly mounted or damaged inserted tool can cause excessive vibration levels. Air Die Grinder 17314 www.aeroprotools.com... -
Page 5: Additional Safety Instructions For Pneumatic Power Tools
6. Line pressure should be increased to compensate for unusually long air hoses (over 8 meters). The hose diameter should be 3/8” I.D. 7. Keep hose away from heat, oil and sharp edges. Check hose for wear, and make certain that all connections are secure. Air Die Grinder 17314 www.aeroprotools.com... -
Page 6: Loading And Operation
90PSI.Squeeze trigger gently. ※ Maintenance WARNING: Disconnect tool from air supply before changing accessories, servicing or performing maintenance. Replace or repair damaged parts. Use genuine parts only. Non-authorised parts may be dangerous Air Die Grinder 17314 www.aeroprotools.com... -
Page 7: Troubleshooting
■ Disconnect supply. Free motor by rotating drive shank manually where applicable ■ „O‟ rings throttle valve ■ Replace „O‟ ring. Tool will not shut off dislodged from seat inlet valve. Note: Repairs should be carried out by a qualified person. Air Die Grinder 17314 www.aeroprotools.com... -
Page 8: Exploding View
Front plate O-ring Bearing O-ring Housing Steel ball Lockage pin spring Bearing Lockage ring Regulator End plate Front sheath O-ring Bearing Chuck seat O-ring Cylinder Chuck Adjusting nut Rotor Chuck nut Trigger Rotor blade Rubber ring Air Die Grinder 17314 www.aeroprotools.com...
