Bellman & Symfon Vibio - Security System Manual

What you'll need

  • A mobile phone with iOS11 /Android 4.4 or later.
  • An USB power adapter

What's in the box

What's in the box

  1. Charging cable

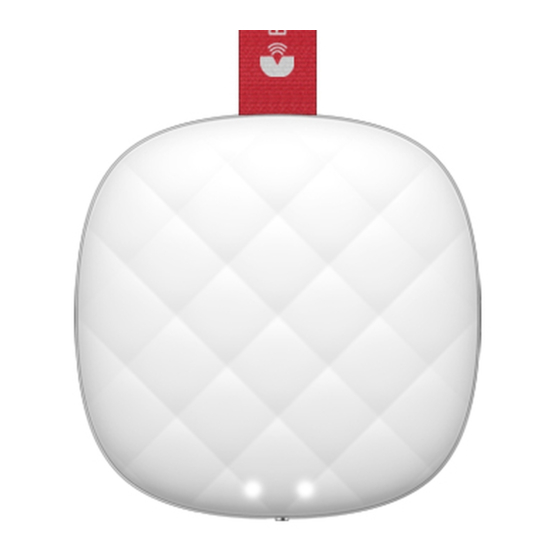

  2. Vibio bed shaker

Look for the blinking eyes

Look for the blinking eyes

  • White means it's activated by an alarm or communicating with your mobile.
  • Blue means it's ready for pairing.
  • Green means it's charging.
  • Yellow means you have an incoming call or message.
  • Red means the battery level is low.

Installing Vibio

Installing Vibio

  1. Power it up
    Connect the charging cable to your Vibio and plug the connector into a USB power adapter or a USB computer outlet.
  2. Turn it on
    Slide the On/Off switch to the right and keep Vibio close to your mobile.
  3. Install the app

    Download the Vibio app from the App Store® or Google Play™ and follow the setup instructions.
    www.apple.com
    play.google.com

Using the app

Using the app

Managing alarms

Add. Tap the plus button to add a new alarm.

Edit. Tap the pencil button to edit an alarm.

Delete. Tap the minus button to delete an alarm.

On/Off. Tap the ON or OFF button to enable or disable an alarm.

Monitoring Vibio

Connection. The Vibio icon shows the connection status.

Battery. The battery icon shows the current battery level.

Learning more

Help. Tap the Menu > Help to learn more about the app.

Troubleshooting

If Try this
The LEDs are blinking in red The battery level is low. Charge Vibio using the supplied cable.
The LEDs don't light up The batteries are depleted. Charge Vibio for about 1.5 hour.
Vibio doesn't connect to my mobile Start by checking the Bluetooth connection on the app home screen. If the Vibio icon is red and crossed out, try the following:
  1. Move within range. Move your mobile closer to Vibio.
  2. Turn Bluetooth Off and On. Swipe to open the Control Center / Quick Settings Panel on your mobile and tap the Bluetooth icon.
If it still doesn't work, you need to reset and reconnect the Vibio bed shaker and app manually. Try the following:
  1. Force-quit the app. Note that it's not enough just to close it.
  2. Disconnect Vibio. Go to Settings > Bluetooth. Tap / and Forget This Device to disconnect "Vibio". Make sure Bluetooth is on.
  3. Reset Vibio. Pull and hold the strap until the LED starts to flicker. Release and pull it again until the LEDs starts to breathe in blue.
  4. Setup Vibio. Start the Vibio app again and follow the instructions.

Intended use

Personal vibrating alarm device to be used with a mobile phone application for wakeup.

Power and Battery

Battery power: 1x3.7 V AA Lithium-ion
Power consumption: Active with strong vibration: < 1000 mA, Idle: < 100 μA
Operating time: Up to 10 days / charge
Charging time: Up to 1.5 hour @ 500mA
Charging current: Up to 500 mA, 5V DC

Compability

iOS11 / Android 4.4 and later, iPhone 5s and later / Modern Android devices

Dimensions and weight

Size: 27 x 94 x 94 cm, 1.1 x 3.7 x 3.7"
Weight: 153 g, 5.4 oz.

Frequency and coverage

Bluetooth frequency: 2402 – 2480 MHz
Output power: Max 2.5mW (4dBm)
Coverage: : Up to 30 m, 33 yd, free field.
Connectivity: Bluetooth 4.2

Cables and connections

Cable length: 1 m, 3.9"
Contacts: USB type A to USB Micro-B

Maintenance and cleaning

Maintenance free. Clean with a dry cloth.
Do not use household cleaners, aerosol sprays, alcohol or abrasives.

Bellman & Symfon Södra Långebergsgatan 30, 436 32 Askim, Sweden. Phone +46 31 68 28 20 E-mail info@bellman.com © and TM 2019, Bellman & Symfon AB, all rights reserved.
