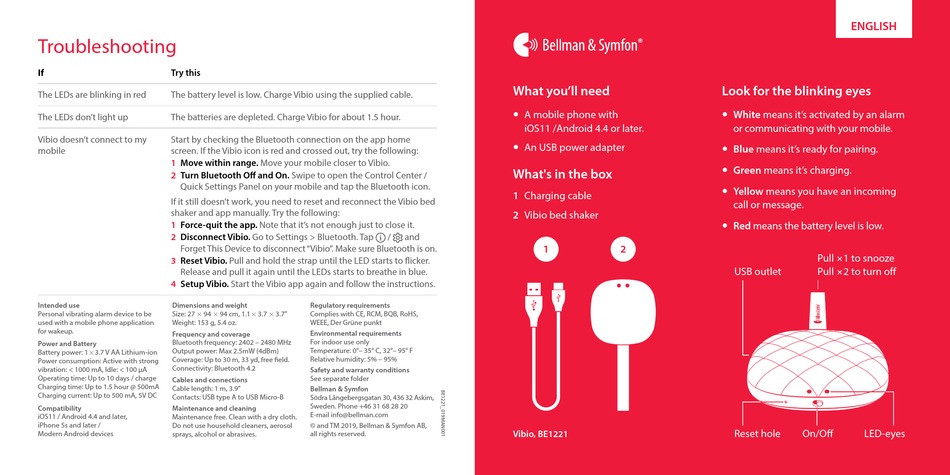

Bellman & Symfon Vibio User Manual

Troubleshooting

If Try this
The LEDs are blinking in red The battery level is low. Charge Vibio using the supplied cable.
The LEDs don't light up The batteries are depleted. Charge Vibio for about 1.5 hour.
Vibio doesn't connect to my Start by checking the Bluetooth connection on the app home
mobile screen. If the Vibio icon is red and crossed out, try the following:
1 Move within range.
2 Turn Bluetooth Off and On.
Quick Settings Panel on your mobile and tap the Bluetooth icon.
If it still doesn't work, you need to reset and reconnect the Vibio bed
shaker and app manually. Try the following:
1 Force-quit the app.
2 Disconnect Vibio.
Forget This Device to disconnect "Vibio". Make sure Bluetooth is on.
3 Reset Vibio.
Release and pull it again until the LEDs starts to breathe in blue.
4 Setup Vibio.

Intended use

Dimensions and weight

Personal vibrating alarm device to be Size: 27  94  94 cm, 1.1  3.7  3.7"
used with a mobile phone application Weight: 153 g, 5.4 oz.
for wakeup.

Frequency and coverage

Bluetooth frequency: 2402 – 2480 MHz

Power and Battery

Output power: Max 2.5mW (4dBm)
Battery power: 1  3.7 V AA Lithium-ion
Coverage: Up to 30 m, 33 yd, free field.
Power consumption: Active with strong
Connectivity: Bluetooth 4.2
vibration: < 1000 mA, Idle: < 100 μA
Operating time: Up to 10 days / charge

Cables and connections

Charging time: Up to 1.5 hour @ 500mA
Cable length: 1 m, 3.9"
Charging current: Up to 500 mA, 5V DC
Contacts: USB type A to USB Micro-B

Compatibility

Maintenance and cleaning

iOS11 / Android 4.4 and later, Maintenance free. Clean with a dry cloth.
iPhone 5s and later /
Do not use household cleaners, aerosol
Modern Android devices sprays, alcohol or abrasives.
Move your mobile closer to Vibio.
Swipe to open the Control Center /
Note that it's not enough just to close it.
Go to Settings > Bluetooth. Tap / and
Pull and hold the strap until the LED starts to flicker.
Start the Vibio app again and follow the instructions.

Regulatory requirements

Complies with CE, RCM, BQB, RoHS,
WEEE, Der Grüne punkt

Environmental requirements

For indoor use only
Temperature: 0°– 35° C, 32°– 95° F
Relative humidity: 5% – 95%

Safety and warranty conditions

See separate folder
Bellman & Symfon
Södra Långebergsgatan 30, 436 32 Askim,
Sweden. Phone +46 31 68 28 20
E-mail info@bellman.com
© and TM 2019, Bellman & Symfon AB,
all rights reserved.
What you'll need
 A mobile phone with
iOS11 /Android 4.4 or later.
 An USB power adapter

What's in the box

1 Charging cable
2 Vibio bed shaker
1 2
Vibio, BE1221
ENGLISH
Look for the blinking eyes
 White means it's activated by an alarm
or communicating with your mobile.
 Blue means it's ready for pairing.
 Green means it's charging.
 Yellow means you have an incoming
call or message.
 Red means the battery level is low.

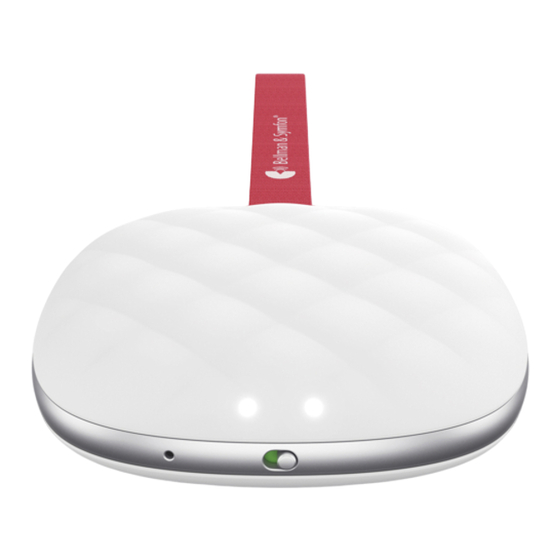

Pull 1 to snooze

USB outlet Pull 2 to turn off

Reset hole On/Off LED-eyes
