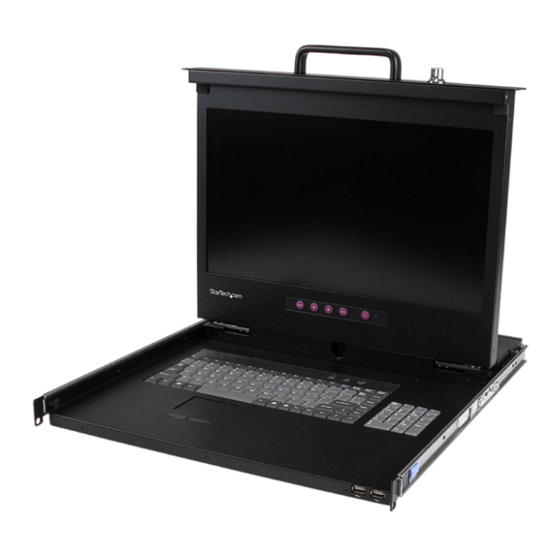

1U 17in 1080p LCD Rack Console with Front
USB Hub
RACKCONS17HD
RKCONS17HDxx
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 01/22/2015
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com RKCONS17HD Series
Summary of Contents for StarTech.com RKCONS17HD Series
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 01/22/2015...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Product Overview ..................1 Front View ..............................1 Rear View ..............................1 Introduction ....................2 Packaging Contents ..........................2 Front Panel Controls ..........................3 Installation .....................3 Rail Installation A ............................4 Rail Installation B ............................5 Rail Installation C ............................8 Console Installation ................12 PC / Server Connection ........................... -
Page 4: Product Overview
Product Overview Top Handle Front View Key Lock Menu Buttons USB 2.0 Hub Ports Rear View USB Hub PC PS/2 - USB Connection Selector Switch Modular KVM DC Jack PC/KVM Dock Port Connections Instruction Manual... -
Page 5: Introduction
Introduction Packaging Contents • 1 x 1U Rack Console • 1 x Set, Mounting Rails • 2 x Extended Brackets • 2 x Short Brackets • 2 x Short Bracket Attachments • 2 x Keys • 1 x 6ft (1.8m) PS/2 VGA KVM Cable •... -
Page 6: Front Panel Controls
Front Panel Controls The OSD (On-screen display) offers many different video, positioning and language options. Use the table below to navigate through the menus and change settings as needed. Controls Description Soft power on/off button. Adjacent LED is lit when on. Auto-synchronize and scale down display to any valid Auto factory preset timings. -
Page 7: Rail Installation A
Rail Installation A 1. Slide the rail outward until two screws appear. rail two screws 2. Loosen (not remove) the seven screws shown and adjust the rail to fit your rack. 3. Secure both the front and rear brackets to your rack using the appropriate screws / nuts for your rack (not included). -
Page 8: Rail Installation B
4. Tighten the seven screws loosened in Step 2. 5. Repeat the above steps for the other side. Rail Installation B 1. Slide the rail outward until two screws appear. rail two screws 2. Remove the seven screws shown. Instruction Manual... - Page 9 3. Remove the two original brackets from the rail. original bracket original bracket 4. Install the Short Bracket to the rail as shown. Instruction Manual...
- Page 10 short bracket 5. Add the Short Bracket Attachment piece to the rail and use four screws to secure them to the rail (don’t fully tighten). bracket attachment short bracket 6. Secure both the front and rear brackets to your rack using the appropriate screws / nuts for your rack (not included).
-
Page 11: Rail Installation C
7. Tighten the four screws installed in Step 5. 8. Repeat the above steps on the other side. Rail Installation C 1. Slide the rail outward until two screws appear. rail two screws 2. Loosen (not remove) the seven screws shown. Instruction Manual... - Page 12 3. Remove the six screws holding the rear bracket. 4. Remove the rear bracket from the rail. original bracket 5. Add the Extended bracket to the rail, then adjust the Extended Bracket to fit your cabinet. Install three of the included M4x5 Screws (don’t fully tighten) to secure the bracket in place.
- Page 13 extended bracket 6. Secure both the front and rear brackets to your rack using the appropriate screws / nuts for your rack (not included). 7. Tighten the seven screws loosened in step 2, and the three installed in Step 5. Instruction Manual...
- Page 14 8. Repeat the above steps on the other side. Instruction Manual...
-
Page 15: Console Installation
Console Installation Once the rails have been installed into your rack using one of the above procedures and all loosened screws have been tightened, use the following instructions to install the console into the rack. 1. Push console into rails. 2. -
Page 16: Pc / Server Connection
3. Install three of the included #6-32x6 Flat Screws into the rear of the console on both sides. Completed installation: PC / Server Connection 1. Turn off the PC / Server you are connecting to the console. 2. Using one of the included cable sets, connect the appropriate video (VGA / DVI) connector to the video output of your PC / Server. -
Page 17: Connecting To A Kvm Switch
4. Connect the USB Hub connector using one of the included USB A-A cables to the USB connector on your server / KVM switch to enable the front USB hub ports and fingerprint reader (optional). 5. Connect the AC to DC power adapter to the power inlet on the console and then to a power outlet. -
Page 18: Specifications
Specifications Display Size 17.3” Panel Type Active Matrix TFT LED Maximum Screen Resolution 1920x1080 (Full HD) Supported Platforms USB or PS/2 Server / KVM Video Type DVI or VGA Response Time Contrast Ratio 650:1 Brightness 300cd/m² Viewing Angle 140° (H), 120° (V) Pixel Pitch 0.198 x 0.198 mm Keyboard/Mouse... -
Page 19: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 20 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
