Installation, Operation and
Maintenance Manual
ScaleStop Commercial Systems
Chemical Free, Salt Free Scale Prevention
NSS-1465C
NSS-1665C
next filtration technologies, inc.
6542 Hypoluxo Road, Suite 362
Lake Worth, FL 33467
(800) 783-0310
email: info@nextfiltration.com
web: www.nextfiltration.com
© 2006-2007 next filtration technologies inc.
Advertisement
Related Manuals for Next NSS-1465C
Summary of Contents for Next NSS-1465C

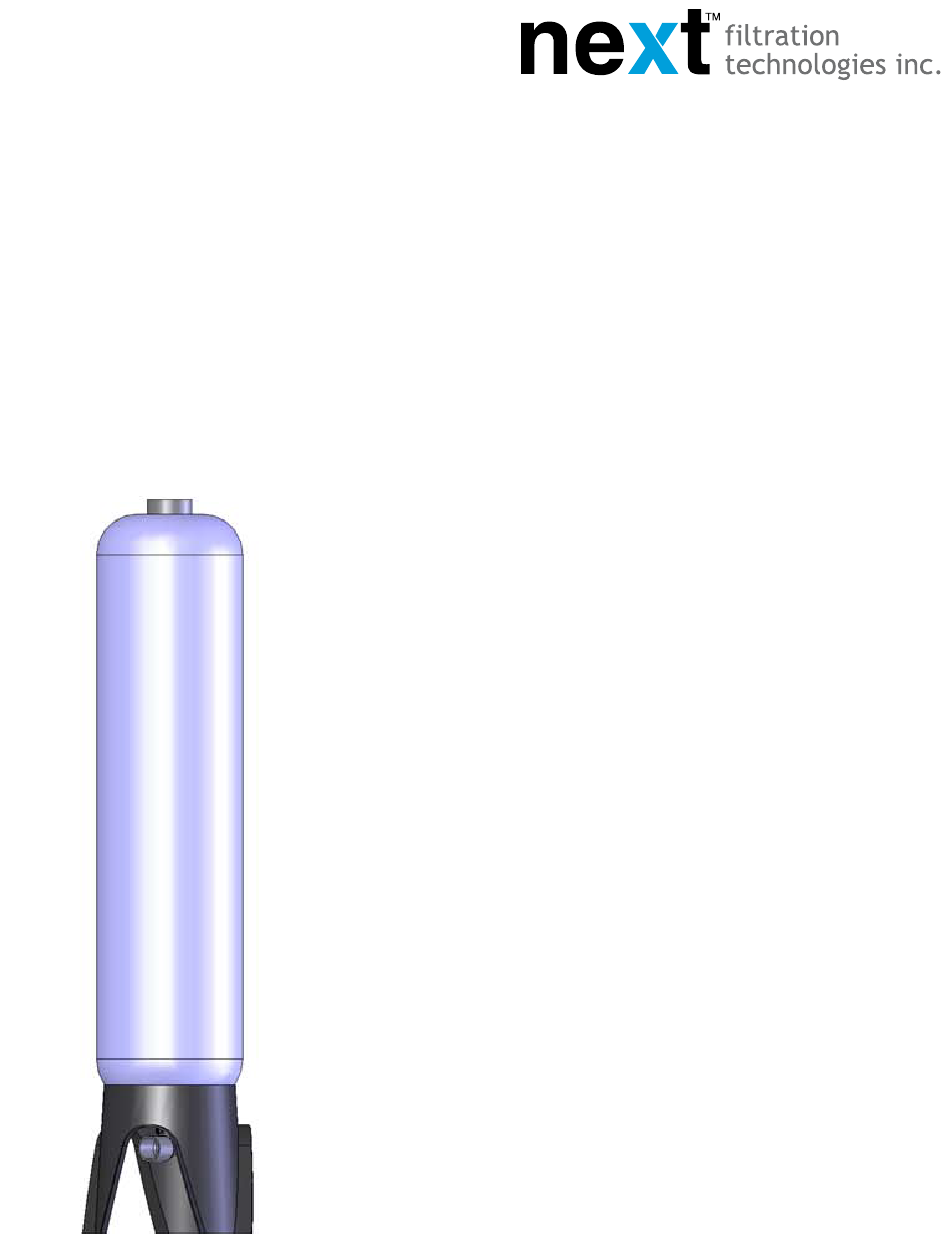

- Page 1 Installation, Operation and Maintenance Manual ScaleStop Commercial Systems Chemical Free, Salt Free Scale Prevention NSS-1465C NSS-1665C next filtration technologies, inc. 6542 Hypoluxo Road, Suite 362 Lake Worth, FL 33467 (800) 783-0310 email: info@nextfiltration.com web: www.nextfiltration.com © 2006-2007 next filtration technologies inc.
-
Page 2: Table Of Contents
Table of Contents Introduction ..................3 System Overview ................4 System Specifications ............... 5 Cautions .................... 7 Notes to the Installer ................7 Installation and Start-Up ..............8 & 9 Warranty .................... 10 & 11 © 2006-2007 next filtration technologies inc. document:NSS-14-16-CMML-IOM.pdf... -
Page 3: Introduction
Scalestop 14 & 16” Systems Introduction The next-ScaleStop system provides protection from scale formation on internal and external plumb- ing surfaces. The ScaleStop system can be installed at the point of entry to a building to treat both hot and cold water, or it can be located directly before a water heater, boiler, or other water using device that requires protection from hard water. -
Page 4: System Overview
Installation, Operation and Maintenance Manual Scalestop 14 & 16” Systems System Overview Outlet - 2” PVC socket Outlet Screen Media Tank Inlet Screen/ Diffuser 2” Union (socket) Inlet - 2” PVC socket 2” Elbow (street) © 2006-2007 next filtration technologies inc. document:NSS-14-16-CMML-IOM.pdf... -
Page 5: System Specifications
Installation, Operation and Maintenance Manual Scalestop 14 & 16” Systems Equipment Specifications next-ScaleStop systems are complete, self-contained, loaded with media and ready to use. A simple inlet and outlet connection is all that is required for installation. Please review operating pressures, temperatures and water chemistry limitations to ensure compatiblity. Specifications Inlet Connection 2” PVC Union with Socket. Outlet Connection 2” PVC Socket... - Page 6 1. ScaleStop must be the last stage in the treatment chain. Do not install any filters after ScaleStop or before any devices for which scale prevention is required. POU filters, e.g. carbon or RO are exempt from this requirement. 2. Do not apply phosphate or any other antiscalant either before or after ScaleStop. © 2006-2007 next filtration technologies inc. document:NSS-14-16-CMML-IOM.pdf...
-
Page 7: Cautions
• The system has no underbed so you can tip the system over without any fear of upsetting the me- dia. This makes transportation and installation much easier than conventional systems. • Because the ScaleStop system operates in the UpFlow mode, the tank connections are opposite of what you’re used to. • Please see the “important note about iron, manganese and copper” above. • Please see the note about “Using ScaleStop with other water treatment equipment” on the previ- ous page. © 2006-2007 next filtration technologies inc. document:NSS-14-16-CMML-IOM.pdf... -
Page 8: Installation And Start-Up
Include sample/drain ports with hose- bibb connections on the inlet and outlet piping to properly supported piping. facilitate startup and service. © 2006-2007 next filtration technologies inc. document:NSS-14-16-CMML-IOM.pdf... - Page 9 Open the inlet and outlet valves on the system. Transfer the bypass valves from Bypass to the Service position. Open a nearby faucet downstream from the ScaleStop system to relieve any air. Check for leaks. Repair as needed. The system is now ready for service © 2006-2007 next filtration technologies inc. document:NSS-14-16-CMML-IOM.pdf...
-
Page 10: Warranty
6. Information, including model number, serial number, and date of installation, must be provided for any claims pertaining to equipment in warranty. 7. Defective parts are subject to inspection by either Next Filtration Technologies, Inc. or any autho- rized representative before final commitment of warranty adjustment is made. - Page 11 At Next Filtration we support your rights as a consumer. We hope you will take the time to fill out the warranty registration below in order to insure that we have documentation showing that you have purchased the system and that a qualified technician installed it.
