The on-board EEPROM U5 should enable automatic board detection and auto-configuration of the software, but if the
user wishes to change the settings, they can easily do so.
From the Configure menu in the toolbar, uncheck "Autodetect Device". The default settings for DC1298 are shown in
Figure 2.

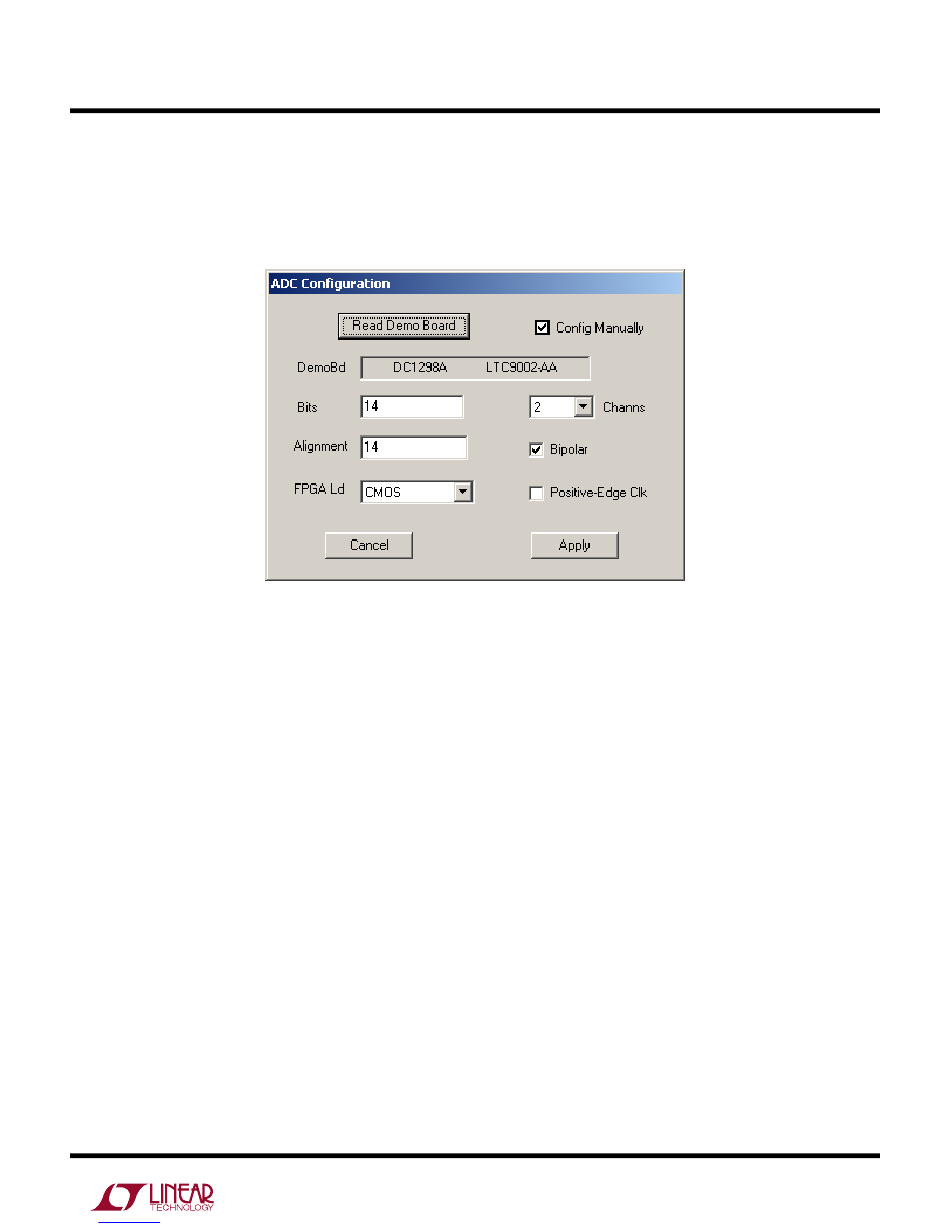

Figure 2. Entering the correct device information for your ADC. Select the correct parameters for the DC1298. Under normal
conditions, PScope should automatically recognize the board and adjust the software settings accordingly.
