Iridex PASCAL Quick Start Manual

Iridex PASCAL (532/577)

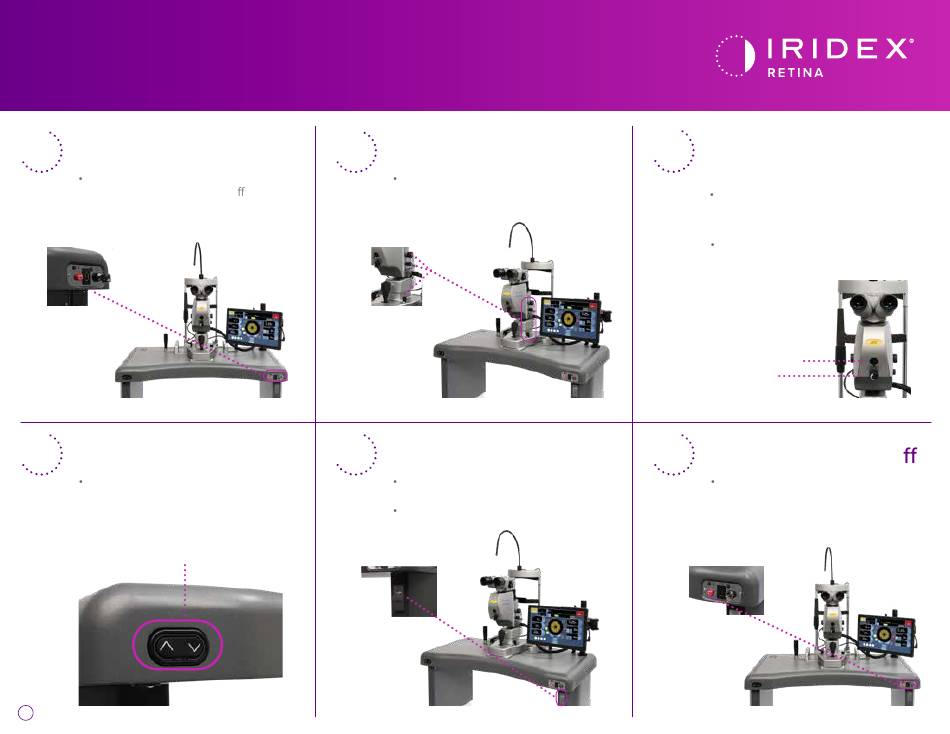

Quick Start Guide
Power On
1
Locate the key switch, insert key
and turn clockwise from o to on
Table Adjustment
4
Raise PASCAL table up or down
with arrow button on left side
of the table
Height Adjustment Controls
1
Slit Lamp Illumination
2
Adjust slit lamp illumination
intensity, width and height
Connect LIO
5
Locate the single functional
LIO port
Slide LIO Port cover down to
expose LIO port
Slit Lamp Controls
3
Micromanipulator
Adjusts the aiming beam for both
single spot and patterns
Power Knob
Allows surgeon to easily adjust
laser power without sitting back
from binoculars
Micromanipulator
Power Knob
Emergency Shut-o
6
Press the red button on
the front of the laser console to
quickly cease laser function
