HeaterMate HY02TP - Plug-in Room Temperature Controller Quick Start Manual

QUICK START-UP GUIDE

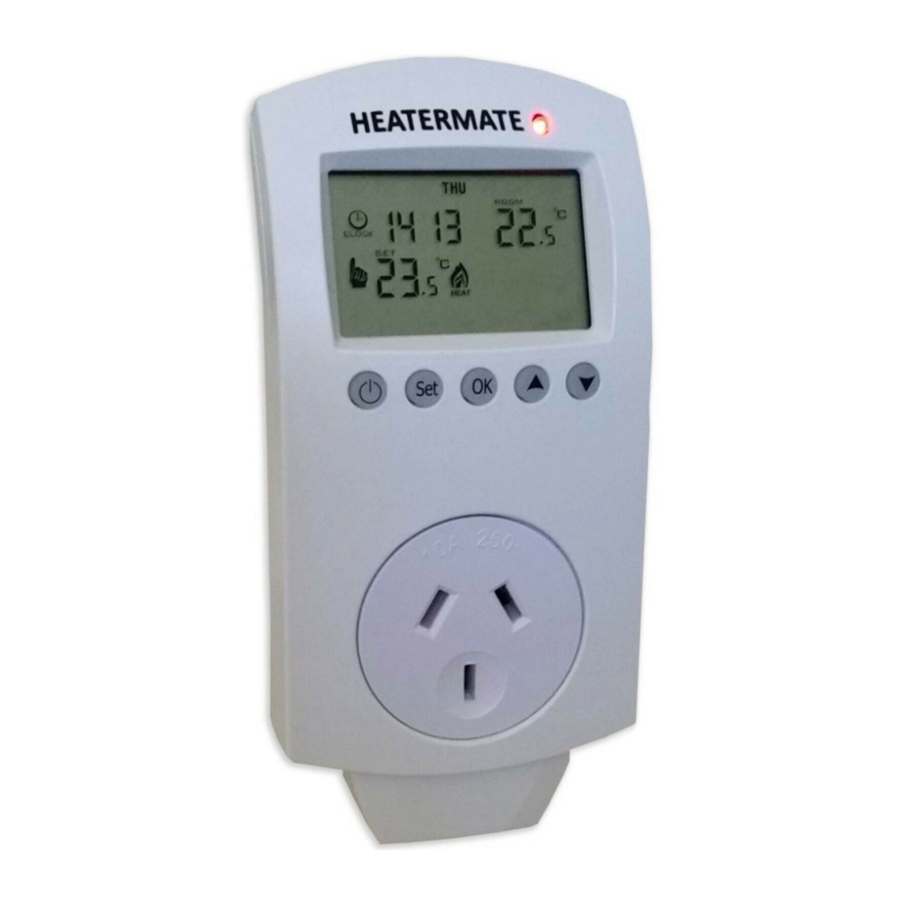

Plug HEATERMATE into power point – a display showing current ROOM temperature and SET temperature will come up. By pressing Up or Down buttons select your desired SET temperature. Plug your heater into Heatermate. If child lock is activated press/hold Down button for 3 seconds then release to unlock.

BUTTONS EXPLAINED

NO.	Symbols	Explanation
1		Power ON/OFF
2		Short press to switch between Manual and Automatic Modes
3		Press to Enter/Confirm
4		Increase (Up) Button
5		Decrease (Down) Button
6	Indicator	Light is ON -- power to heater is ON; light is OFF -- power to heater is OFF.

DISPLAY SYMBLES EXPLAINED

NO.	symbols	Explanation
1		Automatic control mode (manual control "" is not showing)
2		Manual control mode (automatic control " " is not showing)
3		Heating mode; "" is displayed when power to heater is ON
4		Cooling mode; "" is displayed when power to air conditioner or fan is ON
5		6 periods programmable icon
8		Room temperature
9		Child lock: activated automatically after 10 minutes of inactivity. Press/hold Down button ""for 3 seconds then release to unlock. Repeat the same procedure to lock.
10		Ventilation mode – turns heater off for a specified period of time during room ventilation (opening windows) when room temperature drops below a specified temperature.
11		Clock setting icon

DISPLAY OVERVIEW

1. Operation - Heating
   Heatermate will turn your heater ON when ROOM temperature drops 1 degree below SET temperature and will turn your heater OFF when ROOM temperature rises 1 degree above SET temperature. This 2 degrees temperature differential (which comes as default) can be increased or reduced based on your preference – please refer to Section 6- Factory Settings. Smaller differential will lead to smaller room temperature fluctuations, but the heater will come ON/OFF more frequently and vice versa.
2. Clock Setting
   Press/hold "" for 3 seconds then release to enter into setting screen. "" icon is flashing. Press "" to enter into clock setting mode which displays minute, hour and day of the week. Minute is flashing. Press " " or "" to set minutes then press "" to save and move to hours. Set hours and day of the week in similar manner.
3. Timer Function
   The Timer function is designed to enable customer to switch Heatermate ON for one fixed time period every day defined by ON and OFF times. Outside of this time period Heatermate will be in OFF state (nothing will be showing on its display).

To set Timer press/hold "" for 3 seconds then release to enter into setting screen. Press""to select "will flash)

Press "" or "" to set ON time. Press"" to save then press""to select "" and set OFF time. To disable Timer function set both ON and OFF times to 00.00 (comes as default).

Example: Set Timer for heater to come ON at 10pm every night, maintain 21.0 degrees temperature and turn OFF at 7am.

1. Set ON time to 22:00 and OFF time to 08:00 by following above steps;
2. Make sure the device is in Manual mode i.e. that hand symbol is showing next to SET temperature. If not, press SET button once to switch to Manual mode;
3. Set the SET temperature to 21.0 degrees C by pressing UP/Down buttons. You can now leave your Heatermate and it will do the job.

NB: The Timer ON/OFF times, once set, will apply to both Manual and Automatic Modes

Explanation

Screen

Press/hold " " for 3 seconds then release - screen will display (6 periods for every week day) and week days: "". First period will be flashing -press "" or "" to adjust temperature setting temperature then press " " to adjust time setting. Press " "to go to the next period and so on for all 6 periods for week days. Now press "" to go to weekend programming with 2 periods for "" and set temperatures and times in the same way as for week days. . Press " " when finished. Please refer to the table below for default values for different periods.

5. Factory Programmed Periods and Settings

Period		Icon	Default Time	Default Temperature
Working Day	1		06:00	20ºC
	2		08:00	15ºC
	3		11:30	15ºC
	4		12:30	15ºC
	5		17:30	20ºC
	6		22:00	15ºC
Weekend	1		08:00	20ºC
	2		23:00	15ºC

Example: Set the heater to come ON at 7pm, maintain room temperature at 20 degrees until 7am, then turn OFF until 1pm, then at 1 pm to come ON and maintain 22 degrees temperature until 2.30pm, then turn OFF and come ON at 7pm (as above) and so on, during weekdays:

1. Set up Period 1 temperature to well below the typical room temperature e.g. to 10 degrees and Period 1 start time to 07:00;
2. Move to period 2 and set its temperature also to 10 degrees and leave its start time as default at 08:00
3. Repeat the same for period 3
4. Move on to period 4 and set its temperature to 22 degrees and its start time to 13.00;
5. Move on to Period 5 and set its temperature to 10 degrees and its start time as 14.30
6. Move on to Period 6 and set its temperature to 20 degrees and its start time to 19.00;
7. Make sure the Timer function is disabled – 00.00 is set for both ON and OFF times
8. Make sure Heatermate is in Automatic mode - symbol is showing next to SET temperature. If not, press SET button once to switch to Automatic mode. You can now leave your Heatermate and it will do the job.

Troubleshooting: If you lost your Heatermate functionality - please return it to its factory settings (#10 in the above table).

TECHNICAL SPECIFICATIONS

Operating Voltage: 240V, 50HZ

Temperature Setting Range: 1ºC - 70ºC

Max Load: 10A, 2400W (resistive)

Self-consumption Power: <0.3W

Temperature Measurement Precision: ±1ºC

Temperature Sensor: NTC

NB: Suitable for use with heaters and air conditioners which can automatically restart after power reconnection

WARRANTY: This product comes with 2 years manufacturer warranty – please contact your place of purchase for warranty replacement. For technical support please contact us via info@heatermate.com.au or call us 1800 229 325.
