HeaterMate HY02TP Quick Start Manual

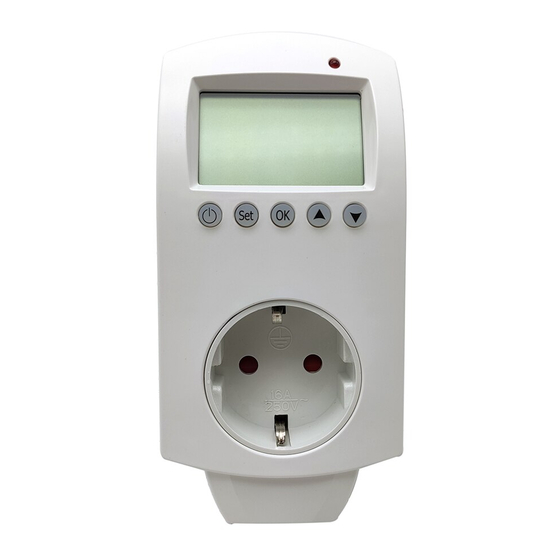

PLUG-IN ROOM TEMPERATURE CONTROLLER HEATERMATE
Thank you for choosing HEATERMATE. This programmable electronic temperature controller will provide
you with comfortable home environment and will help you to save energy.
QUICK START-UP GUIDE:
Plug HEATERMATE into power point – a display showing current ROOM temperature and SET temperature
will come up. By pressing Up or Down buttons select your desired SET temperature. Plug your heater into
Heatermate. If child lock is activated press/hold Down button for 3 seconds then release to unlock.
BUTTONS EXPLAINED:
NO. Symbols Explanation
1
Power ON/OFF
2
Short press to switch between Manual and Automatic Modes
3
Press to Enter/Confirm
4 Increase (Up) Button
5
Decrease (Down) Button
6 Indicator Light is ON -- power to heater is ON; light is OFF -- power to heater is OFF.
DISPLAY SYMBLES EXPLAINED:
Explanation
NO. symbols
1 Automatic control mode (manual control " " is not showing)
2 Manual control mode (automatic control "
3
Heating mode; " " is displayed when power to heater is ON
4 Cooling mode; " " is displayed when power to air conditioner or fan is ON
5
6 periods programmable icon
8
Room temperature
Model HY02TP
" is not showing)
TM
Child lock: activated automatically after 10 minutes of inactivity. Press/hold Down button "
9
seconds then release to unlock. Repeat the same procedure to lock.
Ventilation mode – turns heater off for a specified period of time during room ventilation (opening
10
windows) when room temperature drops below a specified temperature.
11
Clock setting icon
DISPLAY OVERVIEW:
1) Operation - Heating
Heatermate will turn your heater ON when ROOM temperature drops 1 degree below SET temperature and will turn your
heater OFF when ROOM temperature rises 1 degree above SET temperature. This 2 degrees temperature differential (which
comes as default) can be increased or reduced based on your preference – please refer to Section 6. Smaller differential will
lead to smaller room temperature fluctuations, but the heater will come ON/OFF more frequently and vice versa.
2) Clock Setting
Press/hold " " for 3 seconds then release to enter into setting screen. "
setting mode which displays minute, hour and day of the week. Minute is flashing. Press "
" " to save and move to hours. Set hours and day of the week in similar manner.
3) Timer Function
The Timer function is designed to enable customer to switch Heatermate ON for one fixed time period every day defined by
ON and OFF times. Outside of this time period Heatermate will be in OFF state (nothing will be showing on its display).
To set Timer press/hold " " for 3 seconds then release to enter into setting screen. Press"
Press " " or " " to set ON time. Press"
function set both ON and OFF times to 00.00 (comes as default).
Example: Set Timer for heater to come ON at 10pm every night, maintain 21.0 degrees temperature and turn OFF at 7am.
(i) Set ON time to 22:00 and OFF time to 08:00 by following above steps; (ii) Make sure the device is in Manual mode i.e. that
hand symbol is showing next to SET temperature. If not, press SET button once to switch to Manual mode; (iii) Set the
SET temperature to 21.0 degrees C by pressing UP/Down buttons. You can now leave your Heatermate and it will do the job.
NB: The Timer ON/OFF times, once set, will apply to both Manual and Automatic Modes
" icon is flashing. Press "
" or "
" to save then press" "to select " " and set OFF time. To disable Timer
" for 3
" to enter into clock
" to set minutes then press
"to select " "(
will flash)
