Item # 1007 967 995
Model # URM062003C-1

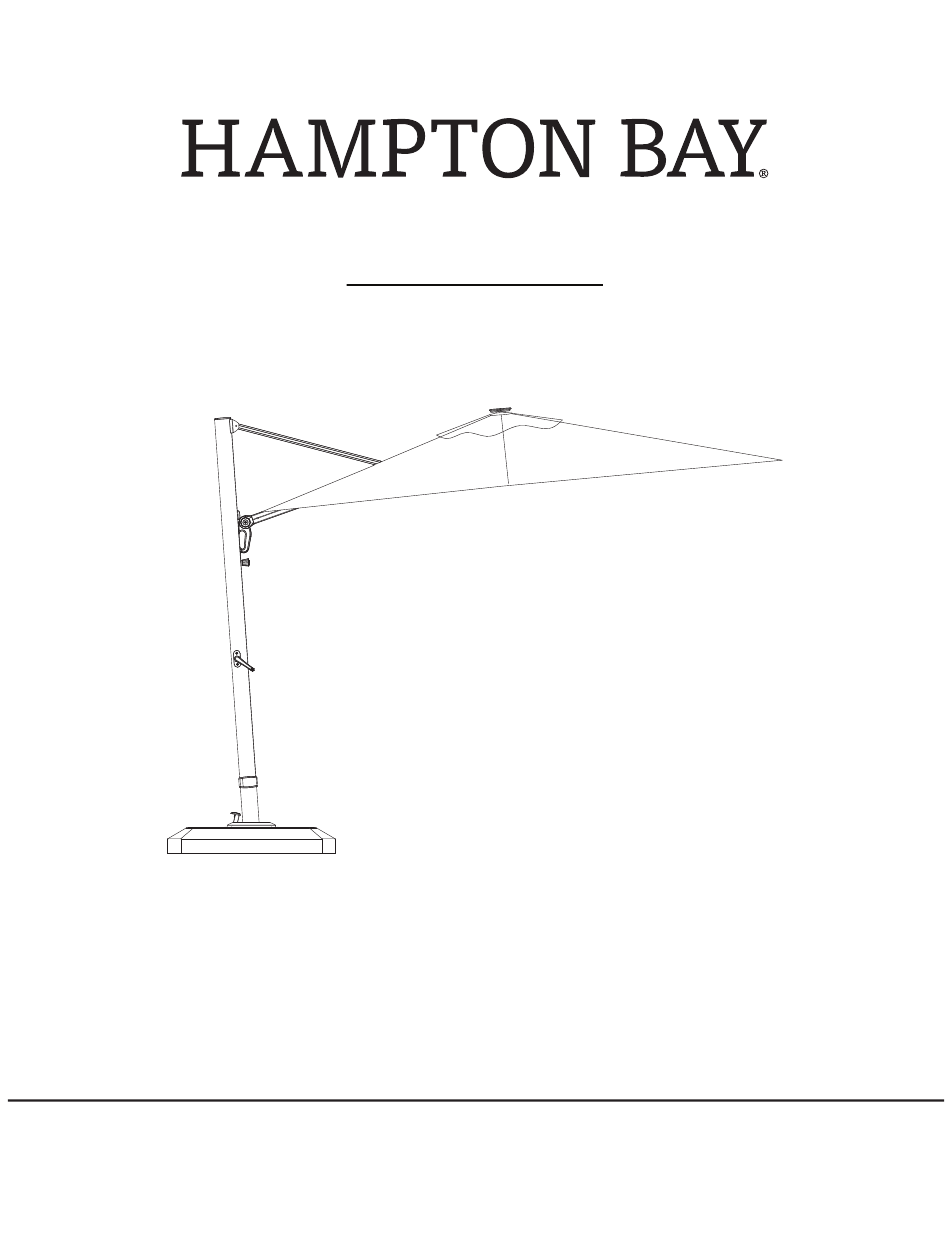

USE AND CARE GUIDE

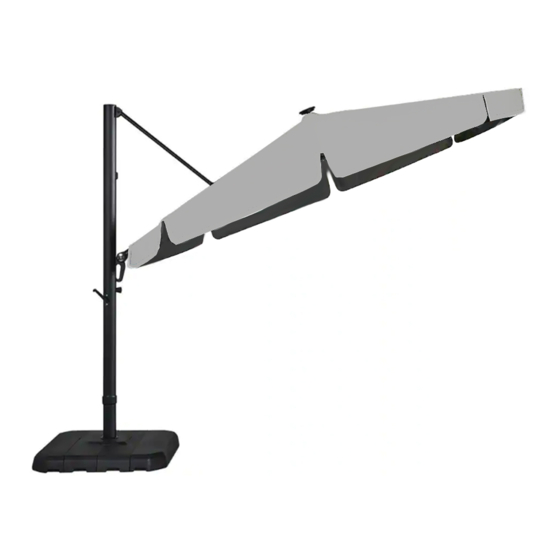

11 FT OFFSET IN BLACK/WHITE WITH KNIFE CUT
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YO U
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this umbrella. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the URM062003C-1 and is the answer not in the manual?

Questions and answers

Related Manuals for HAMPTON BAY URM062003C-1

Summary of Contents for HAMPTON BAY URM062003C-1

  • Page 1 THANK YO U We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this umbrella. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.

  • Page 2: Table Of Contents

    Table of Contents Table of Contents ............2 Pre-A ssembly ............... 3 Planning Assembly ..............3 Safety Information ............. 2 Hardware Included ..............3 Product Caution ..............2 Package Content s ..............4 Safety Warnings ..............2 Assembly ................

  • Page 3: Pre-Assembly

    Pre-Assembly PLANNING ASSEMBLY Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. NOTE: More than one person may be required to assemble this product. HARDWARE INCLUDED NOTE: Hardware not shown to actual size. NOTE: Hardware not shown to actual size.

  • Page 4: Package Contents

    Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Lower Bracket Upper Bracket Base Tube Crank Lower Umbrella Pole Umbrella Shade Turn Plate Pedal Pedal Tube Side Base Middle Base Upper Base Cover Lower Base Cover Solar Receiver...

  • Page 5: Assembly

    Assembly Pouring Sand and Water into the Bases Open the side bases (J) and the middle bases (K) in the counterclockwise direction. Pour sand and water totally need 264.55 lbs /120 kg into the side bases (J) and the middle bases (K) for proper stability of the umbrella.
  • Page 6 Assembly (continued) Attaching the Base Tube to the Turn Plate Attach the pedal tube (I) to the turn plate (G) using M6x10 bolt (AA) and hex wrench S5 (FF). Attach the upper bracket (B) onto the lower bracket (A). Attach the turn plate (G) to the brackets (A & B) using M10x30 combination bolts (DD) and hex wrench S8 (EE). Attach the base tube (C) to the turn plate (G) using M10x25 combination bolts (CC) and hex wrench S8 (EE).
  • Page 7 Assembly (continued) Attaching the Side Bases to the Brackets Attach the side bases (J) onto the brackets (A & B). Inserting the Lower Base Cover, the Upper Base and The Lower Umberlla Pole Into The Base Tube, Connecting the Pedal to the Pedal Tube Insert the lower base cover (M) and the upper base cover (L) into the base tube (C), as shown below.
  • Page 8 Assembly (continued) Attaching the Solar Receiver Attach the solar receiver (N) to the umbrella shade (F) by turning the solar receiver (N) clockwise until fully tightened. Please leave the solar receiver (N) out in a sunny area to NOTE: charge before the first time turning on the LED lights. ①...

  • Page 9: Operation

    Operation Raising the Umbrella Loosen the knob on the umbrella shade (F) by turning it in the counterclockwise direction. Hold the umbrella handle and push the umbrella shade upward to the desired position. Once the umbrella is at the desired position, fully tighten the knob on the umbrella shade by turning it in the clockwise direction. ②...
  • Page 10 Operation (continued) Turn the LED Light On and Off Press the ON/OFF switch to turn the LED light on and off. ON-OFF Rotating the Umbrella Hold the pedal (H) with one foot and rotate the umbrella pole (the umbrella can rotate up to 360 degrees). 360°...
  • Page 11 Operation (continued) Closing the Umbrella Loosen the knob on the umbrella shade (F) by turning it in the counterclockwise direction. Hold the umbrella handle and push the umbrella shade downward. Closing the Umbrella Slowly turn the crank (D) in a counterclockwise to close the umbrella. HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.

  • Page 12: Care And Cleaning

    Operation (continued) Tying the Umbrella to the Umbrella Pole Tie the umbrella to the umbrella pole with the velcro belt when not in use, as shown below. Care and Cleaning For best results, clean the umbrella with damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate.
  • Page 13 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
