Item # 1007 796 220
Model # UXM037008C

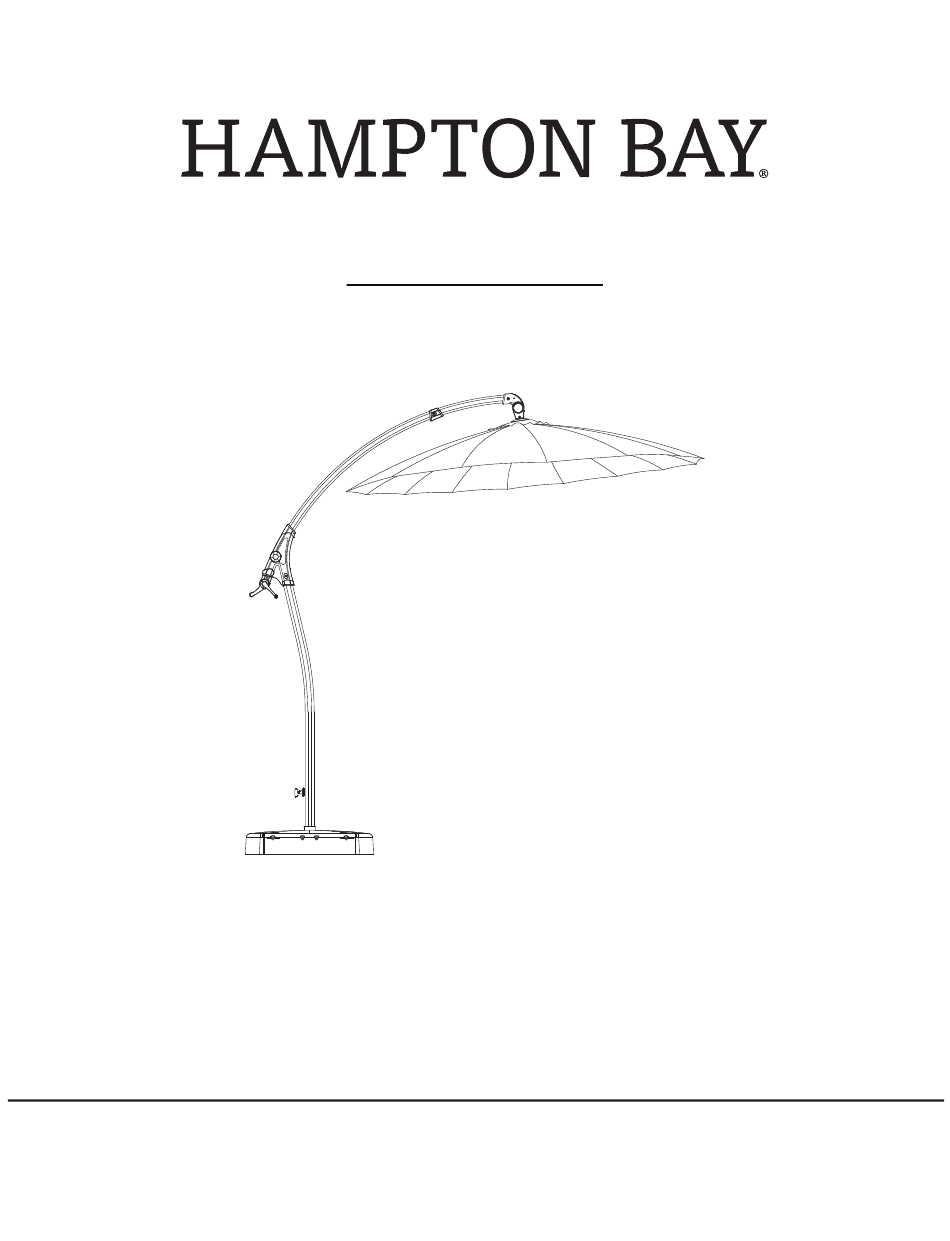

USE AND CARE GUIDE
10 FT ALUMINUM ROUND UMBRELLA - NO LED
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this umbrella. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY UXM037008C
Summary of Contents for HAMPTON BAY UXM037008C
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this umbrella. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Table of contents ...............2 Pre-assembly ................3 Safety Information .............2 Planning assembly ..............3 Product Caution ..............2 Hardware included ..............3 Safety Warnings ..............2 Packaging contents ..............4 Warranty.................2 Assembly............... 5 What is covered ..............2 Operations..............14 Care and Cleaning ............... -
Page 3: Pre-Assembly
Pre-Assembly PLANNING ASSEMBLY Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. NOTE: More than one person may be required to assemble this product. HARDWARE INCLUDED NOTE: Hardware not shown to actual size. NOTE: NOTE: Part... -
Page 4: Packaging Contents
Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Lower Base Cover Lower Bracket Upper Bracket Side Panel Lower Umbrella Pole Lock Panel Crank Upper Base Cover Umbrella Shade Corner Connector Middle Umbrella Pole Sand Bag... -
Page 5: Assembly
Assembly Inserting the Upper Bracket to the Lower Bracket Place the lower bracket (A) on a soft surface. Insert the upper bracket (B) onto the lower bracket (A). NOTE : This umbrella should be set up in its desired location to avoid moving it after assembly. Separating the Middle Umbrella Pole From the Lower Umbrella Pole Separate the middle umbrella pole (F) from the lower umbrella pole (C) by rotating the locking knob 180 degrees clockwise. - Page 6 Assembly (continued) Attaching the Lower Umbrella Pole to the Brackets Attach the lower umbrella pole (C) to the upper bracket (B) and lower bracket (A) using M8x20 combination hex bolts (AA). Fully tighten the bolts using the wrench (BB). Inserting the Corner Connectors Insert the corner connectors (K) into the four ends of the assembled brackets.
- Page 7 Assembly (continued) Sliding the Lock Panels Slide the perforated lock panels (I) downward between the corner connectors (K). OPEN CLOSE OPEN CLOSE Sliding the Side Panels Slide the side panels (H) downward between the corner connectors (K). OPEN CLOSE OPEN CLOSE HAMPTONBAY.COM.
- Page 8 Assembly (continued) Placing the Sand Bag Place the sand bag (L) in the umbrella base. Place the base in the area where the umbrella is to be used. NOTE: The umbrella will be very heavy after lled with sand. OPEN CLOSE OPEN CLOSE...
- Page 9 Assembly (continued) Ensuring the Locking Mechanism is in the Open Position Ensure the locking mechanism on the lock panels (I) is in the OPEN position by using the wrench (BB) as shown in figure 1. Attach the lower base covers (G) to the side panels (H). Close the lower base covers (G) and ensure they are fully closed.
- Page 10 Assembly (continued) Locking the Lower Base covers Lock the lower base covers (G) and the lock panels (I) by turning the locking mechanisms to the CLOSE position using the wrench (BB) as shown. Attach the upper base cover (J) to the assembled base. Assembling the Umbrella Shade Align the holes, hold down the tabs on the pins and insert the tube to another tube until the two pieces snap into place.
- Page 11 Assembly (continued) Attaching the Umbrella Shade to the Middle Umbrella Pole Align the holes on the middle umbrella pole (F) before NOTE: releasing the pins to secure. HAMPTONBAY.COM. Please contact 1-855-HD-HAMPTON for further assistance.
- Page 12 Assembly (continued) Inserting the Umbrella Shade Into the Lower Umbrella Pole Rotate the locking knob 180 degrees clockwise as shown in figure 1. Insert the umbrella shade (E) into the lower umbrella pole (C) as shown in figure 2. Rotate the locking knob 180 degrees clockwise as shown in figure 3. NOTE : If there is a gap in the locking knob as shown below in figure 3, please rotate the umbrella shade (E) until it is completely locked as shown in figure 4.
- Page 13 Assembly (continued) Attaching the Crank Attach the crank (D) to the handle. HAMPTONBAY.COM. Please contact 1-855-HD-HAMPTON for further assistance.
-
Page 14: Operations
Operation Attaching the Crank Attach the crank (D) to the handle as shown in figure 1. Attach the crank (D) by aligning the tap with the hole on the crank (D) until it snaps into place. To detach the crank, any properly sized tool is required to press the tap to take the crank (D) out. Attach the crank (D) without using the tap as shown in figure 2. - Page 15 Operation (continued) Raising the Umbrella Loosen the knob on the umbrella shade as shown in figure 1 by turning it counterclockwise until it is fully loose. Hold the umbrella handle and push the long bent tube upward as shown in figure 2 until it stops and the umbrella is fully extended. Fully tighten the knob on the umbrella shade clockwise as shown in figure 3 to lock the handle in place.
- Page 16 Operation (continued) Opening the Umbrella Slowly turn the crank (D) clockwise to open the umbrella as shown in figure 1. When the umbrella is fully open, fasten the Velcro belt to stabilize the umbrella. Make sure the Velcro belt is tightened as shown in figure 2.
- Page 17 Operation (continued) Adjusting the Umbrella Rotate the locking knob 180 degrees clockwise as shown in figure 1. Hold the umbrella handle with one hand and hold the short bent tube with the other hand to rotate the umbrella as shown in figure 2. (The umbrella can rotate up to 360 degrees.) When the umbrella is at the desired position, rotate the knob 180 degrees clockwise as shown in figure 3.
- Page 18 Operation (continued) Closing the Umbrella Shade Loosen the Velcro belt as shown in figure 1. Turn the crank (D) counterclockwise to close the umbrella as shown in figure 2. Figure 2 Figure 1...
- Page 19 Operation (continued) Lowering the Umbrella When the umbrella is closed, fully loosen the knob on the umbrella shade (E) by turning it counterclockwise as shown in figure 1. Hold the handle and pull the long bent tube downward as shown in figure 2. Tighten the knob on the umbrella shade (E) by turning clockwise as shown in figure 3 after closing the umbrella.
- Page 20 Operation (continued) Storing the Umbrella Tie the umbrella to the umbrella pole with the Velcro belt when not in use.
-
Page 21: Care And Cleaning
Operation (continued) Storing the Umbrella Loosen the knob on the umbrella shade by turning it counterclockwise until it is fully loose. Pull out the umbrella shade and separate from the umbrella base when not in use. Care and Cleaning For best results, clean the umbrella with damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate. - Page 22 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
