Summary of Contents for S&P AIRPUR PAP 650V

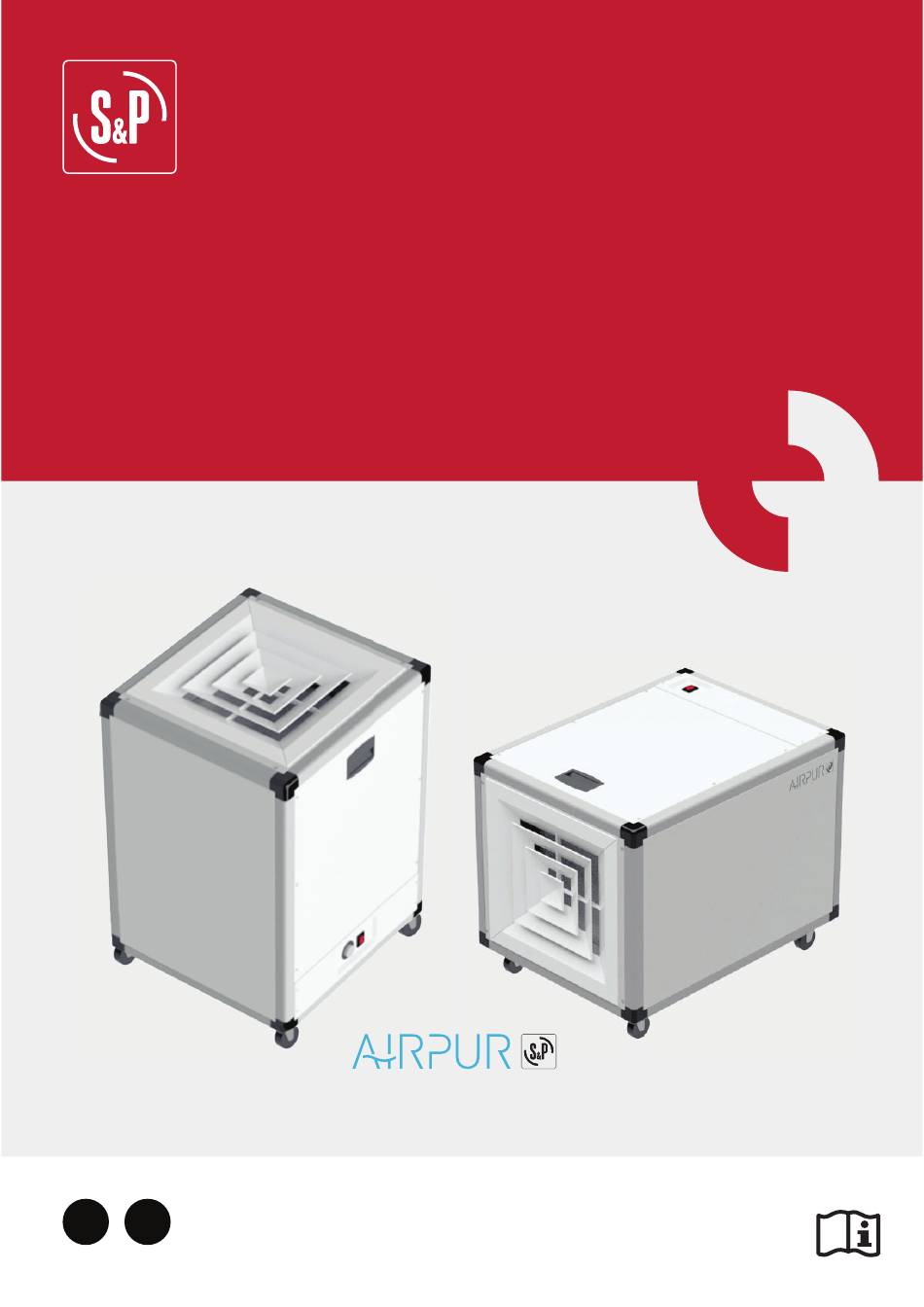

- Page 1 PAP 650 PAP 650V PAP 850 PAP 850V...
-
Page 2: Table Of Contents
ENGLISH INDEX 1. OVERVIEW ..........................16 2. SAFETY STANDARDS AND “EC” MARKING ................. 16 3. SAFETY INSTRUCTIONS ...................... 16 4. TECHNICAL CHARACTERISTICS ..................17 5. HANDLING ........................... 17 6. RECEPTION .......................... 17 7. DIMENSIONS ........................18 8. LOCATION ..........................18 8.1. -
Page 3: Overview
1. OVERVIEW • We appreciate the trust you have placed in us by purchasing this device. You have pur- chased a high-quality product that has been manufactured in strict compliance with recog- nized technical regulations regarding safety, and in accordance with EC standards. •... -
Page 4: Technical Characteristics
• Do not insert any object through the air output grille. • Cleaning and user maintenance shall not be made by children without supervision. • Before carrying out any maintenance work, or during long periods without use make sure that the purifi er has been disconnected from the mains. •... -
Page 5: Dimensions
7. DIMENSIONS Horizontal version Vertical version Model Weight (mm) (mm) (mm) (kg) PAP 850 H14 PAP 650 CA H14 PAP 650 VOC H14 PAP 850V H14 PAP 650V CA H14 PAP 650V VOC H14 8. LOCATION • Once out of the box, locate the purifi er in the premise or room where you need to purify the air. - Page 6 − In the case of vertical versions, avoid locating the unit between walls or objects that may disturb the correct air distribution of the diffuser (Fig. 4). • PAP purifi ers are equipped with various fi lters, including an absolute fi lter with an effi cien- cy of 99.99%.
-
Page 7: Purifier Components
8.1. PURIFIER COMPONENTS The PAP puriÞ er is made up of the following components: Horizontal version On-off switch and potentiometer of speed adjustment Cover of filter access Inlet protection guard Air outlet diffuser Rear wheels Front wheels with safety brake Vertical version Air outlet diffuser Cover of filter access... -
Page 8: Commissioning
8.3. COMMISSIONING IMPORTANT! PAP units include very high effi ciency fi lters. To avoid that the fi lters Absolute H14, activated carbon and VOC (the last two only available in PAP 650 model), these fi lters are supplied in a plastic bags. -
Page 9: Pap-850 H14 Model
9.1. PAP 850 H14 MODEL Recommended speed setting depending on the application and room dimensions: Reduce Increase speed speed Premises with little occupation (reception, hotel rooms, medical offi ces, dentists, offi ces): Surface (m Height Premises with medium occupation (offi ces, meeting rooms, commercial establishments, classrooms): Surface (m Height... -
Page 10: Pap-650 Ca H14 And Pap-650 Voc H14 Models
9.2. PAP 650 CA H14 AND PAP 650 VOC H14 MODELS Recommended speed setting depending on the application and room dimensions: Reduce Increase speed speed Premises with little occupation (reception, hotel rooms, medical offi ces, dentists, offi ces): Surface (m Height Premises with medium occupation (offi... -
Page 11: Preventive Maintenance
10. PREVENTIVE MAINTENANCE Although maintenance operations are not usually complicated, we recommend that they be carried out by qualifi ed personnel. At S&P we have an extensive network of Technical Services that will be able to offer technical assistance for both equipment startup and fi lter maintenance and interior cleaning of the unit. -
Page 12: Fans
• CA / VOC fi lter replacement: Between 6 months and 1 year depending on use. • H14 Absolute fi lter: Between 1 year and 2 years depending on use. Process for the fi lter disassembly Access to fi lters is done from the top of the appliance. To access these, follow the next pro- cedure: •... - Page 13 S&P SISTEMAS DE VENTILACIÓN, S.L.U. C. Llevant, 4 Polígono Industrial Llevant 08150 Parets del Vallès Barcelona - España Tel. +34 93 571 93 00 Fax +34 93 571 93 01 www.solerpalau.com Ref. 9023092300...
