Airxcel 9630-352 Installation, Operation and Application Manual

This thermostat should be installed by trained technicians only. Adhere to all local and national codes. Disconnect all power to the system before installing, removing, or cleaning.

Application

The thermostat wiring is factory installed by the OEM (Original Equipment Manufacturer). RV Products suggests the thermostat wiring be a minimum of 18 gauge. The thermostat is intended for use with a 12 VDC control circuit that does not exceed 1 amp. The thermostat is equipped with a replaceable 2 amp fuse located on the base of the thermostat. The fuse is designed to "open" if the circuit is mis-wired or if there is a short in the system. Before replacing the fuse, the cause of the failure must be located and corrected.

Operation

The display indicates the mode and the room temperature. When the mode button is pressed once, the thermostat will wake and if your thermostat is equipped with a backlight, the backlight will illuminate. When the mode button is pressed again, the mode will change. Press the or button to wake the thermostat, the set temperature will display and flash. Press the or button again to change the set temperature. The thermostat will go back to sleep mode after 5 seconds if no buttons are pressed.

In electric heat mode, if the heat pump is unable to satisfy the thermostat call, the heat pump will go into lockout (See heat pump and backup heat example for conditions of heat pump lockout). When thermostat is in lockout, ELEC will flash on the display.

In gas heat mode, the gas furnace will provide the only source of heat and the heat pump is locked out.

Refer to the operation chart for a more detailed listing of operation sequence.

Installation

ELECTRICAL SHOCK HAZARD – Turn off power at the main service panel by removing the fuse or switching the appropriate circuit breaker to the Off position before removing the existing thermostat.

THERMOSTAT LOCATION

This thermostat is a sensitive instrument. For accurate temperature control and comfort, the following considerations should be taken into account:

1. Locate the thermostat on an inside wall about five feet above the floor. Pick a dry area where air circulation is good.
2. Do not install thermostat where there are unusual heating conditions, such as direct sunlight, near heat producing appliances (televisions, radio, wall lamp, etc.), or a furnace or air conditioner supply register.

INSTALLING THE THERMOSTAT

1. Place mounting screw template against the wall where thermostat will be mounted.
2. Using supplied screws, mount the template to the wall.
3. Remove plastic from between mounting screws.
4. Connect thermostat wiring to motorcoach wiring.
5. Place thermostat on mounting screws and gently push the thermostat down to lock the thermostat onto mounting screws.
6. Turn on power to the thermostat.

Wiring Diagrams

Note: When used to replace a thermostat which previously did not use plugs, please remove the plugs and use wire nuts as needed.

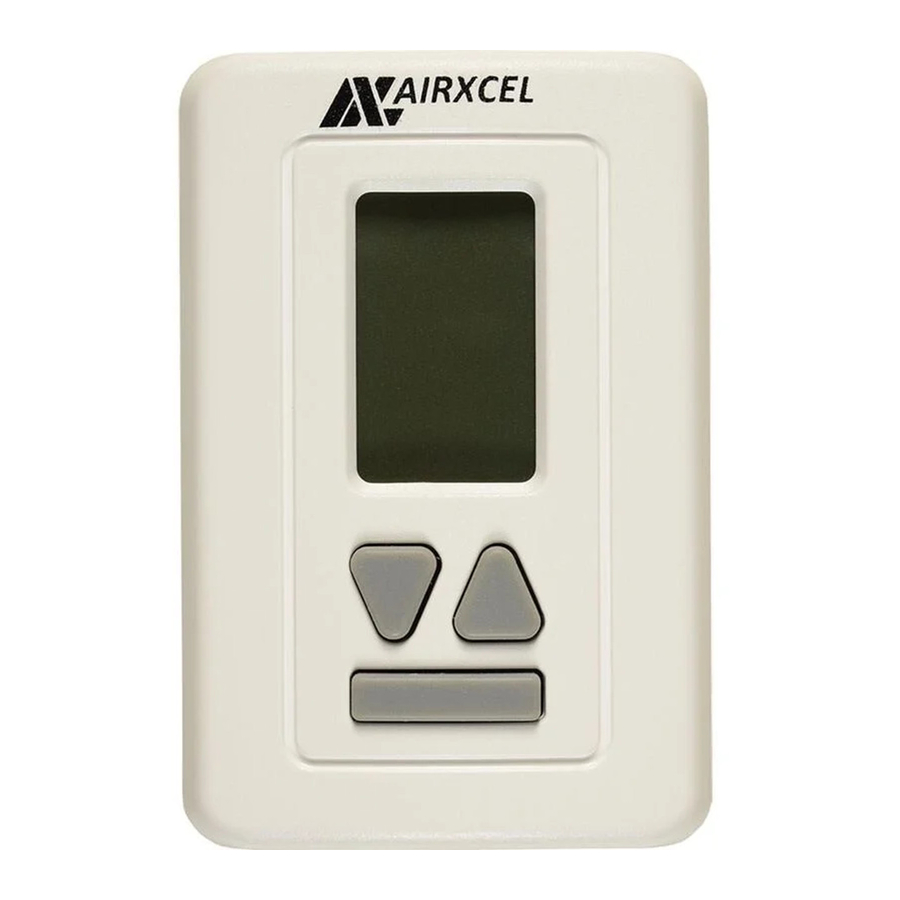

Button Functions

UP – Wake thermostat and increase temperature

DOWN – Wake thermostat and decrease temperature

MODE – Wake thermostat, change mode

Note: Hold mode button down for 5 seconds. The thermostat will change from Fahrenheit to Celsius or Celsius to Fahrenheit. The backlight will turn off after five seconds.

Pairing the Thermostat

1. Download the RVClimate app from either the Google Play store or Apple App store.


2. Open the app and select "ADD NEW THERMOSTAT".

3. On the thermostat, hold the Up and Down buttons simultaneously to enter pair mode.
4. On the App select "PAIR NEW THERMOSTAT".
5. When prompted, enter the 6 digit ID from the thermostat and select "PAIR".
6. Once connected the thermostat will revert to the main screen.
7. Slide screen to the left (2nd screen).
8. Press .
9. Select "ZONE NAME".
10. Assign a name or description to the thermostat (7 characters max).
11. Select "SET" to save the assigned name or description.
    Note: Each thermostat may be connected to a maximum of 4 individual phones. Any subsequent connections will result in the oldest/first connections being automatically deleted in order.

Pairing additional thermostats

1. Using the RVClimate app.
2. Slide screen to the left (last screen).
3. Select "PAIR NEW THERMOSTAT".
4. On the thermostat, Hold the Up and Down buttons simultaneously to enter pair mode.
5. When prompted, enter the 6 digit ID from the thermostat and select "PAIR".
6. Once connected the thermostat will revert to the main screen.
7. Slide screen to the left (2nd screen).
8. Press .
9. Select "ZONE NAME".
10. Assign a name or description to the thermostat (7 characters max).
11. Select "SET" to save the assigned name or description.
    Note: A maximum of 3 units may be added to an individual phone.

Pairing a previously paired thermostat

1. Using the RVClimate app select "ADD NEW THERMOSTAT".
2. On the thermostat, Hold the Up and Down buttons simultaneously to enter pair mode
3. Thermostat will automatically pair.
   Note: If thermostat doesn't pair automatically, when prompted enter the 6 digit ID from the thermostat and select "PAIR".
4. Once pairing is complete, press the thermostat's mode button to return to the main screen.

Details (2nd Screen)

ZONE NAME: Assigns a name or description to the thermostat (maximum of 7 characters).

THERMOSTAT ID: Displays thermostat's 6 digit ID

FUNCTIONS: Displays available modes.

SET: Saves assigned zone name/ description.

CANCEL: Reverts to main screen.

REMOVE THERMOSTAT: Removes thermostat from the RV Climate app.

Controlling the thermostat via RV Climate app

1. Slide screen to the left (2nd screen).
2. Tap the icon displaying the current settings [Kitchen 75 FAN HIGH].
3. Select the desired temperature/mode.
4. Press "SET".

Removing a previously paired thermostat

1. Using the RV Climate app, slide screen to the left (2nd screen).
2. Press .
3. On the following page select "REMOVE THERMOSTAT" and press "OK".

Operation Chart

The chart below shows the system functions. After the entire air conditioning and heating system is installed, check each position function.

*There is a 3 minute anti-short cycle delay timer built into the thermostat.

Conditions of Heat Pump Lockout (Set Point 70°F)
