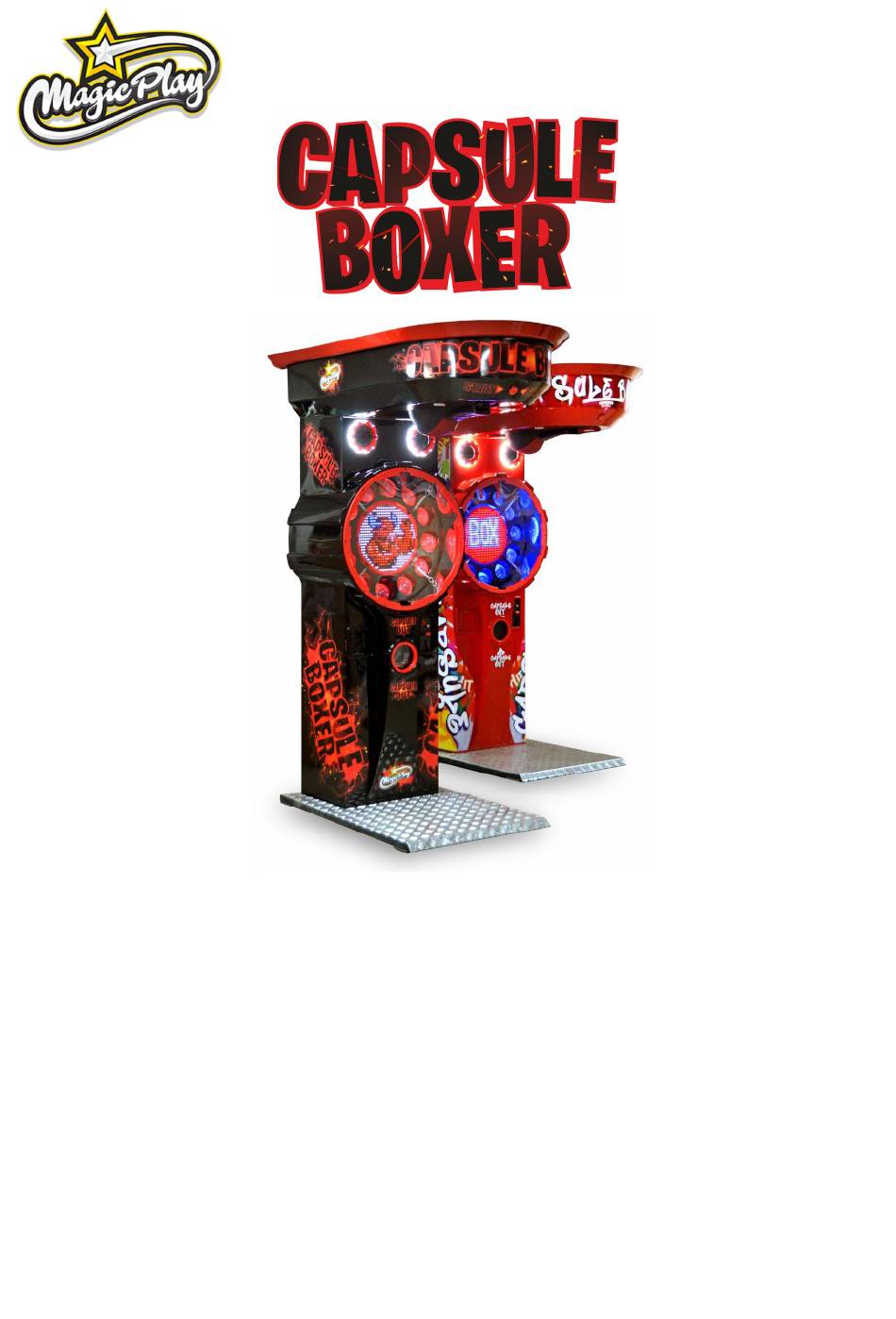

- Page 1 CAPSULE BOXER Operation Manual (v1.0) MAGIC PLAY SP Z O.O. CHOCIMSKA 6, 62800 KALISZ, POLAND Phone/Fax: +48 62 753 21 88. e-mail: service@magicplay.pl website: www.magicplay.eu Serial number:______________________________________________________ Distributor:_________________________________________________________ Date:______________________________________________________________...
-
Page 2: Table Of Contents
CAPSULE BOXER - USER’S MANUAL TABLE OF CONTENTS 1. PACKAGE CONTENTS 2. SPECIFICATIONS 3. SET UP & INSTALATION 3.1. DEVICE AND MOST IMPORTANT ELEMENTS 3.2. PLAY ZONE 3.2. TRANSPORTING THE GAME 3.4. CONNECTING THE POWER 4. UPDATE AND GAMEPLAY 4.1. SOFTWARE UPDATE 4.2. -
Page 3: Package Contents
CAPSULE BOXER - USER’S MANUAL Thank You for purchasing CAPSULE BOXER. We hope you enjoy the product. The manual contains valuable information about how to operate and maintain your game machine properly and safetly. It is intended for the owner and/ or personnel in charge of product operation. Carefully read and understand the instructions. - Page 4 CAPSULE BOXER - USER’S MANUAL IMPORTANT SAFETY INSTRUCTIONS To ensure the safe usage of this product, carefully read and understand these instructions before operating your game. Save these instructions for future reference. Use this product only as described in this manual. Other uses not recomended may cause fire, electric shock or personal injury.
-
Page 5: Specifications
CAPSULE BOXER - USER’S MANUAL THE PRODUCT IS A DEVICE FOR INDOOR AND OUTDOOR USE. HOWEVER, AVOID DIRECT EXPOSURE OF THE DEVICE DURING VERY UNFAVORABLE WEATHER CONDITIONS, SUCH AS HEAVY RAIN OR STRONG WIND Avoid installing in the following places to prevent fire, electric shock, injury and/ or machine malfunctioning: •... -
Page 6: Set Up & Instalation
CAPSULE BOXER - USER’S MANUAL • Check the cabinet for damage or shifting that may have occurred during shipping. Are there any dented portions or defects (cuts, etc.) on the external surfaces of the cabinet? • Are all the legs and adjusters/levelers/feet intact? •... -
Page 7: Device And Most Important Elements
CAPSULE BOXER - USER’S MANUAL 3.1 DEVICE AND IMPORTANT ELEMENTS 1. START button 8. Capsule filling door 2. Punch-ball 9. Service door 3. Capsule carousel 10. Coin-box acces 4. Speakers 11. Power socket 5. Display 6. Capsule pick-up 7. Coin acceptor 3.2 PLAY ZONE... -
Page 8: Connecting The Power
CAPSULE BOXER - USER’S MANUAL 3.4 CONNECTING POWER IMPORTANT! POWER SUPPLY ADJUSTS AUTOMATICALLY • Machines electrical system (power supplys and display) will adjusts automatically to 230V or 115V voltage. • Do not plug the equipment power cables into an electrical outlet if the power cable is damaged. -
Page 9: Software Update
CAPSULE BOXER - USER’S MANUAL 4.1. SOFTWARE UPDATE Software update steps: 1. Hold down SETUP buton on mainboard when powering up machine 2. Connect to WiFi called „Boxer”, password: MagicPlay 3. Open web browser and follow to 192.168.4.1 adress 4. Browse for update file and click Update 5. -
Page 10: Service Menu
CAPSULE BOXER - USER’S MANUAL SERVICE MENU SERVICE MENU is available directly on the device (by pressing the button on the mainboard display) or remotely (via the WEB SETUP service) WEB SETUP ACCES 1. Hold down SETUP button on mainboard when machine is on 2. -
Page 11: Maintenance, Inspection
CAPSULE BOXER - USER’S MANUAL 6. MAINTENANCE, INSPECTION 6.1 SAFETY CHECK Check the points listed before operating the machine. These checks are nessessary for safe machine operation: 1. Try to run the game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition 3. -
Page 12: Terms Of Warranty
CAPSULE BOXER - USER’S MANUAL 7. TERMS OF WARRANTY Magic Play Sp. z o.o. warrants that the CAPSULE BOXER game will be free from defects in electronics for a period of 12 months from the date of delivery. Warranty covers: •...
