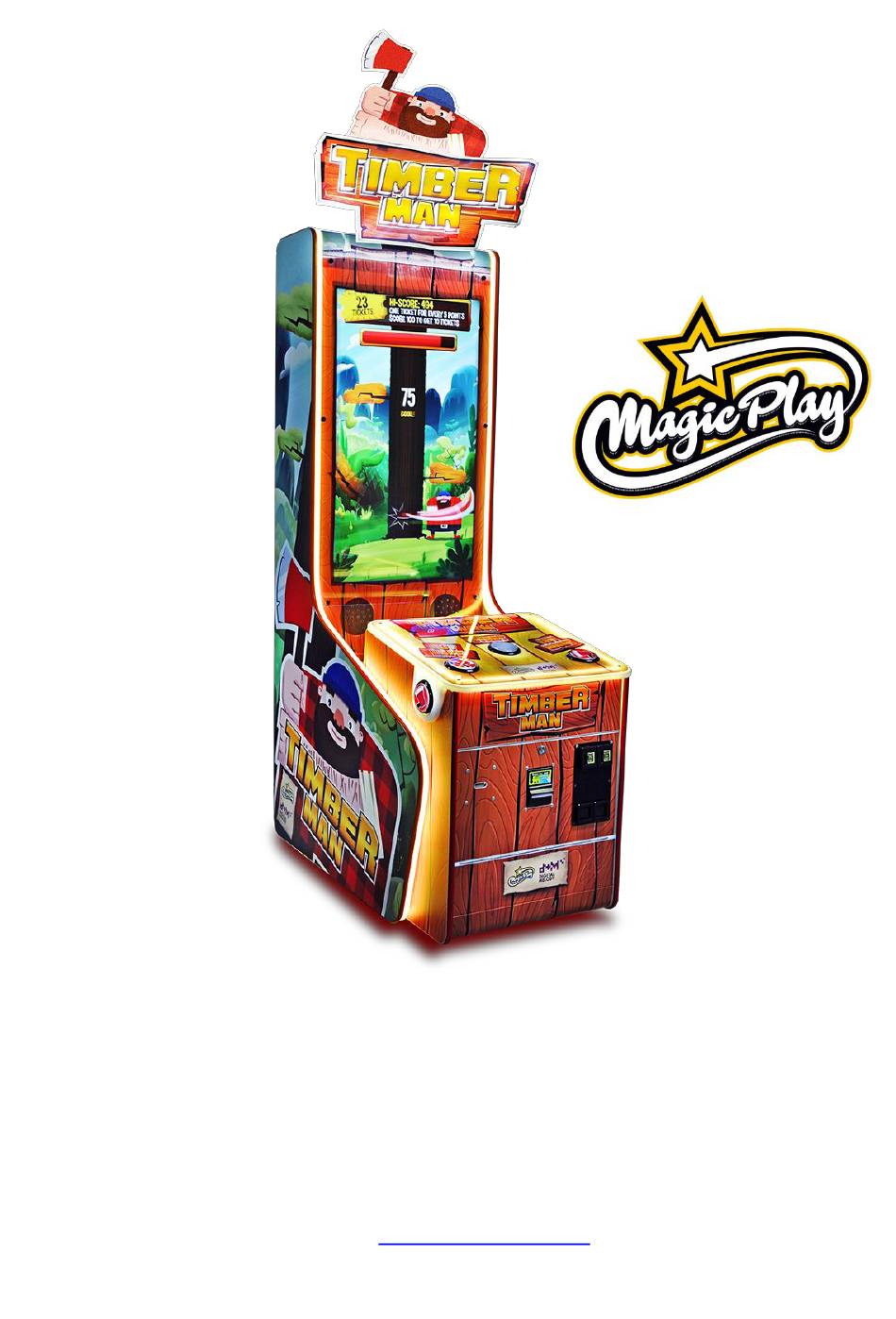

- Page 1 TIMBERMAN HERO Operation Manual (v1.1) SOFTWARE VERSION: T204 MAGIC PLAY SP Z O.O. CHOCIMSKA 6, 62800 KALISZ, POLAND Phone/Fax: +48 62 753 21 88 e-mail: service@magicplay.pl website: www.magicplay.pl...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important Safety Instructions 1. SPECIFICATIONS 2. PACKAGE CONTENTS 3. SET UP & INSTALATION 3.1 DEVICE AND MOST IMPORTANT ELEMENTS 3.2 MARQUEE ASSEMBLY 3.3 LEVEL ADJUSTMENT 3.4 TRANSPORTING THE GAME 3.5 CONNECTING THE POWER 4. ACTIVATION, UPDATE AND GAMEPLAY 4.1 ACTIVATION 4.2 SOFTWARE UPDATE 4.3 GAMEPLAY... -
Page 3: Important Safety Instructions
Thank You for purchasing TIMBERMAN . We hope you enjoy the product. The manual contains valuable information about how to operate and maintain your game machine properly and safetly. It is intended for the owner and/ or personnel in charge of product operation. Carefully read and understand the instructions. - Page 4 THIS PRODUCT IS AN INDOOR MACHINE ONLY! DO NOT INSTALL OUTDOOR! Avoid installing in the following places to prevent fire, electric shock, injury and/ or machine malfunctioning: • Places subject to rain/ moisture, or places subject to high humidy. • Places subject to direct sunlight, or places subject to extremely hot or cold temperatures to ensure that it is used within the specified operating range.
-
Page 5: Specifications
1. SPECIFICATIONS Rated power supply: 110 - 240V Dimensions: 115 x 68 x 294cm Weight: 150Kg NOTICE: After turning off the game, please wait at least 1 minute before restarting again. 2. PACKAGE CONTENTS Open the package and make sure all the items are included: •... -
Page 6: Set Up & Instalation
3. SETUP & INSTALLATION WARNING! THIS PRODUCT IS AN INDOOR MACHINE ONLY! DO NOT INSTALL OUTDOOR! • Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid • Place the unit on dry level surface • Ventilation openings in the back of the unit must not be obstructed by objects or by wall. 3.1 DEVICE AND IMPORTANT ELEMENTS 1. -
Page 7: Marquee Assembly
3.2 MARQUEE ASSEMBLY Two persons may be required for marquee assembly. To install the marquee you first need to open the rear upper door. Set a ladder or other platform on the back of the unit. Raise the marquee up, climb onto the platform and Secure marquee by placing the screws in the holes place the marquee base brackets in the holes on (1 and 2). -
Page 8: Transporting The Game
3.5 TRANSPORTING THE GAME If you need to move the game, adjust the levelers back to an „up“ position so the casters touch the ground. NOTICE • Be careful not to damage the machine durning transport. • The machine should be handled with care when brining it down from a high level. •... -
Page 9: Activation, Update And Gameplay
4. ACTIVATION, UPDATE AND GAMEPLAY IMPORTANT! DEVICE SOFTWARE IS COPYRIGHT PROTECTED. COPYING AND DISTRIBUTION IS STRICTLY PROHIBITED. IT IS ALSO FORBIDDEN TO INTERFERE IN THE INTEGRITY OF SOFTWARE THROUGH MODIFICATION OR IMPLEMENTATION OF ANY CHANGES WITHOUT APPROVAL OF THE MANUFACTURER. ANY ATTEMPTS OF SOFTWARE CHANGES, OTHER THAN THOSE SPECIFIED BY THE MANUFACTURER MAY RESULT IN WARRANTY LOSS. - Page 10 4.2.2 SOFTWARE UPDATE FOR CPU BOARD V3 To carry out software update USB memory stick is required. 1. Download auto-update file provided by manufacturer/distributor and save it to main direcory of usb memory stick. 2. Turn OFF your machine 3. Open the rear service door and locate miniPC USB ports 4.
-
Page 11: Gameplay
4.3 GAMEPLAY To start the game insert coins in coin acceptor or banknote in bill validator. Press the START button to start the game. Instructions for the players who are playing for the first time appears on the screen. You can skip this information by pressing the START button. - Page 12 Main Menu Description setting sound volume from 0 to Sfx volume 0-100 setting music volume from 0 to Music volume 0-100 Device settings Music 1, 2, 3 on/off Lights on/off option is temporarily unavailable Main prize chops 50-500 Easier plays 0-100% percentage Hinted chops...
- Page 13 bonus tickets for completing the main prize tickets 200-1000 game specify the number of tickets Tickets for issued every second when the full stripe bonus 0-100 specials player manages to achieve and Tickets settings maintain a bonus for speed win always the same amount of fixed tickets 0-1000 (0=off) tickets...
-
Page 14: Service Menu
SERVICE MENU Sound effect, and music volume settings DEVICE SETTINGS Begginers settings and background images GAME SETTINGS Game prize, coin and bill acceptors settings CREDIT SETTINGS Ticket for points, ticket for levels and special ticket TICKET SETTINGS settings Random leader board and leaderboard reste time LEADERBOARDS settings Credits and tickets resetable and non-resetable... -
Page 15: Credits Settings
CREDITS SETTINGS Free play, no credits needed. FREE PLAY ON/OFF Predefined credits settings for various currencies DEFAULT SETTINGS Coin acceptor settings for impulse and channel COIN SETTINGS modes Bill acceptor settings BILL SETTINGS Predefined credit settings for US DOLLARS DEFAULT USD Predefined credit settings for EURO DEFAULT EUR Predefined credit settings for POLISH ZLOTY... -
Page 16: Tickets Settings
IMPULSE MODE ON/OFF: for impulse or IMPULSE MODE ON/OFF mechanical coin acceptors – accepts only one type of coins/tokens. If pulse mode is switched on, channel mode turns off automatically. Set how many games/credits will be launched by IMPULSE MODE SETTINGS single pulse from coin acceptor Set how many games/credits will be launched by BILL SETTINGS... -
Page 17: Leaderboards
Enable or disable the option for the conversion TICKETS FOR SCORE number of points to a single ticket ON/OFF Set how many points a player must earn to get a ticket Enable or disable the option to issue a given TICKETS FOR SCORE amount of tickets for exceeding a certain number LEVELS... -
Page 18: Counters
COUNTERS Credit, win tickets, tickets issued, the number of RESETABLE COUNTERS games Credit, win tickets, tickets issued, the number of NON-RESETABLE games COUNTERS LOGS AND STATS average number of tickets earned for points AVG. TICKETS FOR PLAY average number of tickets earned for score levels AVG. - Page 19 To check, insert a coin into the coin acceptor. The COIN ACCEPTOR screen will display information about the channel on which the coin was accepted To check, insert a bill into the bill acceptor. BILL ACCEPTOR Press START button to check BUTTON 1 Press LEFT CUT buton to check BUTTON 2...
-
Page 20: Recommended Tickets Settings
Display red color Display green color GREEN Display blue color BLUE Display white color WHITE 6. RECOMMENDED TICKETS SETTINGS Tickets payout ~20-30 tickets MENU GAME SETTINGS MAIN PRIZE CHOPS EASIER PLAYS PERCENTAGE HINTED CHOPS EASY MODE RETRIES EASY MODE CHOPS DIFFICULTY/TIMBER SPEED TICKET FOR SCORE TICKETS FOR EVERY SCORE... -
Page 21: Maintenance, Inspection
7. MAINTENANCE, INSPECTION 7.1 SAFETY CHECK Check the points listed before operating the machine. These checks are nessessary for safe machine operation: 1. Try to run the game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition 3. -
Page 22: Electrical Diagram
9 ELECTRICAL DIAGRAM 9.1 FOR CPU BOARD v2... - Page 23 9.2 FOR CPU BOARD v3...
-
Page 24: Troubleshooting For Cpu Board V2
All units above the serial number 1210318 are equipped with CPU board v3. CPU board v2 CPU board v3 (new) 10. TROUBLESHOOTING FOR CPU BOARD v2 10.1 SYSTEM MICROSD CARD LOCATION The MicroSD card is located at back of CPU board, near top-right installation screw. It is possible to pull it without CPU board disassembly. -
Page 25: No Signal" Alert On Screen
10.2 „NO SIGNAL” ALERT ON SCREEN 1. Observe CPU board placed behind bottom rear service door when machine is plugged in. RED LED light: Solid: 5V power is on: OK Blinking: Problems with power supply, check power supply (2nd point) or wiring connections or CPU board failure atleast. -
Page 26: Problems With Ticket Dispensing, Game Crashing/Freezing, Settings Are Not Saved
10.4 PROBLEMS WITH TICKET DISPENSING, GAME CRASHING/FREEZING, SETTINGS ARE NOT SAVED Caution: This will erase your game settings/electrical counters and stats! Game will need to be configured if default settings does not fit your requirements 1. Open the lower rear service door, locate the CPU board (see picture) and plug USB mouse. 2. - Page 27 5. Select „Apps“ 6. Find and click on Timberman application 7. Click „CLEAR DATA“ 8. App refreshed, click on the circle at the bottom of the screen to back to machine desktop. 9. Disconnect USB mouse. Game need to be configured.
-
Page 28: Problems With Coin Acceptors/Bill Acceptors
10.5 PROBLEMS WITH COIN ACCEPTORS/BILL ACCEPTORS 1. Possible problems with acceptors firmware 2. Check wirings for acceptors 3. Not accepted permission to acces USB device for I/O board (see „Buttons/coins not working”) 10.6 BUTTONS/COINS MECH NOT WORKING 1. Check wiring connections to I/O board 2. -
Page 29: Troubleshooting For Cpu Board V3
5. Select provided image file and select proper device letter (CPU board Micro SD card) 6. When image file and drive letter is selected properly, click “Write” and wait for finish. Put SD card back into CPU board unit and turn the machine on. Solid RED and blinking BLUE LED light on CPU board means that everything is ok. -
Page 30: Screen Is Cutted Off With Front Screen Sticker Or Is Smaller Than Sticker
12.2 MY SCREEN IS CUTTED OFF WITH FRONT SCREEN STICKER OR IS SMALLER THAN STICKER 1. Connect USB keyboard to MiniPC and plug-in the machine 2. There are two options: a. If your machine screen is 42”: Press key „1” when Game Launcher prompt for screen size configuration b. -
Page 31: Problems With Coin Acceptors/Bill Acceptors
11.7 PROBLEMS WITH COIN ACCEPTORS/BILL ACCEPTORS 1. Possible problems with acceptors firmware 2. Check wirings for acceptors 3. No USB connection between I/O board and computer 4. Try to restart your machine 11.8 BUTTONS/COINS MECH NOT WORKING 1. Check wiring connections to I/O board 2. - Page 32 5. Using keyboard arrows, select USB Flash Drive and accept it by pushing ENTER Don’t worry if you don’t see this pop-up. Your USB drive is always at the 3rd position. Push two times DOWN ARROW on keybord and hit ENTER. Then you will see the recovering screen. 6.
-
Page 33: Terms Of Warranty
12. TERMS OF WARRANTY Magic Play Sp. z o.o. warrants that the TIMBERMAN game will be free from defects in electronics for a period of 12 months from the date of delivery. Warranty covers: • Display • Main board • I/O board •...
