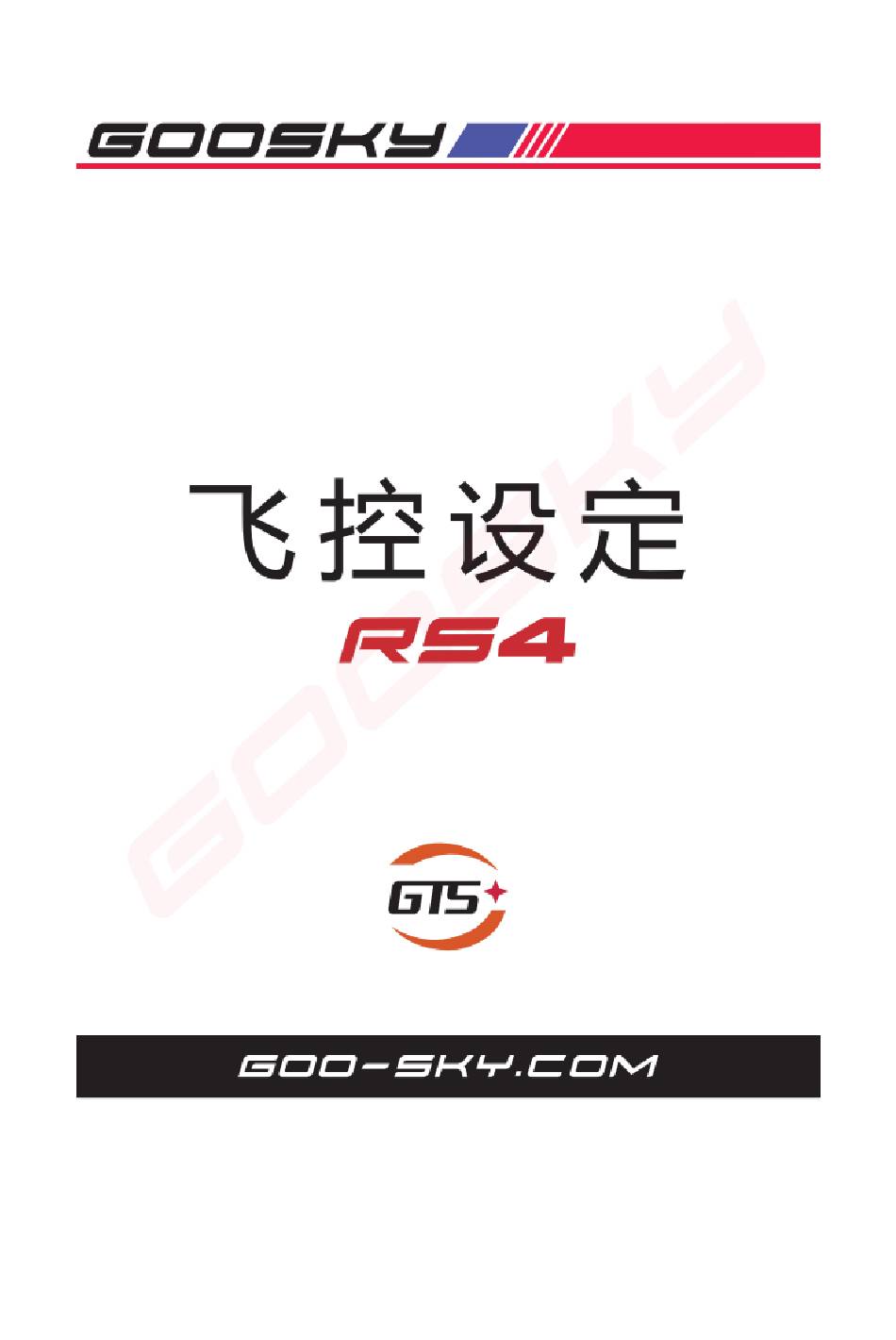

- Page 1 Flight Control Settings...
- Page 2 The external receiver of the remote control is connected to the flight control S-BUS interface is compatible with PPM, S-BUS, iBUS, EBUS T-DSMX interface is compatible with DSM, DSM2, DSMX, DMSS...
- Page 3 Schematic diagram of flight control parameter adjustment SET - Setting menu button S0 – reserved button S1 - On/Off Attitude Mode button LEDs: SERVO - Servo midpoint settings (swash levelling) PITCH - Pitch setting (Positive and negative pitch) SPEED - Speed indicator (Rotation rate) AGILE - Sensitivity indicator (Feed forward) GYRO - Sensitivity indicator (Gyro gain) RUD - Rudder parameter adjustment mode...
- Page 4 Rudder speed setting (rotation rate) To enter the menu, press and hold SET for 3 seconds → RUD light is solid-on → SPEED light flashes With the RUD light solid-on in white and the SPEED blue light flashing, you are reading the rudder speed setting.
- Page 5 Rudder gyro gain setting RUD light is solid-on → click SET → GYRO light flashes Press and hold the SET button for 3 seconds to enter the adjustment mode, short press the SET button until the indicator light RUD is solid-on and the GYRO light flashes.
- Page 6 Elevator speed setting (rotation rate) ELE light is solid-on → click SET → SPEED light flashes Press and hold the SET button for 3 seconds to enter the adjustment mode, short press the SET button until the indicator light ELE is solid-on and the SPEED light flashes.
- Page 7 Elevator agility setting (feed forward) ELE light is solid-on → click SET → AGILE light flashes Press and hold the SET button for 3 seconds to enter the adjustment mode, short press the SET button until the indicator light ELE is solid-on and the AGILITY light flashes.
- Page 8 Elevator gain setting ELE light is solid-on → click SET → GYRO light flashes Press and hold the SET button for 3 seconds to enter the adjustment mode, short press the SET button until the indicator light ELE is solid-on and the GYRO light flashes.
- Page 9 Aileron speed setting (rotation rate) AIL light is solid-on → click SET → SPEED light flashes Press and hold the SET button for 3 seconds to enter the adjustment mode, short press the SET button until the indicator light AIL is solid-on and the SPEED light flashes. The factory default aileron speed is 5 and you will see the BLUE light flashing 5 times followed by a pause.
- Page 10 Aileron agility setting (feed forward) AIL light is solid on → click SET → AGILE light flashes Press and hold the SET button for 3 seconds to enter the adjustment mode, short press the SET button until the indicator light AIL is solid-on and the AGILITY light flashes. The factory default aileron agility is 5 and you will see the BLUE light flashing 5 times followed by a pause.
- Page 11 Aileron gain setting AIL light is solid-on → click SET → GYRO light flashes Press and hold the SET button for 3 seconds to enter the adjustment mode, short press the SET button until the indicator light AIL is solid-on and the GYRO light flashes. The factory default aileron gain is 5 and you will see the BLUE light flashing 5 times followed by a pause.
- Page 12 Servo center setting click SET → SERVO light flashes Press and hold the SET button for 3 seconds to enter the adjustment mode, short press the SET button until the indicator light SERVO is solid-on. Use the rudder, elevator and aileron sticks on the transmitter to set the servo centers.
- Page 13 Collective pitch setting Click SET→PITCH light is solid-on Press and hold the SET button for 3 seconds to enter the adjustment mode, short press the SET button until the indicator light PITCH is solid-on. Confirm throttle hold is enabled on the transmitter.
- Page 14 Rudder center / travel settings Click SET→PITCH light is flashing Press and hold the SET button for 3 seconds to enter the adjustment mode, short press the SET button until the indicator light PITCH flashes. Confirm throttle hold is enabled on the transmitter. Move the throttle/collective stick to the middle position (50%) and use the elevator stick to change the rudder center point, move the throttle/collective to high (100%) and adjust the tail end point using the elevator stick, move the throttle/collective pitch to low (0%) to adjust the...
- Page 15 S1 function introduction The attitude mode (self levelling) can be switched via the transmitter (channel 5) or manually set via the buttons on the flight controller. Manual attitude mode on/off setting 1. Press and hold the S1 button for 3 seconds, the flight control LED indicator light is solid-on in green - the attitude mode is switched off 2.
- Page 16 Schematic diagram of flight control parameter adjustment The blue light flashes, the The white light is solid default setting is continuously flashing 5 times Move the Elevator stick forward once to increase the setting. Speed GYRO Move the Elevator stick backward once to decrease the setting.
- Page 17 Attitude mode calibration Firstly, turn on the transmitter, connect the aircraft battery and wait for the aircraft initialization to complete; Switch the transmitter mode switch to attitude mode (the indicator light of the flight controller is solid in red) Then pull the elevator stick of the transmitter back and hold it for 3 seconds. At this time, the red light of the flight control indicator light starts to flash, and it enters the attitude debugging mode.
- Page 18 <Recover Factory settings> Press the "SET" button 10 times Bind the remote control with the aircraft (wait for the initialization of the flight control to complete) Then, press the SET button 10 times, at this time the flight control indicator LED flashes red and blue together, wait for the initialization of the flight control to complete, and the factory settings are restored...
- Page 19 ESC parameter introduction> < Helicopter intelligent speed control, Slow start mode, Overheating protection, Built-in plug integrated design, 6S high voltage adaptation, Maximum continuous 70A, BEC5-8V 7/18A BEC voltage switching setting 1. Press and hold the SET button for 3 seconds, the motor "beeps" once, and the BEC output voltage is 5.5V 2.
- Page 20 <Flight Control Interface Introduction> 1. CH1-CH2-CH3-CH4: servo interface 2. BEC/throttle signal, RPM/speed feedback 3. S-BUS: interface Compatible with PPM S-BUS IBUS EBUS 4. PWM1/PWM2: reserved interface 5. DSMX: Interface Compatible with DSM DSM2 DSMX DMSS 6. UART: Bluetooth interface...
