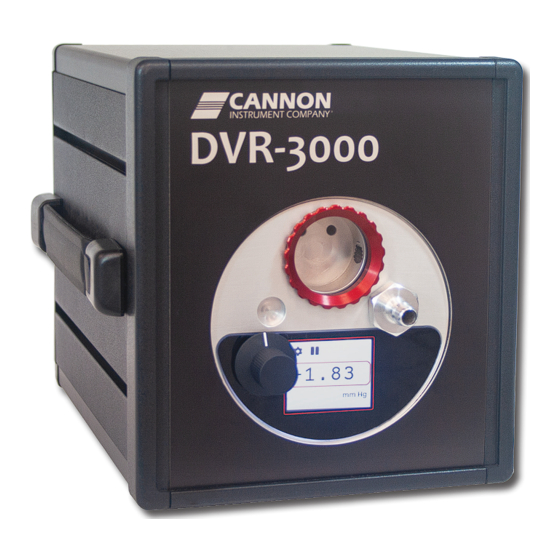

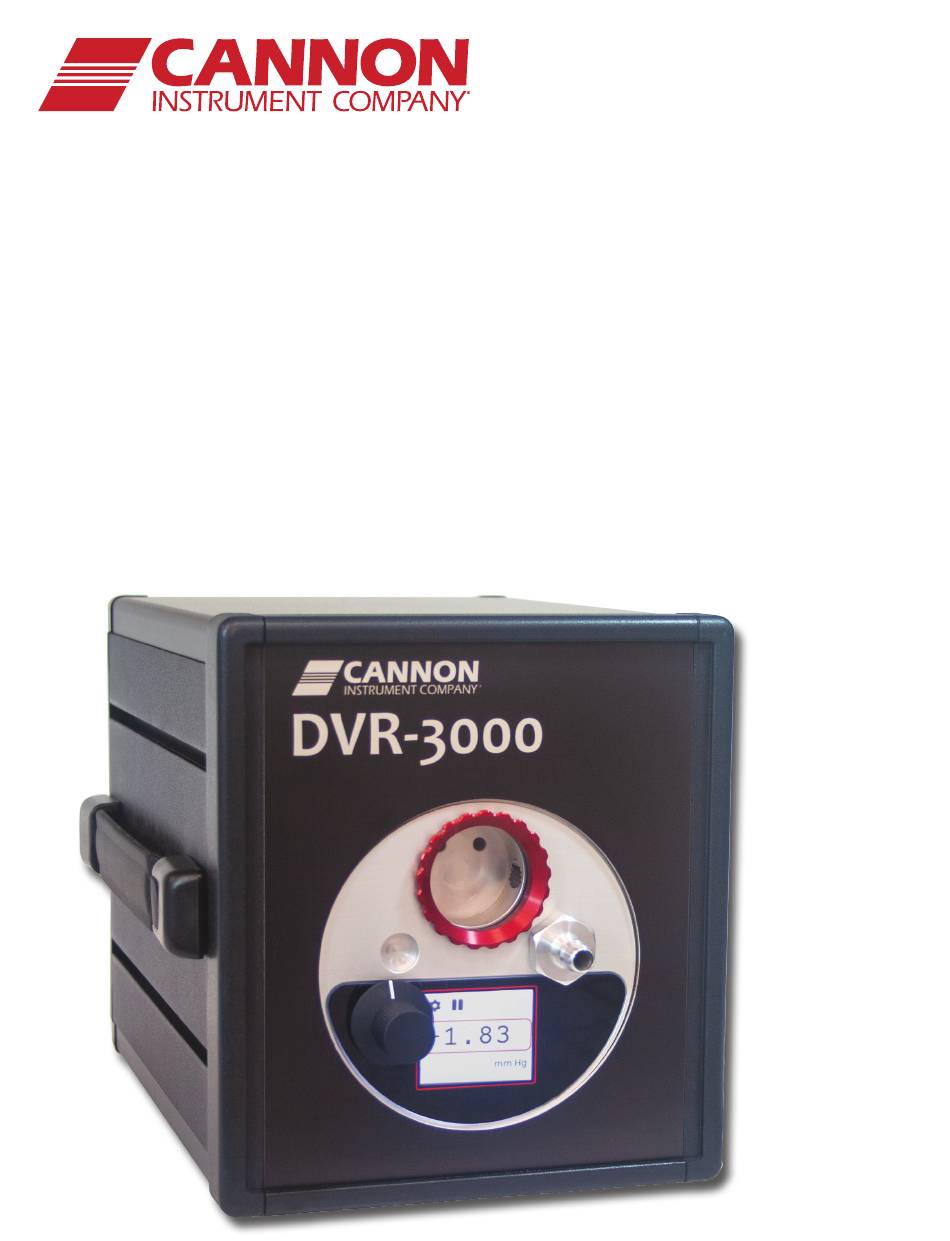

- Page 1 DVR-3000 Digital Vacuum Regulator Operation Manual...
- Page 2 Copyright Copyright ©2023 CANNON Instrument Company®. All rights reserved. Trademarks CANNON® and the CANNON logo are registered trademarks of Cannon Instrument Company®. Contact Address: CANNON Instrument Company® 2139 High Tech Road State College PA 16803, USA Phone: 1-814-353-8000; 1-800-676-6232 Fax:...
-
Page 3: Table Of Contents
Adjusting Set Point ........................9 Software update ......................11 Replacement Parts......................18 Warranty ........................19 Products Limited Warranty ......................19 Reagent and Chemical Warranty ....................19 Returning a Product to CANNON ....................19 Required Information ......................20 Cannon Instrument Company® | Contents... - Page 4 Figure 19: Drag and Drop .bin File for Upload .................. 16 Figure 20: Unsuccessful Upload Error Message ................17 List of Tables Table 1: DVR Specifications ......................2 Table 2: Packing List (Main Components) ..................4 Table 3: DVR Replacement Parts ..................... 18 Cannon Instrument Company®| DVR-3000 Operation Manual...
-
Page 5: Dvr Overview
3 LPM. Vacuum may be adjusted to other settings, from 95–450 mm Hg. The DVR is suitable for use with all CANNON temperature baths, including the CT and TE Series high and low temperature baths. -
Page 6: Specifications
Notes: Provides more information about the content that follows. Cautions: Alerts the operator to conditions that may damage equipment. Warnings: Alerts the operator to conditions that may cause injury. Cannon Instrument Company®| DVR-3000 Operation Manual... -
Page 7: Safety Precautions
The manufacturer is not liable for any loss or damage directly or indirectly caused by use of the instrument or its consequences. This manual pertains directly to the DVR-3000 Digital Vacuum Regulator. For details relating to other accessories or equipment, please refer to the appropriate manufacturer-supplied documentation. -
Page 8: Dvr Setup
Connect to Your Application DVR-3000 features an international standard G1/8 parallel port on the front of the unit. A simple push fit can be made with a rubber hose; alternatives may be fitted by simply unscrewing the fitting. -
Page 9: Vacuum Trap
Display Figure 2: DVR Front Panel Connections Vacuum Trap An integral vacuum trap is provided on the front of the DVR-3000 and is designed to prevent liquids from being pulled into the system and damaging the internal components. Caution: Avoid pulling liquid solvent past the vacuum trap as this may cause internal damage to DVR components and create a safety hazard. -
Page 10: Connecting Power Cable
1. Plug the power cord into the DVR rear panel IEC Power Inlet connector. See Figure 3. 2. Plug the other end of the cord into an appropriate electrical outlet. Figure 3: Rear View of Unit Cannon Instrument Company®| DVR-3000 Operation Manual... -
Page 11: Dvr Operation
To adjust the control settings to regulate other pressures, refer to section Adjusting Set Point. Accessories The DVR is designed for use in conjunction with the CANNON 3VM and 4VM vacuum manifolds. The 3VM manifold (part number 9726-V10), see Figure 4, has three valves and pairs with the CANNON CT-500 Series Constant Temperature Bath. -
Page 12: Dvr Cleaning & Maintenance
ON position. Vacuum System Leak If the vacuum system is leaking, check the vacuum trap cover to ensure it is tightly screwed into position. Cannon Instrument Company® | DVR Cleaning & Maintenance... -
Page 13: Controls Operation
Figure 6: Pause Pumping Selection Adjusting Set Point 1. For small adjustments of setpoint, rotate the knob to put the highlighting red box around the indicated pressure; see Figure Figure 7: Set Point Adjustment Selection Cannon Instrument Company® | Controls operation... - Page 14 At each step, the highlighted digit is changed by twisting the control knob left or right. 4. On completion, press the control knob once, to set the new point. Cannon Instrument Company®| DVR-3000 Operation Manual...
-
Page 15: Software Update
DVR-3000 Operation Manual Software update A potentially useful function, available since the introduction of the new, high-performance DVR-3000, is the availability of an over-the-air software update (OTA). In normal use, the OTA function is carefully hidden so it cannot be accidentally enabled. To use OTA, it will be necessary to open the unit to allow radio energy from a smartphone into the case. -
Page 16: Figure 9: App On App Store (Apple)
2. Download ESPTouch app from App Store or Google Play. See Figure 9 Figure Figure 9: App on App Store (Apple) Figure 10: App on Google Play (Android) Cannon Instrument Company®| DVR-3000 Operation Manual... -
Page 17: Figure 11: Select Gear
See Figure Figure 12: Settings Menu 5. When Wi-Fi window opens, rotate the control knob to highlight and press knob to Connect Ap select. See Figure Figure 13: Wi-Fi Setting Screen Cannon Instrument Company® | Software update... -
Page 18: Figure 14: Configure App Screen
7. In the ESPTOUCH app, your phone needs to be connected to the same Wi-Fi Network you intend Figure to use on the DVR. Input the Wi-Fi password and hit Confirm. See Enter Wi-Fi password Press Confirm Figure 15: Connect to Wi-Fi in ESPTouch Cannon Instrument Company®| DVR-3000 Operation Manual... -
Page 19: Figure 16: Esptouch Ip Address Display
Figure 17: DVR Network Information 10. On a PC connected to the same Wi-Fi network as the DVR, open a web browser and type in the DVR’s IP Address in the following format: https://IPAddress (example: https://192.168.50.236). Cannon Instrument Company® | Software update... -
Page 20: Figure 18: Choose A File Webpage
(Step Figure 18: Choose a File Webpage 12. If software update is available, CANNON instrument Company will send the user a binary file that can be uploaded on this screen. Drag and drop the .bin file, then click Upload. See Figure Figure 19: Drag and Drop .bin File for Upload... -
Page 21: Figure 20: Unsuccessful Upload Error Message
See its Wi-Fi connection or has powered off during the upload. Error Message Figure 20: Unsuccessful Upload Error Message 15. To retry, simply refresh the web page and redo the steps of this procedure. Cannon Instrument Company® | Software update... -
Page 22: Replacement Parts
DVR-3000 Operation Manual Replacement Parts Replacement parts are available from CANNON Instrument Company. Identify the part number in Table 3 when ordering DVR replacement parts. Direct requests for other required parts to CANNON Service Department at 814-353-8000 or email service@cannoninstrument.com. -
Page 23: Warranty
Company to conform to the weight, specifications and standards stated on the package. Returning a Product to CANNON Before returning a CANNON product for repair or service, make every attempt to identify the problem. If, after careful checking, the problem remains unidentified or unsolved, telephone CANNON Instrument Company (or the local service agent) to consult with a product specialist. -
Page 24: Required Information
Please contact CANNON before returning a product that could possibly contain hazardous material. Shipping Notification Products returned without CANNON’s prior authorization will not be accepted. The customer may be billed a testing fee if a product is returned to CANNON and found to be working properly. Cannon Instrument Company®| DVR-3000 Operation Manual... -
Page 25: Appendix A - Calibrating The Pressure Sensor
4. Check the display readings several times while the DVR display is relatively steady. If there is a difference greater than 0.06% of full scale between the instruments (in this case that would be ± 0.2 mm Hg) the differential gauge is out of calibration. If it is out of calibration, contact Cannon Instrument Company for assistance. - Page 26 CANNON INSTRUMENT COMPANY® 2139 High Tech Road | State College, PA 16803 | USA 800-676-6232 | 814-343-8000 | Fax: 814-353-8007 sales@cannoninstrument.com | www.cannoninstrument.com...
