Summary of Contents for Westlab 663-462C

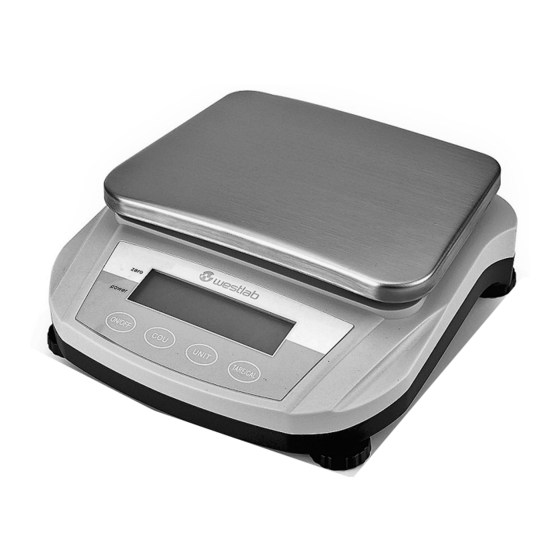

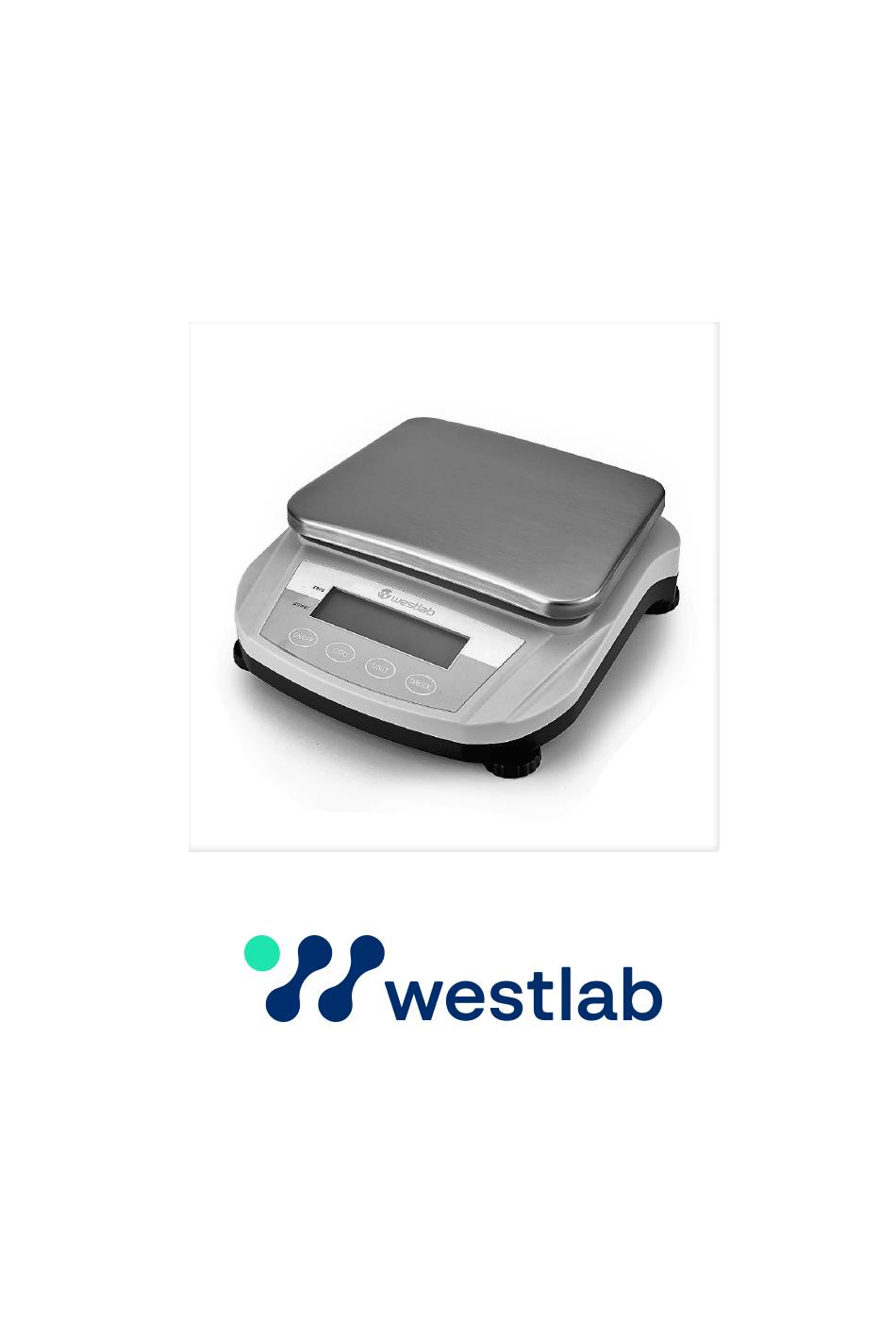

- Page 1 WESTLAB ANALYTICAL BALANCE Westlab 1-877-822-1455 sales@westlab.com...
- Page 2 • If you have any doubt about the set up, installation or functioning of the unit do not hesitate to contact Westlab. • This equipment is protected under a 2 year warranty.
-
Page 3: Table Of Contents
INDEX OF CONTENTS 1. SPECIFICATIONS…………………………………………………………3 2. DESCRIPTION…………………………………………………………….4 3. INSTALLATION…………………………………………………………….5 4. USE OF THE BALANCE………………………………………………….9 5. MAINTENANCE AND CLEANING………………………………………10... -
Page 4: Specifications
1. SPECIFICATIONS Precision balances MP series work on a high precision strain gauge load cell which implements high speed stabilization and high reliability. Technical parameters Code 663-462C 663-466C 663-512C Max. capacity (g) 2000 Tare range (g) 0-200 0-600 0-2000 Readability 0.1g... -
Page 5: Description
2. DESCRIPTION Structure Place the object to be weighed here Leveling screws Display panel Adjust to level the balance Shows the weighing results and parameter information Operation keys Used to turn the balance on and off, tare the balance and perform calibration. Name and function of the components Numeric value area Unit display area... -
Page 6: Installation
Operation key functions In weighing mode Press once and release Keep pressed for a while To turns the balance — on and off — To make calibration UNIT/COU To convert the units For piece counting mode — TARE To tare 3. - Page 7 Use the correct power supply and voltage with the balance. Using an incorrect power supply or voltage with the balance will lead to fire or trouble with the balance. Note also that if the power supply or voltage is unstable or if the power supply capacity is insufficient, it will not be possible to obtain satisfactory performance from the balance.
- Page 8 Check that all of the items indicated below are included in the package, and that nothing has been damaged: - Balance - Pan - Instruction manual - Power Cord If the balance or any component appear to be damaged due to transport, inform Westlab immediately so we can make a claim.
- Page 9 Turning the power on Insert the plug of the power cord into the DC connector at the back of the balance. Unlock the rechargeable battery by the switch at the bottom of the balance. Note: if you are not using the balance for a long period of time lock the battery to preserve it in good condition.
-
Page 10: Use Of The Balance
Place the calibration weight on the pan; Wait until the flashing weight value display changes to a steady state (e.g. 500.00 g). Remove the weight of the pan; “0.00” will be displayed and the balance will return to the weighing mode. Linearity Calibration If tolerance (error) after calibration is too high, then it is necessary to make linearity calibration. -
Page 11: Maintenance And Cleaning
Energy saving mode Press “ON/OFF” key, before entering the weight mode, Double press “TARE” key, then press “UNIT/COU” key to enter the setting mode. It will show “01-diu”. Press “TARE” to until it shows “07-LED”, press “CAL” enter the setting for backlight saving mode. - Page 12 Cleaning • Never use scouring pads or abrasive chemicals for cleaning metallic parts such as stainless steel, aluminium, coatings, etc. as they damage the balance and produce an early ageing of the equipment. • Use a fluff-free cloth dampened with soaped water that does not contain abrasives.
