Summary of Contents for Westlab 663-466

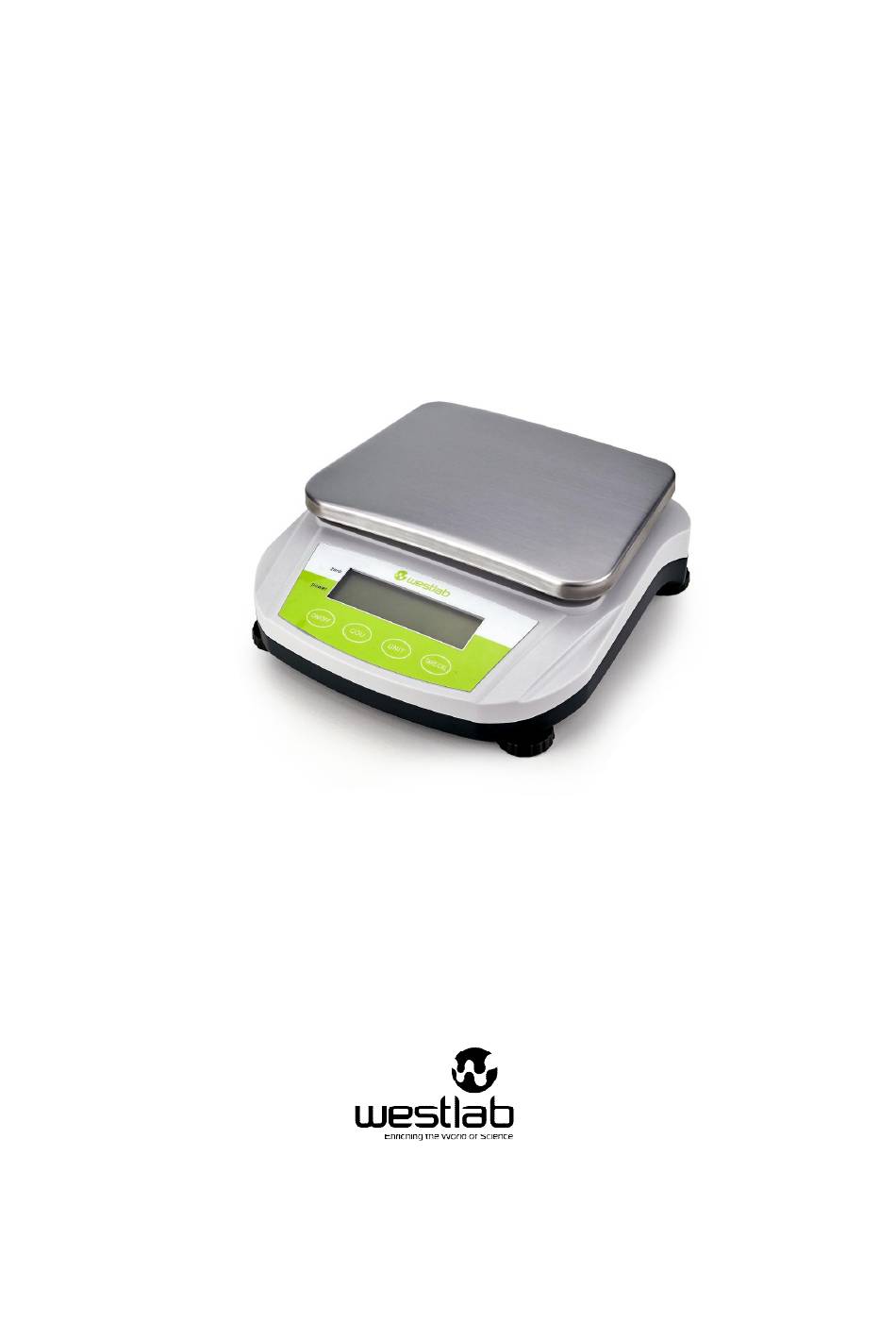

- Page 1 WESTLAB ANALYTICAL BALANCE Westlab PTY LTD 1800 358 101 sales@westlab.com.au...
- Page 2 Thank you for choosing this equipment. We sincerely wish that you enjoy your electronic balances, series YP. We highly recommend looking after this equipment according to what is stated in this manual. We develop its products according to the CE marking regulations as well as emphasizing the ergonomics and security for its user.
-
Page 3: Table Of Contents
INDEX OF CONTENTS 1. SPECIFICATIONS…………………………………………………………3 2. DESCRIPTION…………………………………………………………….4 3. INSTALLATION…………………………………………………………….5 4. USE OF THE BALANCE………………………………………………….9 5. MAINTENANCE AND CLEANING………………………………………10... -
Page 4: Specifications
1. SPECIFICATIONS Precision balances YP series work on high precision strain gauge load cell which implements high speed stabilization and high reliability. Technical parameters Code 663-466 Not available Not available 663-467 Max. capacity (g) 1000 5000 6000 Tare range (g) -
Page 5: Description

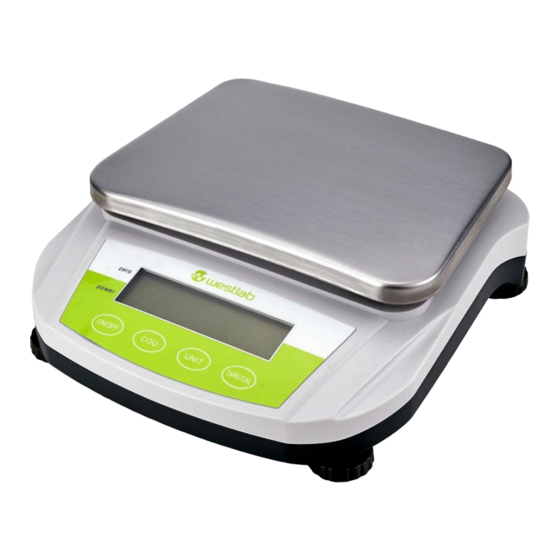

2. DESCRIPTION Structure Place the object to be weighed here Level screws Display panel Adjust to level the balance Shows weighing results parameter information Operation keys Used to turn the balance on and off, tare the balance and perform calibration. Name and function of the components Unit display area Numeric value area... -
Page 6: Installation
Operation keys function In weighing mode Press once and release Keep pressed for a while Turn the balance on and ON/OFF — Select the piece counting — function Tare function (set TARE/CAL Calibration function weighing value to 0) UNIT Select the weighing unit —... - Page 7 Use the correct power supply and voltage with the balance. Using an incorrect power supply or voltage with the balance will lead to fire or trouble with the balance. Note also that if the power supply or voltage is unstable or if the power supply capacity is insufficient, it will not be possible to obtain satisfactory performance from the balance.
- Page 8 ¤ Direct sunlight ¤ Dust, electromagnetic waves or a magnetic field Install the balance on a strong and stable flat table or floor. Placing the balance in an unstable site could lead to troubles with the balance or injury to users. When selecting the installation site, take into account the combined weight of the balance and the item to be weighed.
- Page 9 Turning the power on Insert the plug of the power cord into the DC IN connector at the back of the balance. Unlock the rechargeable battery by the switch at the bottom of the balance. Note: if you are not using the balance for a long period of time lock the battery to preserve it in good conditions.
-
Page 10: Use Of The Balance
2000 g 1000 g 3000 g 2000 g 5000 g 2000 g Before performing calibration, warm up the balance in advance. Keep pressed “TARE/CAL” key; The necessary weight value will flash. Place the calibration weight on the pan; Wait until the flashing weight value display changes to a steady state (e.g. -
Page 11: Maintenance And Cleaning
immediately to avoid damages in the balance. Energy saving mode Keep pressed COU key for 3 seconds to enter energy saving mode; press COU key and consecutively will be displayed: CO-Off: display backlit is off CO-1: backlit of display will be off after 1 second of no use. CO-5: backlit of display will be off after 5 seconds of no use. - Page 12 Always use original components and supplies. Other devices can be similar but they can damage the equipment. Cleaning Never use scourers or substances that can grate for cleaning metallic parts such as stainless steel, aluminium, coatings, etc. as they damage the balance and produce an early ageing of the equipment.
