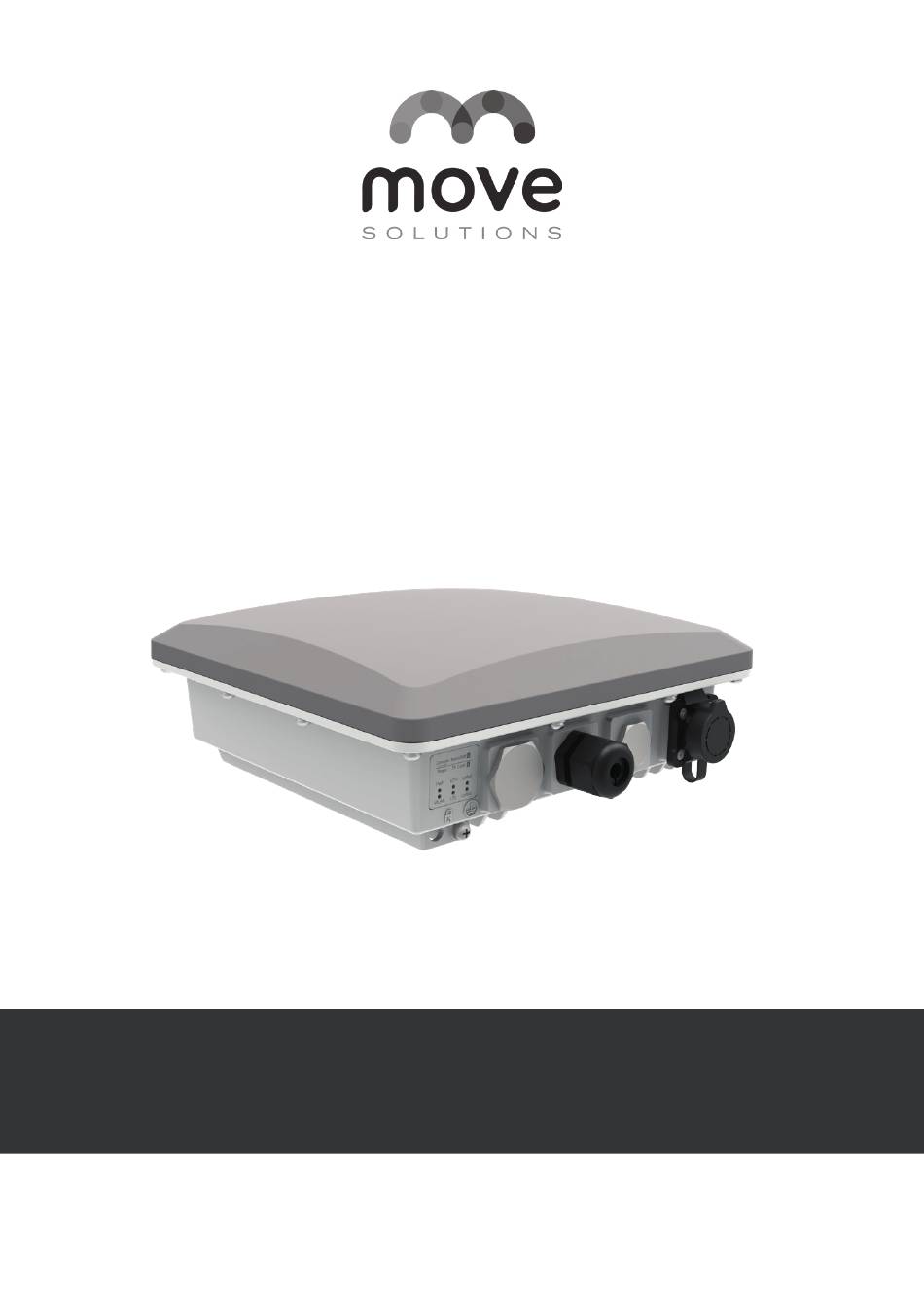

- Page 1 Gateway Pro Instruction Manual Quick installation guide and system operation Important safety, compliance and warranty information...
- Page 2 Move S.p.A. Piazza Cavour 7, 20121 Milan - Italy Via Guglielmo Lippi Francesconi 1256/J, 55100 Lucca - Italy P.IVA: 09887990969 MOVE SOLUTIONS CUSTOMER ASSISTANCE SERVICE Visit the website at www.movesolutions.it for contact information relating to office addresses and telephone numbers.
- Page 3 Instruction Manual English Read manual before product use LICENSE AND COPYRIGHT © 2021 Move S.p.A. All rights reserved. PUBBLICATION Printed in Italy July 2023 NOTICE OF PUBLICATION The information contained in this manual may be subject to change without notifica- tion.
-
Page 4: Table Of Contents
Index Warnings ..............FCC Compliance . - Page 5 ............6.7 Gateway pro electrical grounding .
-
Page 6: Warnings
For the correct and safe operation of the product, it is recommended to read and follow the instructions in this manual. Great attention should be paid to the following warnings. Move Solutions shall not be held responsible for inconveniences, damage or malfunctions due to lack of com- pliance to the prescriptions and suggested use in this manual. - Page 7 In case of deterioration or loss of this manual, a compliant copy may be requested by the customer from the manufacturer. For increased security, we suggest that you keep a copy of this manual in a place where it cannot be damaged or lost. Gateway Pro...
-
Page 8: Fcc Compliance
FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference • This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for com- pliance could void the user’s authority to operate the equipment. -
Page 9: Ised Compliance
This equipment complies with Industry Canada radiation exposure limits set forth for an uncontrolled environment. Cet équipement est conforme à l’exposition aux rayonnements Industry Canada limites établies pour un environnement non contrôlé. Gateway Pro... -
Page 10: Symbols And Provisions Used In The Documentation
Bold Bold text highlights an important point or keywords for understanding the context. Italic Text in italics is used for specific names for sensors, options of the Move Cloud Platform, or chapters of this manual. Instruction manual - EN... -
Page 11: General Description
It has multi backhaul with Ethernet, Wi-Fi and cellular connectivity. The Gateway Pro can also be equipped with 1 or 2 external LoRa high gain antennas and therefore is capable of supporting up to 8 or 16 chan- nels. -
Page 12: Technical Data
Technical data General data Computing MT7628, DDR2RAM 128 MB • Frequency: 2.4 GHz (802.11 b/g/b/) • RX Sensitivity: -95 dBm (Min) Wi-Fi feature • TX Power: 20 dBm (Max) • Operation Channels: 2.4GHz: 1-13 • Card: SX1303 Mini PCIe Card (connects maximum of two) •... - Page 13 • 54 Mbps: 16 dBm 802.11n (2.4G) • MCS0 (HT20): 18 dBm • MCS7 (HT20): 16 dBm • MCS0 (HT40): 17 dBm • MCS7 (HT40) : 15 dBm The max. power may be different depending on local regulations Gateway Pro...
-
Page 14: What's In The Box
What’s in the box All devices distributed by Move Solutions™ are tested and fine-tuned by the manu- facturer before shipping and delivery to the customer. Inside the package you should find: Number of pieces Components 1 pc. Gateway Pro 1 pc. (8ch model) LoRa Antenna 2 pcs. -
Page 15: Configuration
5.1 Access to the network Before proceeding with the installation on the Gateway Pro structure, it is necessary to choose the method for connecting to the Internet. Based on this methodology, different setup and powering procedures are required. These possible operations for accessing the network can be: •... - Page 16 STEP 2 Before you can insert the Nano Sim Card into the Gateway Pro you need to: • Insert the Nano SIM Card into a mobile device. • Access the general settings of the mobile phone. • Deactivate the access activation PIN code.
-
Page 17: Manual Apn Configuration With Private Sim
Pro to the PoE port of the PoE adapter using an Ethernet cable. Connect the PoE adapter to the power supply. Wait for the Gateway Pro to generate a WiFi network, connect to it with your PC with the following login information: •... -
Page 18: Lan Operation
Connect all antennas to the Gateway Pro (LTE, GPS, Wi-Fi, LoRa). Connect the ETH (PoE) port of the Gateway Pro to the PoE port of the PoE adapter using an Ethernet cable. Connect the LAN port of the PoE adapter to the Router with an Ethernet cable. - Page 19 If the Gateway Pro fails to connect to the network and is still Offline, we recommend repeating the procedure described above. If the problem exists, contact technical assistance by contacting Customer Service directly at support@movesolutions.it. After successfully completing this network access procedure, the Gateway Pro appliance is ready to be installed on the reference structure.
-
Page 20: Static Ip Address Configuration
5.7 Temporary network disservice The Gateway Pro device is able to store the data detected and transmitted by the sensors even in the event of a network outage and forward them to the Move Cloud Platform™... -
Page 21: Installation
The installation site of the Gateway Pro must be as high as possible with respect to the sensor system installed. • It is recommended to position the Gateway Pro so that it is in line of sight with each specific sensor to maximize radio coverage. •... -
Page 22: Installation On The Structure
Gateway Pro). 6.3 Installation on the structure For proper operation, the Gateway Pro device must be securely installed on a wall or pole using the appropriate installation kit supplied. Agree with the supplier company on the correct positioning of the Gateway Pro de- vice with respect to the monitoring area. - Page 23 If needed, they should be purchased separately. • The clamp’s back also has openings for hose clamps that are not included in the mounting kit. ountIng usIng Hose cLaMPs STEP 3 Hang up the enclosure and fasten it with two M6*12 screws. Gateway Pro...
-
Page 24: Protection From Weather Conditions
6.5 Protection from weather conditions To better protect the Ethernet cable gland and the antenna connector from the weather, you need to cover them with PVC tape. STEP 1 Clean the surface area of the connector that will be wrapped. Wrap a layer of PVC tape with a 50% overlap according to the rotation direction of the connector. - Page 25 50% overlap. Hold the tape in place with your hand for a few seconds. STEP 3 Wrap three additional layers with PVC tape with natural uncoiling force and a 50% overlap. Make sure to cover the head and the tail of the connector. Gateway Pro...
-
Page 26: Status Led Indication
6.6 Status LED indication After powering up and then starting the Ga- teway Pro, it will be possible to view the con- nection status and correct operation of the device through the LED interface located in the lower area of the device. Status indicator Power Indicator: The LED is on when the device is LED 1 (PWR) -
Page 27: Gateway Pro Electrical Grounding
In any case, comply with the national regulations in force in the individual countries. It is therefore recommended to use a 10 AWG or larger ground wire to connect the screw terminal on the lower right side of the Gateway Pro enclosure to the ground rail (bar). IMPORTANT •... -
Page 28: Maximizing Radio Performance
Maximizing radio performance When installing the Gateway Pro and the Sensors, it is important to follow some basic prescriptions to ensure the correct operation of the product. For optimal radio performance, the antenna should be oriented the same way as the gateway antenna, and the gateway should be on the side of the device. - Page 29 Remember to install the Gateway Pro away from busy areas where it could be damaged by or cause damage to animals or people. For example, don’t install the Gateway Pro on the floor unless it’s in a com- pletely secluded area.
-
Page 30: Overall Dimensions
Overall dimensions Please note that the drawings provided in this manual are not drawn to scale. The purpose of these illustrations is to assist you in understanding the various com- ponents and their relative positions. Therefore, it is essential to rely on the numerical measurements provided alongside the drawings for accurate dimensions. - Page 31 Upper view Right view Gateway Pro...
- Page 32 MOVE SOLUTIONS CUSTOMER ASSISTANCE SERVICE Visit the website at www.movesolutions.it for contact information relating to office addresses and telephone numbers. Instruction manual - EN...
- Page 33 LICENSE AND COPYRIGHT © 2023 Move S.p.A. All rights reserved. PUBBLICATION Made in Italy 07/2023 Gateway Pro...
- Page 34 Move S.p.A. Piazza Cavour 7, 20121 Milan - Italy Via Guglielmo Lippi Francesconi 1256/J, 55100 Lucca - Italy P.IVA: 09887990969...
