VOLTCRAFT HS-100, HS-300 - Hanging Scale Manual

Item No. 2176564 (HS-300),
Item No. 2178480 (HS-100)

Intended Use

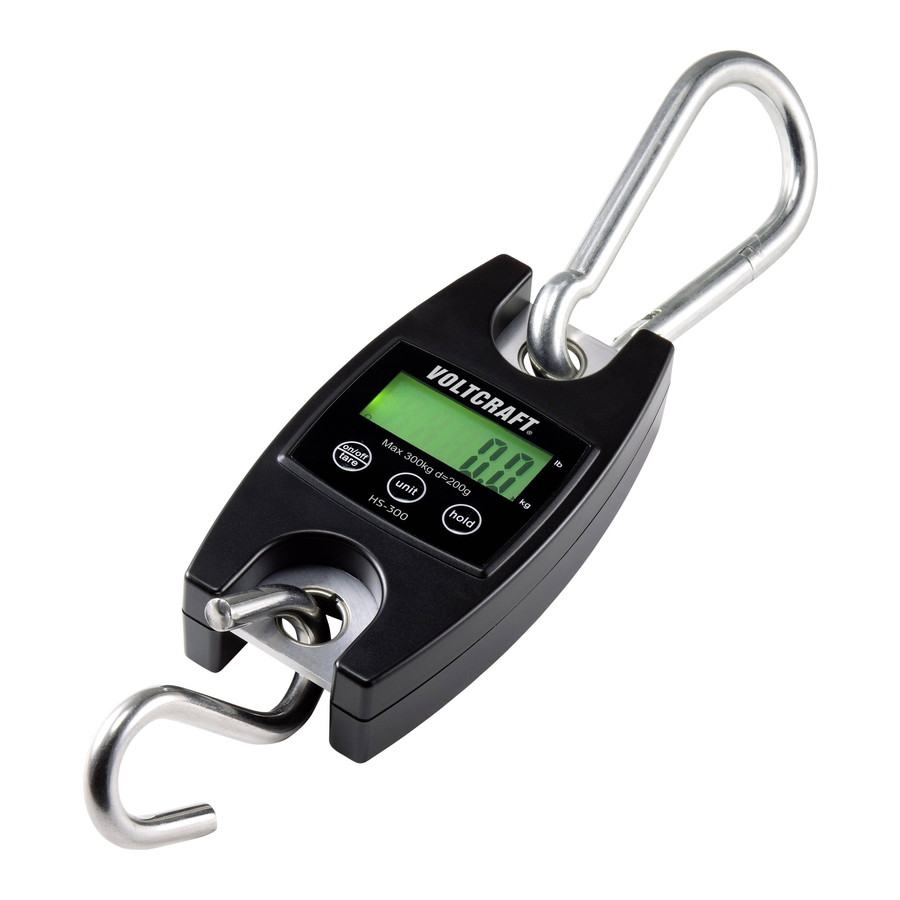

The product is a digital hanging scale with large back lit LCD display. It is designed to weigh vertically raised loads. It is powered by two AA type 1.5 V batteries and has tare, hold, and unit selection functions.

It is intended for indoor use only. Do not use it outdoors. Contact with moisture, e.g. in bathrooms, must be avoided under all circumstances.

For safety and approval purposes, you must not rebuild and/or modify this product. If you use the product for purposes other than those described above, the product may be damaged. In addition, improper use can result in other hazards. Read the instructions carefully and store them in a safe place. Make this product available to third parties only together with its operating instructions.

This product complies with the statutory national and European requirements. All company names and product names are trademarks of their respective owners. All rights reserved.

Operating Elements

1. Carabiner
2. LCD display
3. Button controls: on/off-tare, unit, hold
4. Hook
5. Battery compartment cover
6. Battery compartment

Insert Batteries

• Remove the battery compartment cover (5).
• Insert 2 x AA batteries into the battery compartment (6) matching polarities as shown inside the compartment.
• Replace the battery compartment cover (5).

→ Replace batteries when the low battery indicator shows.

Operation

Overload Warning! When the LCD shows "O-Ld" remove any attached load to avoid damage to the load cell, scale, and to prevent injury.

Weighing

• Hang the scale with hook (4) attached.
• Press the on/off (3) button to turn the power on.
• When the display (2) shows "0.0", hang the load to be weighed over the hook (4) and wait for the reading to stabilize.
• Press and hold the on/off button to turn the power off.

→ To preserve battery life, the scale will automatically power off after 120 seconds.

Hold

Press the hold button to pause the weight reading for 10 seconds.

→ The H symbol will appear on the display (2) in to indicate the hold function is being used.

Tare/Zero

This function can be used for weighing substances that require being put into a container such as powder or liquids.

• Put the empty container over the hook, wait a few moments for the reading to stabilize, then press the tare button.
• The display (2) will return to "0.0".
• Place/pour any objects/liquid to be weighed into the container.

Change Unit of Measurement

Press the unit button to switch between kg and lb units of measurement.

Care and Cleaning

• Disconnect any loads from product before each cleaning.
• Do not use any aggressive cleaning agents, rubbing alcohol or other chemical solutions as they can cause damage to the housing and malfunctioning.
• Clean the product with a dry, fibre-free cloth.

Technical Data

General

Input voltage: 2 x 1.5 V AA batteries

Current consumption: On: 15 mA
Off: 10 µA

Accuracy: ±0.5 %

Data lock function: yes

Tare function: yes

Material: Hooks: Stainless steel
Housing: Stainless steel and ABS

Units: kg, lb

Automatic power off: 120 s

LCD: Size: 51 x 21 mm

LCD Backlight: yes

Operating conditions: 0 to +30°C (<75% RH)
+30 to +40°C (<50% RH)
(non-condensing)

Storage conditions: -10 to +30°C (<75% RH)
+30 to +50°C (<50% RH)
(non-condensing)

Operating altitude: 0 - 2000 m

Dimensions (W x H x D): 82 x 152 x 37 mm (without hooks)

Weight: 542 g (without battery, incl. 2x hooks)

Item No. 2176564

Capacity: max. 300 kg (min. 500 g)

Resolution: 200g

Item No. 2178480

Capacity: max. 100 kg (min. 500 g)

Resolution: 100 g
