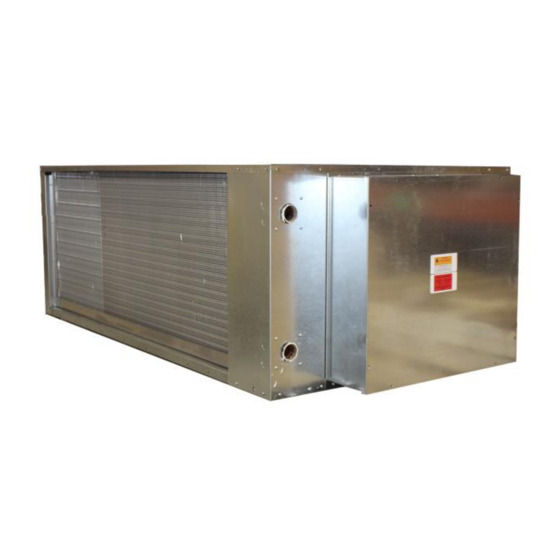

Page 1 Installation Operation Maintenance BULLDOG SpaceKeeper Horizontal Heat Pump Only qualified personnel should install, SpaceKeeper Horizontal service, and repair the equipment. Models: SKH008- SKH100 www.bulldogheatpump.com...
Page 2: Table Of Contents
BULLDOG Horizontal SpaceKeeper – Installation Operation Maintenance Manual Table of Contents INFORMATION ..............................2 INSTALLATION ..............................4 DELIVERY AND GENERAL INSTALLATION CHECKLIST ................... 6 OPERATION ................................9 OPERATION (Detailed) ............................12 COMMISSION & START UP..........................20 MAINTENANCE ..............................23 STANDARD WIRING DIAGRAM .......................... 24 For Technical Support: 1-647-210-3819 Notice: Before calling technical support, please have the model and serial number of the unit ready.
Page 3 BULLDOG Horizontal SpaceKeeper – Installation Operation Maintenance Manual ATTENTION IS NEEDED FOR THE FOLLOWING STATEMENTS: WARNING: Indicates a potentially hazardous situation which if not avoided could result in death or serious injury. CAUTION: Indicates a potentially hazardous situation which if not avoided could result in minor or moderate injury.
Page 4: Information
BULLDOG Horizontal SpaceKeeper – Installation Operation Maintenance Manual INFORMATION HANDLING Care must be taken in handling the horizontal unit and other accessories to ensure that this equipment does not sustain any damage. The protective shipping and packaging should remain on the unit until it is ready for installation. During construction, the unit must not be run and shall be sheltered from contaminants and debris such as drywall dust, wood chips, and paint that could damage the fan or block the cooling/heating coil which may result in diminished performance.
Page 5 BULLDOG Horizontal SpaceKeeper – Installation Operation Maintenance Manual REFRIGERANT CHARGE Unit Model R410A Charge (oz.) Unit Model 070 080 100 R410A Charge (oz.) Single circuit - Standard per circuit Dual compressors WEIGHT/DIMENSIONS/CLEARANCES Weight & Dimensions: Model Weight (lb) Dimensions(WxHxD) 22x15x29 28x18x38 35x22x45 Model...
Page 6: Installation
BULLDOG Horizontal SpaceKeeper – Installation Operation Maintenance Manual INSTALLATION The Installation of BULLDOG Horizontal SpaceKeeper units and accessories must be in accordance with local codes and all regulations of all relevant governing authorities having jurisdiction. The following installation procedures are recommended by the Manufacturer. It is the responsibility of the installing contractor to comply with all applicable codes and regulations.
Page 8: Delivery And General Installation Checklist
BULLDOG Horizontal SpaceKeeper – Installation Operation Maintenance Manual DELIVERY AND GENERAL INSTALLATION CHECKLIST The list below summarizes the steps required to successfully install a Horizontal SpaceKeeper unit. 1. Remove packaging and inspect the unit. Check for shipping damage or material shortage;...
Page 9 BULLDOG Horizontal SpaceKeeper – Installation Operation Maintenance Manual LOCATION 1. Determine future horizontal mount location with clearances shown in the dimensioned drawings. 2. Locate the unit in an indoor area. The air temperature surrounding and being supplied to the unit must be above 45F (7C) at all times.
Page 10 BULLDOG Horizontal SpaceKeeper – Installation Operation Maintenance Manual NOTE: Insulation of the water piping loop is not required except where piping runs through unheated areas or areas on the exterior of the building. The normal loop operating temperature range is 85F (29C) to 120F (49C). WIRING 1.
Page 11: Operation
BULLDOG Horizontal SpaceKeeper – Installation Operation Maintenance Manual OPERATION CAUTION: To avoid fouled machinery, extensive unit clean up, and void warranty, do not operate units without air filters in place, and do not operate units during the construction process. The BULLDOG Heat Pump provides year round cooling and heating as controlled by the unit thermostat or by a direct digital controller.
Page 12 BULLDOG Horizontal SpaceKeeper – Installation Operation Maintenance Manual COOLING OPERATION: Each heat pump has a water-cooled refrigeration circuit that operates only during the cooling mode. To enable cooling operation, MCO thermostats must be set to “Cool” mode. The ACO thermostats should be set to “Auto” or cool mode. In order for the cooling operation to become activated, the suite temperature must rise above the cool set-point temperature.
Page 13 BULLDOG Horizontal SpaceKeeper – Installation Operation Maintenance Manual RECOMMENDATIONS: 1. Set the thermostat fan to ON for continuous fan operation while your suite is occupied. This will help to ensure that the temperature is uniform throughout the suite. 2. In order to provide space conditioning while you are away, keep the thermostat system switch in the appropriate heat or cool mode.
Page 14: Operation (Detailed)
BULLDOG Horizontal SpaceKeeper – Installation Operation Maintenance Manual OPERATION (Detailed) CAUTION: To avoid fouled machinery, extensive unit clean up, and to maintain warranty, do not operate units without air filters in place, and do not operate units during the construction process. The BULLDOG Heat Pump provides year round cooling and heating as controlled by the unit thermostat.
Page 15 BULLDOG Horizontal SpaceKeeper – Installation Operation Maintenance Manual The unit circuit board incorporates six relay outputs with the following uses:  K1 – Auxiliary relay for cooling valve on a two valve unit or heat valve on a dehumidification unit. ...
Page 16 BULLDOG Horizontal SpaceKeeper – Installation Operation Maintenance Manual FAN OPERATION 1. A call on “G” for fan on the thermostat terminal strip will cause the fan to operate continuously on low fan speed through K5 on multi speed units. 2. A call on “W” for heat on the thermostat terminal strip will also cause the fan to operate on low speed.
Page 17 BULLDOG Horizontal SpaceKeeper – Installation Operation Maintenance Manual ignore period, the compressor will immediately be turned off. Low pressure switch opens at 60 ± 3 psi and closes at 90 ± 3 psi. e. Air temperature sensor Ta – Sensor Ta will prevent compressor start-up if the air flowing through the unit is below 55F.
Page 18 BULLDOG Horizontal SpaceKeeper – Installation Operation Maintenance Manual hours will put the refrigeration system into a full and hard lockout, requiring a power down to reset. If two or less switch open shutdowns occur within a 24 hour period, they will be erased from memory and will not contribute to a future hard lockout.
Page 19 BULLDOG Horizontal SpaceKeeper – Installation Operation Maintenance Manual NOTE: The last flash code will be maintained in memory for one week or until the unit controls are powered down. The flash code will continue until the problem has cleared and the compressor has been put into operation.
Page 20 BULLDOG Horizontal SpaceKeeper – Installation Operation Maintenance Manual SHUTDOWN OUTPUT The CGC board has an optional input terminal strip that allows for two types of remote shutdown. These are a) compressor shutdown and b) unit shutdown. The advantage of these inputs is that many units can be connected in parallel and when powered by an independent 24V AC signal, one or both of these actions can be implemented.
Page 21 BULLDOG Horizontal SpaceKeeper – Installation Operation Maintenance Manual ALTERNATE FUNCTIONS Dehumidification cycle – When provided with an appropriate thermostat/humidistat, as well as dehumidification software and additional components, the CGC unit will provide space dehumidification. This is an optional feature. Two compressor units – All units larger than 5 tons include single speed belt drive fans. These twin compressor units are controlled individually through on board relays K4 and K6 (this is a specially programmed board that uses relay K6 to activate the second compressor, rather than it being used to activate high fan speed).
Page 22: Commission & Start Up
BULLDOG Horizontal SpaceKeeper – Installation Operation Maintenance Manual COMMISSION & START UP SYSTEM FLUSHING: Proper system cleaning and flushing is an important aspect of the commissioning and start up procedure for BULLDOG units. Ensure the system has been flushed properly. This prevents fouling of the unit’s heat exchangers.
Page 23 BULLDOG Horizontal SpaceKeeper – Installation Operation Maintenance Manual CLEAN UNIT FILTERS: Confirm that the unit filters that are being used are clean. This contributes to the proper operation of the unit by ensuring that there is adequate air flow across the coil. SAFETY NOTE: In the following part of the procedure it will be necessary to access the areas around the electrical wiring and the circuit board.
Page 24 BULLDOG Horizontal SpaceKeeper – Installation Operation Maintenance Manual NOTE: This equipment is designed for indoor installation ONLY. START-UP To register the unit warranty proper start-up is required by a factory approved technician. The following items must be recorded and returned to the factory to register the warranty. The factory reserves the right to refuse warranty if these details are not provided.
Page 25: Maintenance
BULLDOG Horizontal SpaceKeeper – Installation Operation Maintenance Manual MAINTENANCE WARNING: To prevent injury or death due to electrical shock or contact with moving parts, disable the unit using the disconnect before servicing. INSPECT FILTERS: Establish a regular maintenance schedule. Clean filters frequently and replace as required. A vacuum can be used to clean filters, as well as the surface of coil components.
Page 26: Standard Wiring Diagram
BULLDOG Horizontal SpaceKeeper – Installation Operation Maintenance Manual STANDARD WIRING DIAGRAM © Copyright 2018 CGC Group Inc. IOM Manual is Subject to Change without Notice Last Revised November 2019...
