Riser and Cabinet Installation

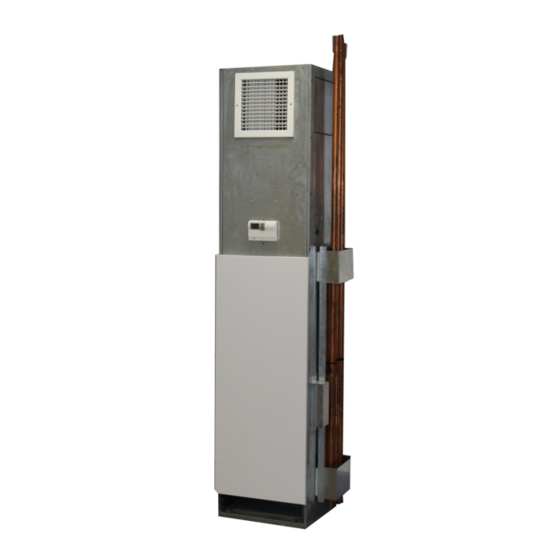

Vertical Stacked BULLDOG Heat Pump (Universal Cabinet)
InnKeeper/HomeKeeper
Models: IK 008 – 018
HK 020 – 036
www.bulldogheatpump.com
© Copyright 2013 CGC Group Inc.
Installation Manual is Subject to Change without Notice - Last Revised Aug 15 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the InnKeeper IK 008 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bulldog Security InnKeeper IK 008

  • Page 1 Riser and Cabinet Installation Vertical Stacked BULLDOG Heat Pump (Universal Cabinet) InnKeeper/HomeKeeper Models: IK 008 – 018 HK 020 – 036 www.bulldogheatpump.com © Copyright 2013 CGC Group Inc. Installation Manual is Subject to Change without Notice - Last Revised Aug 15 2017...
  • Page 2: Table Of Contents

    Table of Contents INFORMATION ................................1 HANDLING ..................................1 STORAGE ..................................1 GENERAL INSTALLATION CHECKLIST ..........................3 LOCATION ..................................4 CABINET PLACEMENT ..............................4 ELECTRICAL WIRING ................................ 7 DRYWALLING .................................. 7 Cross reference to related documents: • Vertical Stacked Bulldog Heat Pump Guide Specifications •...
  • Page 3: Information

    BULLDOG HEAT PUMP Vertical Stacked – Installation Manual INFORMATION HANDLING Care must be taken in handling the cabinet and risers and other accessories to ensure that this equipment does not sustain any damage. It is recommended that the cabinet and risers be transported individually on a two-wheel cart.
  • Page 4 BULLDOG HEAT PUMP Vertical Stacked – Installation Manual UNIT CLEARANCE The vertical stacked product has a sound- dampening front cover panel. The sound- dampening panel slides off with minimal service clearance. However, in the event of chassis replacement, the front service entrance must permit straight horizontal removal of the chassis.
  • Page 5: General Installation Checklist

    BULLDOG HEAT PUMP Vertical Stacked – Installation Manual INSTALLATION The information below details the installation procedure for a vertical stacked unit riser and cabinet. Please read this document in its entirety prior to proceeding with the installation. Specific site conditions may warrant variations in locations and dimensions. GENERAL INSTALLATION CHECKLIST 1.
  • Page 6: Location

    BULLDOG HEAT PUMP Vertical Stacked – Installation Manual LOCATION 1. Determine cabinet location using the optional manufacturer-supplied template. 2. Locate core holes for risers using supplied template. 3. Locate the unit in an indoor area. The ambient temperature surrounding the unit must not be less than 45°F (7°C). Do not locate the unit in areas that may be subjected to freezing temperatures.
  • Page 7 BULLDOG HEAT PUMP Vertical Stacked – Installation Manual Swaged ends Condensate Riser RISER BUNDLE INSTALLATION 1. The supply and return risers are standard type “M” copper. Type “L” copper is optional. The condensate riser is type “M” copper. 2. Risers are factory swaged expanded top end to accept risers from the unit above and to minimize field brazing.
  • Page 8 BULLDOG HEAT PUMP Vertical Stacked – Installation Manual Figure 7 © Copyright 2017 CGC Group of Companies, Inc. Installation Manual is Subject to Change without Notice - Last Revised Aug 15, 2017...
  • Page 9: Electrical Wiring

    BULLDOG HEAT PUMP Vertical Stacked – Installation Manual ELECTRICAL WIRING Main Wiring Electrical connections are made to the cabinet. Cabinets have knockouts for a standard single gang electrical box. Receptacle may be included with unit. Box must not protrude into cabinet more than ½”...
