CEN-TECH 96308 Owner's Manual & Safety Instructions

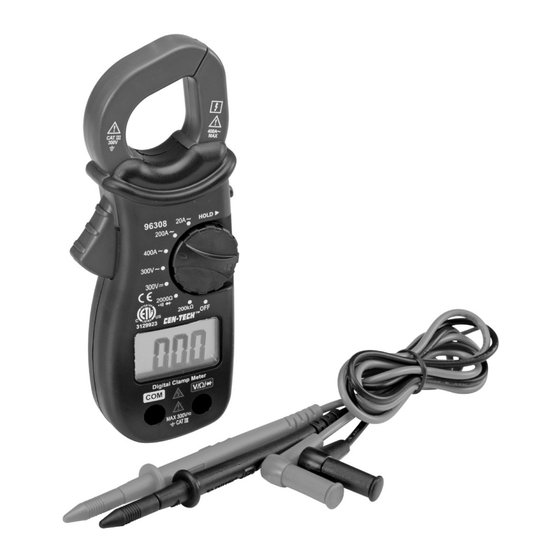

6 function mini clamp meter
Hide thumbs Also See for 96308:
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's Manual & Safety Instructions
Owner's Manual & Safety Instructions
Save This Manual
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the back
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the back
of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep
this manual and the receipt in a safe and dry place for future reference.
6 FUNCTION MINI CLAMP METER
Email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2007 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
23h
96308
