Audioarts DSP Voice Processor/Controller
Included with your Voice 1 package is a document containing a web link and a QR code.
You can scan the code or enter the link into your computer to be directed to a location on
our website from which you can download this Quick Start, the Voice 1 manual and the
Voice 1 Remote Application, which you will need in order to fully configure the Voice 1's
EQ and Dynamics.
Install and connect the VOICE 1:

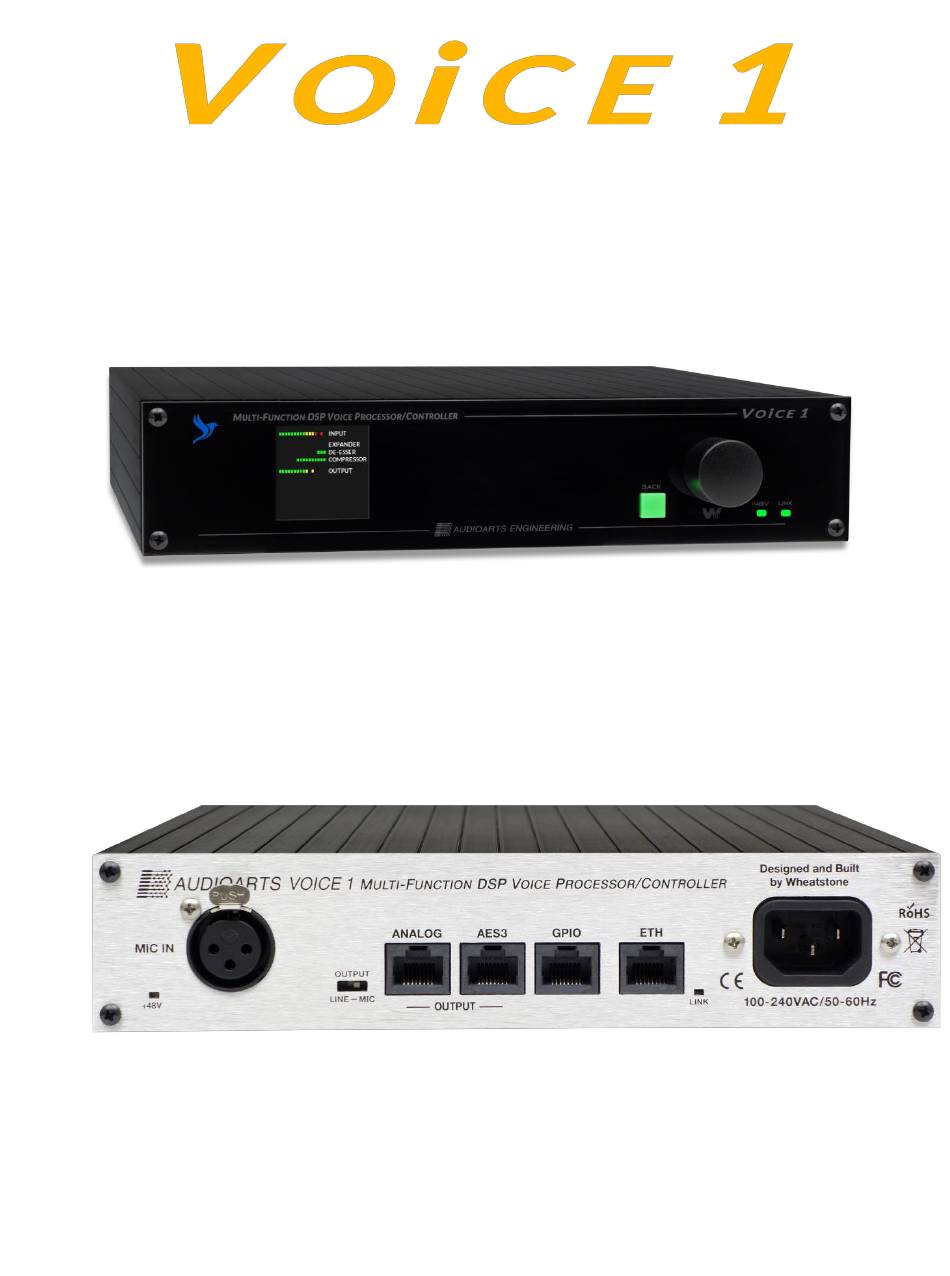

1. The Voice 1 is a half-width, 1RU device and may be rack mounted using a single-
or dual-mount rack panel, available from Wheatstone. It may also stand alone or
sit on an industry-standard rack shelf. If using a shelf or rack mount, you may
install it using only two screws as long as the screws are installed using the
bottom holes of the shelf or rack mount to prevent undue stress on the panel.
Quick Start Guide
Version 1.0.0 – July 2023
1
Advertisement
Related Manuals for Vorsis VOICE1
Summary of Contents for Vorsis VOICE1
- Page 1 Audioarts DSP Voice Processor/Controller Quick Start Guide Version 1.0.0 – July 2023 Included with your Voice 1 package is a document containing a web link and a QR code. You can scan the code or enter the link into your computer to be directed to a location on our website from which you can download this Quick Start, the Voice 1 manual and the Voice 1 Remote Application, which you will need in order to fully configure the Voice 1’s EQ and Dynamics.
- Page 2 2. Connect a microphone to the XLR female microphone input on the rear panel. 3. Connect either the analog out or AES digital out RJ- 45 connector to your desired signal path. If using the Analog output, select whether you wish the output to be presented at line level or mic level.
- Page 3 The default IP address of the Voice 1 is 192.168.87.131. It’s possible that you have a Blade or PC driver in your system using that IP address and you don’t want to plug the Voice 1 into your Wheatnet network and cause an IP address conflict, so please take the time to ensure that there won’t be a conflict or change the IP address of the unit before joining it to your network.
- Page 4 When this is done, the following window will pop up: Voice 1 Device Management Window Next, click the “Add” button and a new dialog box will appear. This is how new devices are added or the configuration of existing devices modified. Add Device Window Enter a unique nickname for the Voice 1 unit you are adding and enter its IP address.
- Page 5 Next, take a look at the top of the GUI where you’ll find the Status and Device indicators. The status indicator tells you whether you are “Online” with the device listed in the Device field. To go online with the processor so that you can make EQ and dynamics adjustments, click the button to the left of the Status indicator.
- Page 6 Input/Output Screen Input/Output Screen There are several input/output options available on this screen. Most are fairly straightforward and are discussed in detail in the Voice 1 Manual. But there are a few we need to touch on in this quick start guide. To adjust the on- screen encoder knobs, Input Gain...
- Page 7 If you need a 1ms AES67 stream for use with a non-Wheatnet device, turn on the AES67 Streaming option. The system will present you with the information you need to configure the receiving AES67 device including the assigned multicast address, port number and packet type you will need to enter there: AES67 Settings If you are just using the Voice 1’s AES or Analog outputs, you can turn the streaming off.
