Summary of Contents for Decimator DMON-4S

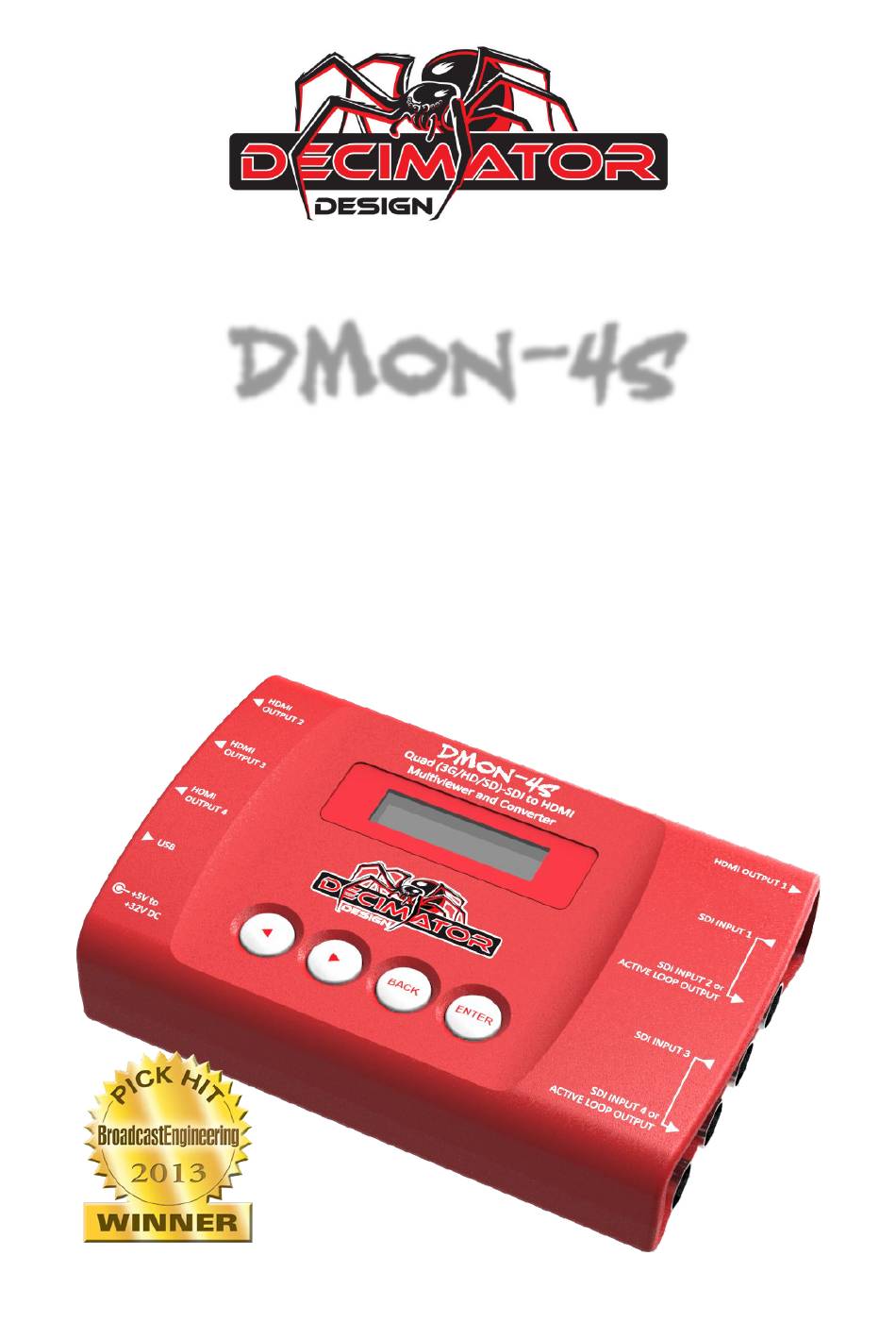

- Page 1 DMON-4S Quad (3G/HD/SD)-SDI to HDMI Multi-Viewer and Converter Operating Manual for Firmware Version 2.0...
- Page 2 Thank you for purchasing the DMON-4S Quad (3G/HD/SD)-SDI to HDMI Multi-Viewer and Converter. The DMON-4S is a truly portable converter, which incorporates our new easy to use LCD and button control system. The DMON-4S features 4 independent mini HDMI outputs that can each output any of the four (3G/HD/SD)-SDI inputs or a Multi-View of all them.
-
Page 3: Main Menus
2. Control / HDMI Out2 Type (Parameter) This is the current HDMI output type for output 2. This sub menu operates the same as Control / HDMI Out1 Type. DMON-4S OPERATING MANUAL VERSION 2.0 Copyright © 2015-2023 Decimator Design Pty Ltd, Sydney, Australia E&OE... - Page 4 This enables a loop through copy of input 3 on BNC 4. When the sub menu is highlighted, press ENTER to toggle through the following selections: 1.) No 2.) Yes DMON-4S OPERATING MANUAL VERSION 2.0 Copyright © 2015-2023 Decimator Design Pty Ltd, Sydney, Australia E&OE...
-
Page 5: Multi-Viewer
E.g. for a 1920x1080i60 format showing 4 windows there are 32 layouts tied to this output, if the number of windows is changed to 3 there are also 32 separate layouts attached to this setting. DMON-4S OPERATING MANUAL VERSION 2.0 Copyright © 2015-2023 Decimator Design Pty Ltd, Sydney, Australia E&OE... - Page 6 7. Multi-View / Format Status (Parameter) When an input is detected the DMON-4S will display the format detected in the top left of each window by default unless the location has been modified via the USB Control Panel. When the sub menu is highlighted, press ENTER to toggle through the following selections: 1.) Show for 5 sec...
-
Page 7: Background Color
7. Magenta (Transparent 50%) 16. Yellow (Transparent 25%) 25. White (Transparent 0%) 8. Yellow (Transparent 50%) 17. White (Transparent 25%) 9. White (Transparent 50%) 18. Black (Transparent 0%) DMON-4S OPERATING MANUAL VERSION 2.0 Copyright © 2015-2023 Decimator Design Pty Ltd, Sydney, Australia E&OE... - Page 8 This enables the UMD on Multi-View Window 2. When the sub menu is highlighted, press ENTER to toggle through the following selections: 1.) Yes 2.) No DMON-4S OPERATING MANUAL VERSION 2.0 Copyright © 2015-2023 Decimator Design Pty Ltd, Sydney, Australia E&OE...
- Page 9 This enables a vertical flip on Multi-View Window 3. When the sub menu is highlighted, press ENTER to toggle through the following selections: 1.) No 2.) Yes DMON-4S OPERATING MANUAL VERSION 2.0 Copyright © 2015-2023 Decimator Design Pty Ltd, Sydney, Australia E&OE...
- Page 10 Press the < and > buttons to move left or right through the following cycle types: 1.) None 2.) Output Select 3.) MV Windows 4.) MV Layouts DMON-4S OPERATING MANUAL VERSION 2.0 Copyright © 2015-2023 Decimator Design Pty Ltd, Sydney, Australia E&OE...
-
Page 11: Service / Warranty
Decimator Design, with shipping charges prepaid. Decimator Design shall pay for the return of the product to the Customer if the shipment is to a location within the country in which the Decimator Design service centre is located. The Customer shall be responsible for paying all shipping charges, insurance, duties, taxes, and any other charges for products returned to any other location.
