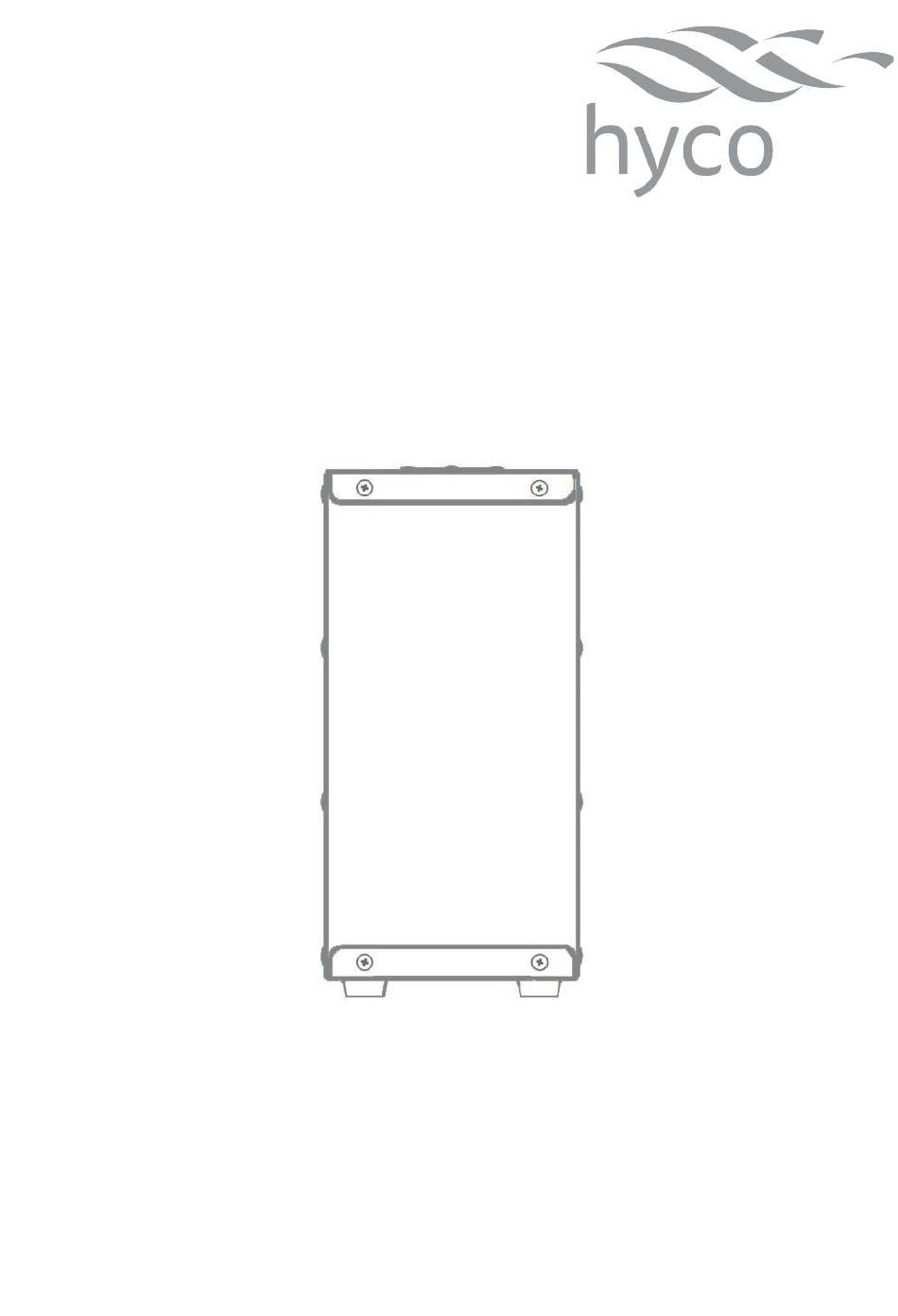

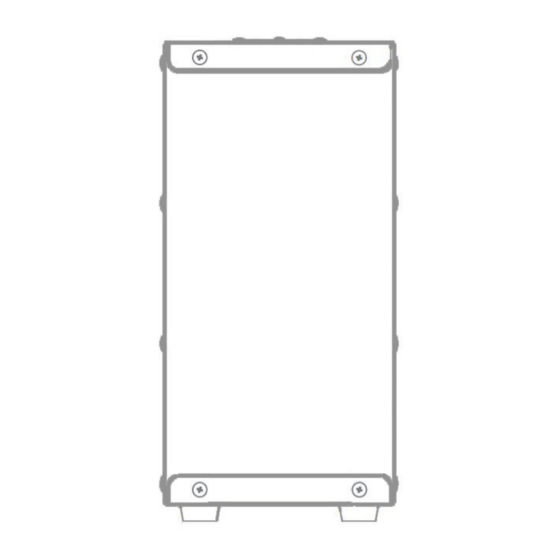

- Page 1 Product Instruction Manual Sapphire SAPUC2 Undersink Chiller v23.3.5...
-
Page 2: Important Safety Points
Overview Thank you for purchasing a Sapphire Undersink Water Chiller. When used with a counter mounted tap and filter it will provide instant, high quality chilled drinking water. Please read and follow these instructions to ensure that installation and operation are as simple and safe as possible. - Page 3 This appliance is intended to be permanently connected to the water mains and should not be connected by a detachable hose-set. Only connect this appliance to a water supply that meets the min/max pressures specified in the specifications section of this manual. Do not locate the appliance where the consequences of a water leak could be unusually serious.
-
Page 4: Installation
1. Installation When positioning the appliance, ensure the supply cord is not trapped or dam- aged. Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. Keep ventilation openings in the appliance enclosure clear of obstruction. To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions. -
Page 5: Plumbing Connection
2. Plumbing Connection This appliance is intended to be permanently connected to the water mains and should not be connected by a detachable hose-set. Only connect this appliance to a water supply that meets the min/max pressures specified in the specifications section of this manual. •... -
Page 6: Electrical Connection
3. Commissioning • Open the cold water outlet and then turn on the cold supply to the appliance. • Wait until a smooth flow of water is dispensed to ensure any air is purged from the appliance before closing the tap and checking all water connections for leaks. 4. -
Page 7: Operation
5. Operation • The appliance can be set to deliver chilled water temperatures from 8 °C to 12 °C. • To adjust the temperature setting of the chilled water, a flat headed screwdriver is required to turn the screw located at the rear of the appliance. •... -
Page 8: Cleaning And Maintenance
6. Cleaning and Maintenance This appliance should only be installed and maintained by a competent person in accordance with any local electrical and plumbing regulations. Ensure any future maintenance or modifications to the plumbing system also complies with the guidelines in these instructions. Keep records of maintenance and ensure any future occupier of the building is fully aware of the content of these instructions. - Page 9 Sanitising • First drain down appliance as per the draining section. Ensure the drain nut and seal are replaced before adding the sanitising fluid to the tank via the ‘WATER IN’ fitting at the top of the appliance. • Reinstall the appliance and recommission as per commissioning section. •...
-
Page 10: Specification
7. Specification Model SAPUC2 Power 140 W Initial draw off Cooling capacity 14L/H < 10°C IP rating IP20 Voltage 230 V Min supply pressure 0.1 MPa (1 bar) Max supply pressure 0.3 MPa (3 bar)* Connections inlet/ outlet 1/4” push fit Refrigerant R290/25g Operating ambient min/ max... - Page 11 8. Guarantee and Service Policy This product is covered by a standard parts or replacement warranty for a period of 1 year from the date of purchase. If there is a manufacturing defect within the warranty period we will send spare parts, repair and return the unit or, at our discretion, supply a replacement product.
- Page 12 In order to underline the duty to dispose of this equipment separately, the product is marked with a crossed out dustbin. Hyco Manufacturing Ltd Normandy Court Express Way...
