Fogco SNAP-FAN SF.P12BLDC24 Installation Instructions

FOGCO
600 S 56th St, Ste 9, Chandler, AZ 85226
480-507-6478
Read carefully before attempting to assemble, install, operate, or maintain the product described. Protect
y ourself and others by observing all safety information. Failure to comply with instructions could result in
personal injury and/or property damage. Retain instructions for future reference.
1. Upon receiving shutter/dampers, check for both
obvious and hidden damage. If damage is found,
record all necessary information on the bill of lading
and file a claim with the freight carrier. Check to make
sure all parts of the shipments are accounted for.
2. Proper handling of shutter/damper during installation is
essential to ensure normal operation.
• Lift or handle the damper by the frame, do not lift
using the blades or linkage. When lifting multiple
sections assembled, use sufficient support evenly
distributed. Do not drag, apply excessive bending,
racking or twisting.
• Do not install shutter/damper leaning forward or
backward.
• Do not install screws or any other mounting hardware
into the shutter/damper frame that will interfere with
the shutter/damper blades and prevent them from
opening and/or closing properly.
• Mounting hardware, caulking and other necessary
installation materials are not included.
• Installed shutter/damper must be free of
misalignment, such as squeezing, stretching, out of square, racking, twisting, etc...These conditions will
prevent the damper from operating properly.
3. When installing a shutter/damper:
• We generally recommend the hole opening to be ½" larger than the inside dimension (ID) of the width
and height of the shutter/damper.
• The shutter/damper frame should be mounted level and squarely on the outside wall. Care should be
taken not to twist the shutter/damper frame. Never cover shutter/damper with siding or masonry work.
Shutter should be mounted so it can be removed any time in case of damage.
• Shutter/damper should operate as freely after installation as it did before.
• Caulking compound is recommended between shutter/damper frame edges and the wall.
• We recommend cleaning and lubrication shutter/damper at the same time that the fan is lubricated and
cleaned.
All products manufactured are warranted by Fogco to be free from original defects in workmanship for a period of one year from date of shipment, under conditions of normal use and service. Fogco will replace or
repair any defective parts upon return to our plant, freight prepaid. This limited warranty will, in no way, include the payment of labor charges for field replacement of defective parts, installation, repairs of adjustments, or
any other work done. Back charges will not be accepted for any reason unless Fogco has given prior written permission, nor will Fogco be responsible for consequential damages of any character, no limited warranty
expressed or implied will supersede the foregoing.

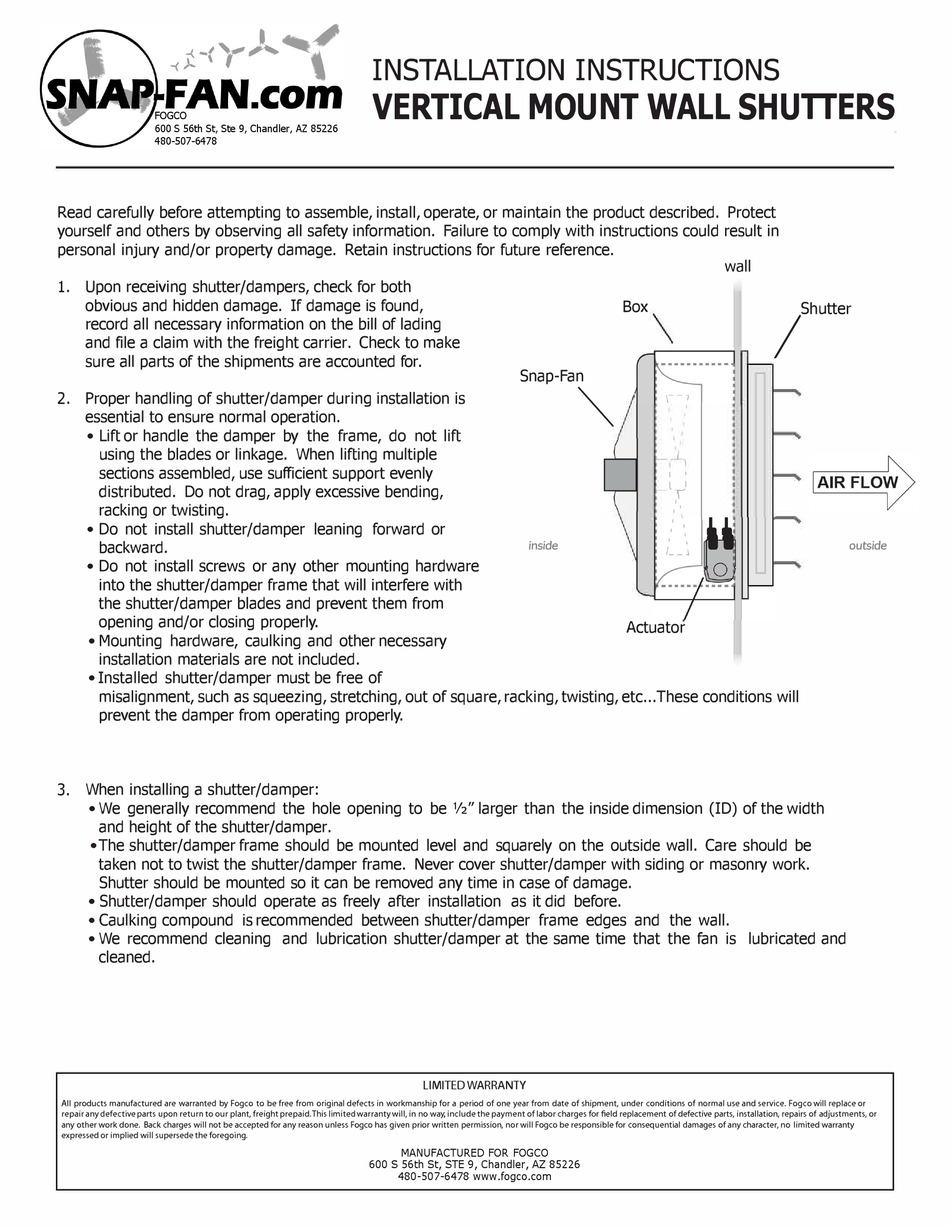

INSTALLATION INSTRUCTIONS
VERTICAL MOUNT WALL SHUTTERS
Snap-Fan
inside
LIMITED WARR ANTY
MANUFACTURED FOR FOGCO
600 S 56th St, STE 9, Chandler, AZ 85226
480-507-6478 www.fogco.com
wall
Box
�
'
I
�T
l I
Actuator
/Shutter
outside
