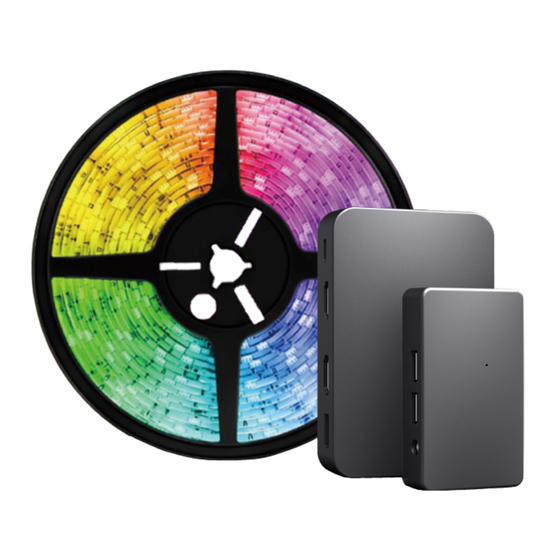

- Page 1 KOGAN SMARTERHOME™ TV LED BACK LIGHT (WITH HDMI SYNC BOX) KATVLTHDMIA...
-
Page 3: Safety And Warnings
SAFETY & WARNINGS Read this user guide and follow all the safety instructions before installation and first use. • The product is not waterproof. • Use the product with the provided power adapters only. • Be cautious of static electricity during installation and usage. •... - Page 4 COMPONENTS HDMI sync box HDMI 2.0 cable USB cable LED light strip Controller Clip (x10) Power adapter (x2) User guide...
- Page 5 OVERVIEW Power adapter Video source Set-top box Streaming device Media player Gaming console Power adapter Note: This kit includes 1 HDMI cable. Additional HDMI cables will need to be purchased separately.
- Page 6 HDMI Sync Box HDMI IN DATA OUT POWER HDMI OUT Video source Set-top box Streaming device Media player Gaming console HDMI IN Connect to media source (streaming device, gaming console etc.) HDMI OUT Connect to TV DATA OUT Connect to controller.
- Page 7 Controller HDMI Sync Box Power Button Power Adapter Sync Button LED Light Strip • Power Button Press to turn the system On/Off • Press and hold the Power button for 5 seconds until the green indicator is off. After approximately 1-2 seconds, the green indicator will begin flashing.
-
Page 8: Installation
INSTALLATION Step 1. • Unbox the product checking all items listed in the components list are present. • Unroll and power on the LED light strip to ensure it lights up. Step 2. Wipe the installation surface to ensure it is clean and dry. Rear of TV/Monitor... - Page 9 Step 3. Starting from the bottom left corner, attach the LED light strip to the rear of the TV. Press the strip firmly and then secure it in place using the supplied clips. Rear of TV/Monitor Right Left Notes: The LED light strip must be installed starting from the bottom left corner of the rear of the TV, in clockwise direction.
- Page 10 Step 5. • Connect the USB cable from the controller into the “DATA OUT” port on the HDMI sync box. • Connect the HDMI sync box to the TV using the supplied HDMI cable. • Connect the media source (gaming console, streaming device etc.) to the “HDMI IN” port on the sync box using an HDMI cable (not supplied).
- Page 11 CONNECT TO SMARTERHOME™ APP Install App Download the “Kogan SmarterHome” app from the Play Store (Android) or App Store (iOS). Play Store (Android) App Store (iOS) To register: If you already have a SmarterHome account, select ‘Log In’. To register a new account, select ‘Sign Up’.
- Page 12 Set device in pairing mode When the device is first turned on, it may automatically enter pairing mode (indicator is flashing green). If not automatically in pairing mode when powered on, you can manually set the device in pairing mode by pressing and holding the Power button for 5 seconds until the green indicator is off.
- Page 13 Ensure that the device is in pairing mode, with the indicator flashing green, and tap “Confirm light is rapidly flashing”. The device will commence the pairing process and connect to the app. Ensure your Wi-Fi router, mobile phone, and the SmarterHome™ device are kept close until connection is complete.
-
Page 14: Specifications
SPECIFICATIONS HDMI sync box power supply DC5V=1.5A Controller power supply DC12V=1.5A Suitable TV size 55-65 inches LED light strip length 3.8m Light strip water resistance IP44 Wi-Fi IEEE 802.11 b/g/n Bluetooth Operating frequency 2.412~2.484GHz Support system Android 5.0 or iOS 9.0 and above TROUBLESHOOTING 1. - Page 15 NOTES...
- Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
