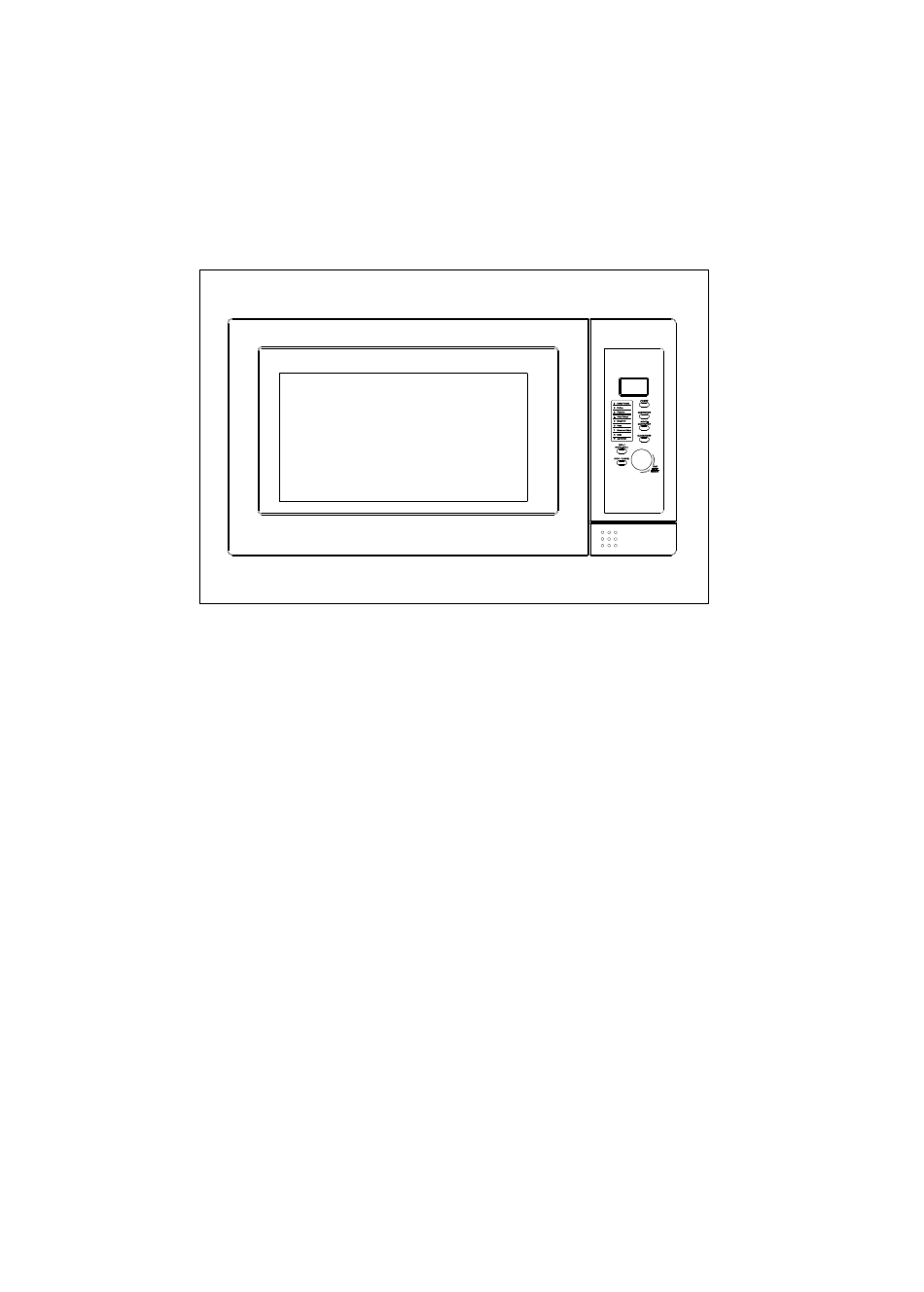

MODEL: EBM4530
Microwave Oven
Owner's Manual
Please read these instructions carefully before installing and operating the oven.
Record in the space below the SERIAL NO. found on the nameplate on your oven and retain
this information for future reference.
SERIAL NO.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EBM4530 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Exquisit EBM4530

Summary of Contents for Exquisit EBM4530

  • Page 1 MODEL: EBM4530 Microwave Oven Owner's Manual Please read these instructions carefully before installing and operating the oven. Record in the space below the SERIAL NO. found on the nameplate on your oven and retain this information for future reference. SERIAL NO.

  • Page 2: Table Of Contents

    Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

  • Page 3: Important Safety Instructions

    When using electrical appliance basic safety precautions should be followed, including the following: WARNING: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: Read all instructions before using the appliance. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance.

  • Page 4: Specifications

    230V-240V~50Hz, 1400W(Microwave) Power Consumption: 1250W(Grill) Power Consumption (Convection) 2200V Microwave Power Output: 900W Operation Frequency: 2450MHz Outside Dimensions: 354mm(H)×539mm(W)×390mm(D) Oven Cavity Dimensions: 240mm(H)×354mm(W)×358mm(D) Oven Capacity: 30Litres Cooking Uniformity: Turntable System Net Weight: Approx. 18.4kg Make sure that all the packing materials are removed from the inside of the door. WARNING: WARNING: Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door.

  • Page 5: Microwave Cooking Principles

    event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage. WARNING Improper use of the grounding plug can result in a risk of electric shock.

  • Page 6: Part Names

    fragments which may cause sparks and/or fires. Round /oval dishes rather than square/oblong ones are recommend, as food in corners tends to overcook. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful don’t use too much and keep a distance of 1 inch (2.54cm) between foil and cavity. The list below is a general guide to help you select the correct utensils.

  • Page 7: Control Panel

    MENU ACTION SCREEN  Cooking time, power, action indicators, and clock  time are displayed. POWER  Touch this button to set microwave cooking  power level. CONVECTION  Press to program convection cooking.  MICRO+CONVECTION  Press to combination cooking settings. ...

  • Page 8: How To Set The Oven Controls

    ETTING DIGITAL CLOCK With the oven ready for input, touch the CLOCK/TIME button once or twice to set the digital clock in 12 or 24 hours cycle. FOR EXAMPLE: Suppose you want to set the oven clock time to 8:30. In waiting mode, press and hold down CLOCK /TIME for 3 seconds to select 24-hour clock.

  • Page 9: Quick Start

    UICK START This feature allows you to start the oven quickly. In waiting mode, press the START/QUICK START button a number of times to set the cooking time, the oven starts work at full power level immediately. The longest cooking time you can set here is 10 minutes.

  • Page 10: Micro+Convection

    ICRO ONVECTION This oven has four pre-programmed settings that make it easy to cook with both convection heat and microwave automatically. MICRO+CONVECTION Press button to program convection temperature: Touch Temperature(℃) COMB1 Once COMB2 Twice COMB3 3 times COMB4 4 times Suppose you want to cook for 24 minutes on COMB3.

  • Page 11: Jet Defrost

    ET DEFROST FOR EXAMPLE: Suppose you want to defrost frozen food for 10 minutes. Open the oven door and place the food, close it. Rotate TIME/MENU/WEIGHT dial to choose Code 09. Press START/QUICK START button. Turn the TIME/MENU/WEIGHT to enter cooking time. Press START/QUICK START button.

  • Page 12: Automatic Protection Mechanism

    UTOMATIC PROTECTION MECHANISM When the system enters into super high temperature protection status, the digital display shows “E01” and continues to beep till the system comes back to normal condition and then press “STOP/CANCEL”. When the system enters into super low temperature protection status, the digital display shows “E02”...

  • Page 13: Cleaning And Care

    Turn off the oven and remove the power plug from the wall socket before cleaning. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
