Operating Instructions
SPECIFICATIONS
Free Speed . . . . . . . . . . . . . . . . . . . . . .18,000 RPM
Net Weight . . . . . . . . . . . . . . . . . . . . . . . . .1.25Lbs.
Overall Length . . . . . . . . . . . . . . . . . . . . . . . 4-7/8"
Air Consumption . . . . . . . . . . . . . . . . . . . . . 4 CFM
Air Inlet Size . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4"
Collet Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4"
Minimum Hose Size. . . . . . . . . . . . . . . . . . . . . 3/8"
Recommended Air Pressure . . . . . . . . . . . . 90 PSI
• MAXIMUM RPM OF 18,000
• MAX AIR PRESSURE: 90
PSIG, 6.2 BAR
• RPM OF THE ACCESSORY
MUST EXCEED TOOL RPM
ALWAYS READ
INSTRUCTIONS
BEFORE USING
POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
WEAR HEARING
PROTECTION
AVOID
PROLONGED
EXPOSURE TO
VIBRATION
SE355

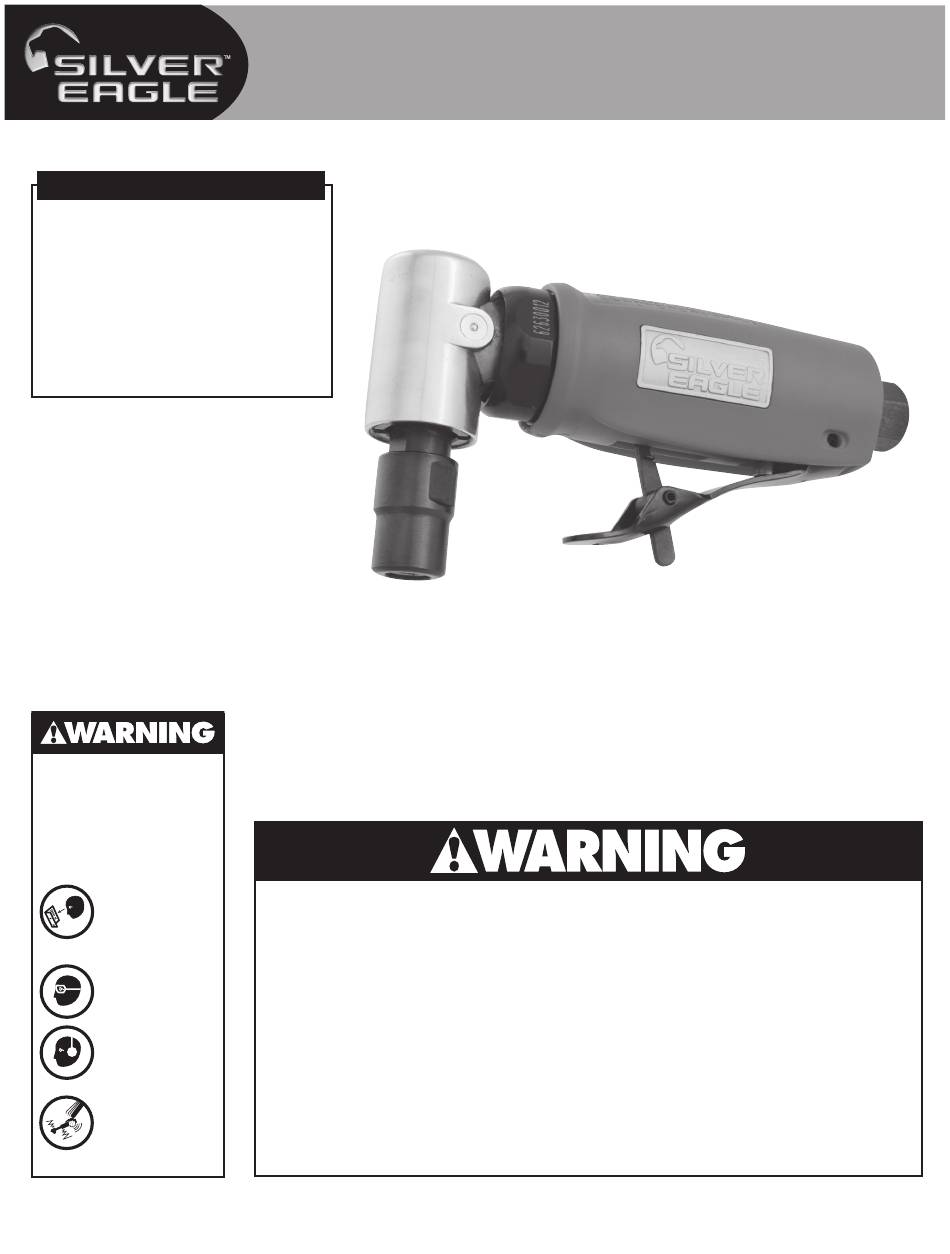

Mini Right Angle Air Die Grinder
Warning Information
Some dust created by power sanding, sawing, grinding, drilling, and other construction
activities contains chemicals known to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead from lead-based paints,
• Crystalline silica from bricks and cement and other masonry products, and
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of
work. To reduce your exposure to these chemicals: work in a well ventilated area, and
work with approved safety equipment, such as those dust masks that are specially
designed to filter out microscopic particles.
Copyright © Professional Tool Products, 2006
1
SE355
Parts Breakdown
All rights reserved.
10/19/06
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Silver Eagle SE355
Summary of Contents for Silver Eagle SE355
- Page 1 SE355 Mini Right Angle Air Die Grinder Operating Instructions Warning Information Parts Breakdown SPECIFICATIONS Free Speed ..... .18,000 RPM Net Weight ......1.25Lbs.
-
Page 2: Operation
SE355 Mini Right Angle Air Die Grinder FAILURE TO OBSERVE THESE WARNINGS COULD RESULT IN INJURY THIS INSTRUCTION MANUAL CONTAINS • Slipping, tripping and/or falling while operating air IMPORTANT SAFETY INFORMATION. tools can be a major cause of serious injury or death. - Page 3 SE355 Mini Right Angle Air Die Grinder REF. REF. PART PART DESCRIPTION DESCRIPTION QTY. QTY. Cylinder Housing (includes #2, #3) RS708321 RS70801PSE Spindle Collar Bushing - Throttle Valve (incl w/ #1) RS305A22 Front End Plate O-Ring (incl w/ #1) RS305A23...
-
Page 4: Air Supply
WARRANTY This warranty gives you specific rights. You may also have other rights Silver Eagle™ by Matco warrants its air tools for a period of 1 year to the which vary from state to state. consumer. We will repair any SE Series air tool covered under this warranty The foregoing obligation is Matco’s sole liability under this or any implied... - Page 5 SE355 SE355 Mini Rectifieuse Pneumatique À Angle Droit Mini Rectifieuse Pneumatique À Angle Droit Instructions de fonctionnement Avertissement Pièces SPÉCIFICATIONS Vitesse libre ..... . . 18 000 RPM Poids net .
- Page 6 SE355 Mini Rectifieuse Pneumatique À Angle Droit LE NON-RESPECT DE CES AVERTISSEMENTS POURRAIT ENTRAÎNER DES BLESSURES. PRÉSENT MANUEL D’INSTRUCTIONS • Si vous glissez, trébuchez et/ou tomber quand vous utilisez CONTIENT DES RENSEIGNEMENTS IMPORTANTS des outils pneumatiques, vous risquez des blessures graves ou POUR LA SÉCURITÉ.
-
Page 7: Dépannage
SE355 Mini Rectifieuse Pneumatique À Angle Droit ENTRÉE D’AIR DÉPANNAGE Les outils de cette classe fonctionnent sur une grande plage de pression d’air. D’autres facteurs à l’extérieur de l’outil peuvent causer une perte de puissance Il est recommandé d’utiliser une pression de 90 lb/po2 pour l’outil à vide. Une ou un fonctionnement irrégulier. - Page 8 SE355 SE355 Mini Esmeril De Troquel De Ángulo Recto Mini Esmeril De Troquel De Ángulo Recto Instrucciones de Operación Información de Advertencia Revisión de Refacciones ESPECIFICACIONES Velocidad libre..... 18,000 RPM Peso neto .
-
Page 9: Operación
SE355 Mini Esmeril De Troquel De Ángulo Recto EL INCUMPLIMIENTO DE OBSERVAR ESTAS ADVERTENCIAS PUEDEN RESULTAR EN ALGUNA LESIÓN ESTE MANUAL INSTRUCCIONES • Coloque la herramienta sobre el trabajo antes de arrancar la CONTIENE INFORMACIÓN IMPORTANTE DE herramienta. SEGURIDAD. LEA CUIDADOSAMENTE ESTE •... - Page 10 SE355 Mini Esmeril De Troquel De Ángulo Recto ALIMENTACIÓN DE AIRE DIAGNÓSTICO DE AVERÍAS Otros factores independientes de la herramienta pueden ocasionar la pérdida Las herramientas de esta categoría operan dentro de un rango amplio de de potencia o alguna acción errática. Las emisiones reducidas de la salida del presión de aire.
