  • Page 1 Yukon TX Motherboard User Manual Version 2.1...
  • Page 2 In no event shall Seanix be liable for any loss or profits, loss of business, loss of use or data, interruption of business, or for...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1.PRODUCT DESCRIPTION........................5 TX M ....................5 EATURES OF THE UKON OTHERBOARD ..........................6 OTHERBOARD AYOUT ........................7 ENTRAL ROCESSING ..............................7 EMORY ............................7 ACHE EMORY IDE P ........................7 ERIPHERAL NTERFACE I/O ..............................8 UPER BIOS............................
  • Page 4 ............................40 ODES ..........................41 RROR ESSAGES 5.GLOSSARY ............................43...

  • Page 5: Product Description

    1.Product Description Congratulations on your purchase of the Yukon TX Motherboard. This motherboard supports ® ® Pentium processors and Pentium processors with MMX™ technology. Features of the Yukon TX Motherboard • Intel Pentium ® microprocessor running at 75, 90, 100, 120, 133, 150, 166, and 200MHz.

  • Page 6: Motherboard Layout

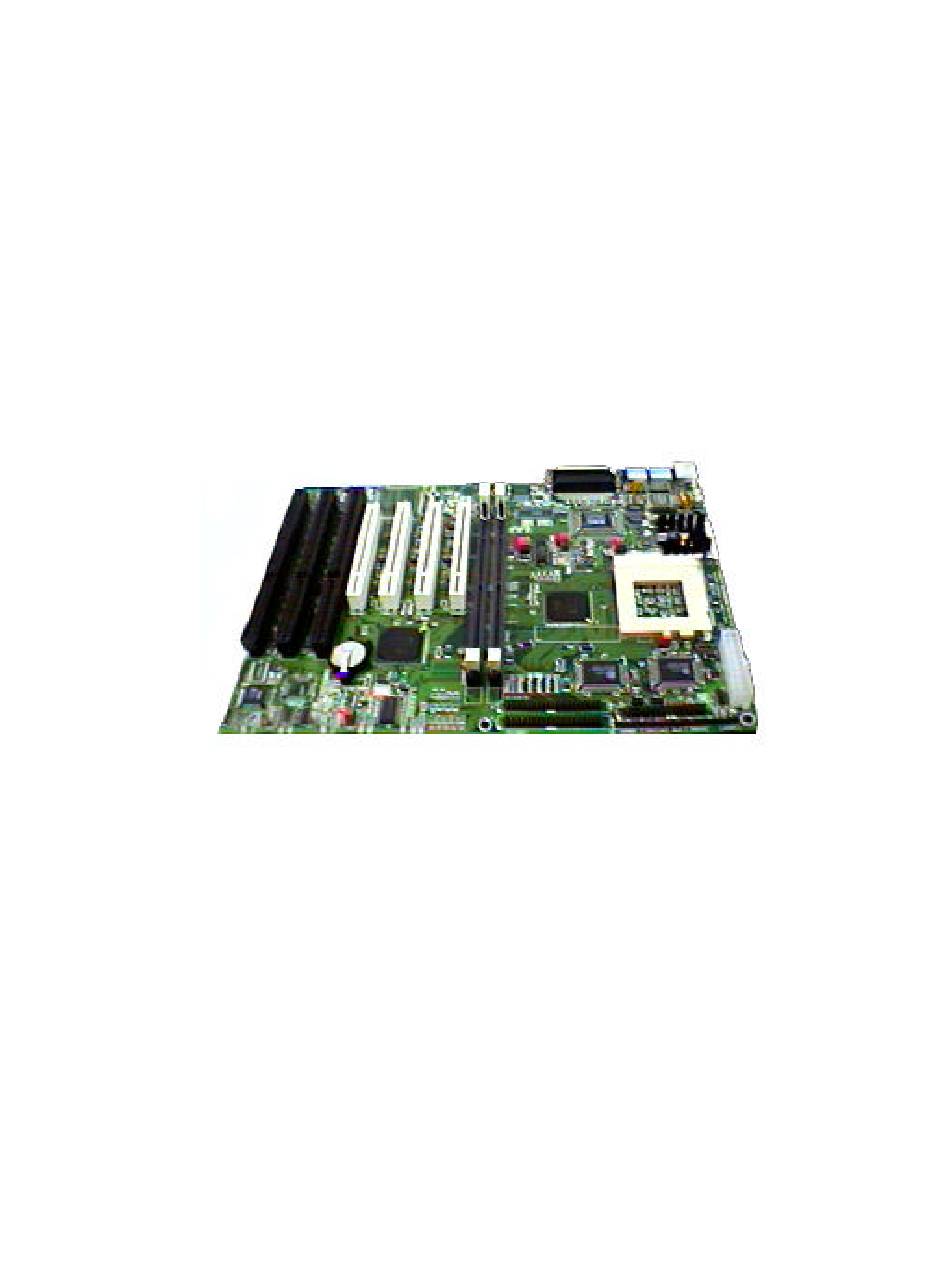

    Motherboard Layout.

  • Page 7: Central Processing Unit

    • Onchip 32 KB cache. • 57 extra instructions enhancing Multimedia operations. Memory The Yukon TX motherboard supports base (conventional) and extended memory. Operating systems such as MS-DOS™, Microsoft® Windows®, OS/2, UNIX, and all other application programs using base memory are supported.

  • Page 8: Super I/O

    • Logical block addressing (LBA) of hard drives larger than 528 MB • Extended Cylinder Head Sector (ECHS) translation modes • ATAPI devices (such as CD-ROMs) on both IDE interfaces • Ultra DMA/33 IDE support. Data transfer rate up to 33MB/sec. Super I/O The Plug and Play Super I/O supports the following logical devices: 1.

  • Page 9: System Bios

    System BIOS BIOS, an acronym for Basic Input Output System, stands as the first link between hardware and software in coordinating the startup configuration of computers. Plug and play ready, AMIBlOS automatically configures the computer's hard drives, disk drives, processors, chipsets, memory, and boot-up of the operating system. The system BIOS, from AMI, provides ISA PnP and PCI PnP compatibility.
  • Page 10 add-in boards, you must specify the interrupts used by non PnP ISA boards in the Setup program. Chapter 2 tells how to use the Setup program. The PCI auto- configuration program complies with version 2.1 of the PCI BIOS specification. IDE Auto-configuration When an IDE drive is installed in the system, the IDE auto-configuration function automatically detects and configures the drive for operation in the system.

  • Page 11: Expansion Slots

    The flash upgrade process can be done by running a utility from a diskette or hard disk, or over a network. WARNING For information about the latest BIOS update for Yukon TX, contact your service representative. Expansion Slots The board has three 16-bit ISA and four PCI expansion slots.

  • Page 12: Onboard Lan

    devices in use per PCI bridge. When integrated LAN is not installed and slot 1 is available the slot functions as a normal bus-mastering PCI slot. Slot 2 & 3 – Master: These two slots do not share resources with any other device and are fully functional bus-mastering PCI slots.

  • Page 13: Wake On Lan Header

    JP18 and JP20 ON – LAN onboard enabled. JP18 and JP20 OFF – LAN onboard disabled. The drivers for the LAN chipset are available on the Seanix CD supplied with your computer in the following directory: Mthrbrds\Yukon_TX. If you do not have these drivers then contact your dealer for a replacement copy.

  • Page 14: Real-Time Clock And Cmos Ram

    Real-Time Clock and CMOS RAM Yukon TX motherboard’s real time clock is built into the chipset. The time for the clock and the CMOS values can be set by using the system BIOS Setup program, described in Chapter 3. Front Panel Connector (J6) INFRARED Pins 1 - 6, not currently used.

  • Page 15: Management Extention Component

    1.44 MB and 720 KB DOS-formatted diskettes and is supported by Windows 95 and Windows NT operating systems. The Yukon TX motherboard allows connection of an LS-120 compatible drive and a standard 3.5-inch diskette drive. The LS-120 drive can be configured as a boot device, if selected in the BIOS setup utility.

  • Page 16: Installation And Settings

    2.Installation and Settings CAUTION Electrostatic discharge (ESD) can damage components. Perform the procedures described in this chapter only at an ESD workstation. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer.

  • Page 17: Cpu Installation

    CPU Speed Jumpers These jumpers set the CPU frequencies and the clock ratio. The jumpers should be changed only when you upgrade the CPU. JP11 Open Open Open Closed Open Closed Closed Closed Open Open Closed Open Open Closed Open Closed Closed Closed...

  • Page 18: System Memory Installation

    DIMMs are supported. DIMM modules commonly available include 16MB, 32MB and 64MB. This motherboard also supports a 48MB DIMM specially designed by Seanix. Battery Replacement When your computer is turned off, a lithium battery keeps the time-of-day clock and the values in CMOS RAM current.

  • Page 19: Expansion Card Installation

    CAUTION Danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the equipment manufacturer. Discard used batteries according to manufacturer's instructions. Expansion Card Installation The computer system should be switched off and the power cord removed before installing any expansion cards into the system.

  • Page 20: Using The Bios Setup Program

    3.Using the BIOS Setup Program This chapter tells how to use the Setup program that is built into the BIOS. The Setup program makes it possible to change configuration information (such as the types of peripherals that are installed) and the boot-up sequence for the system. The Setup information is stored in CMOS random access memory (RAM) and is backed up by a battery when power is off.
  • Page 21 AMIBIOS HIFLEX SETUP UTILITY – VERSION x.xx © 1996 American Megatrends, Inc. All Rights Reserved Standard CMOS Setup Advanced CMOS Setup Advanced Chipset Setup Power Management Setup PCI / Plug and Play Setup Peripheral Setup CPU Configuration Setup Auto-Detect Hard Disks Change User Password Change Supervisor Password Change Language Setting...
  • Page 22 Overview of the Setup Keys The following keys have special functions in the AMI BIOS Setup Utility. Setup Key Description <Tab> Move to the next field. <Esc> Closes the current operation and return to the previous level. <Enter> Selects the current item or option. Increments a value.

  • Page 23: Standard Cmos Setup

    Standard CMOS Setup AMIBIOS SETUP – STANDARD CMOS SETUP © 1996 American Megatrends, Inc. All Rights Reserved Date (mm:dd:yy) : Fri, May 30, 1997 Base Memory : 640 KB Time (hh:mm:ss) : 16 : 38 : 13 Extd Memory : 63 MB Floppy Drive A: 1.44 MB 3½...
  • Page 24 Primary IDE Master, Primary IDE Slave, Secondary IDE Master, Secondary IDE Slave Choose these options to configure the hard disk drive shown in the field. When you select an option, the following parameters are listed: Type, LBA/Large Mode, Block Mode, 32Bit Mode, and PIO Mode. Use the cursor to highlight “Type” and then choose “Auto”...

  • Page 25: Advanced Cmos Setup

    Advanced CMOS Setup AMIBIOS SETUP – ADVANCED CMOS SETUP © 1996 American Megatrends, Inc. All Rights Reserved Boot Device Floppy Available Options : Boot Device IDE-0 Disabled Boot Device CDROM IDE-0 4th Boot Device Floptical IDE-1 Boot from Network Card IDE-2 Try Other Boot Devices IDE-3...
  • Page 26 S.M.A.R.T for Hard Drives S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology), is a technology developed to manage the reliability of the hard disk by predicting some, but not all of the future device failures. This feature helps the BIOS warn the user of possible device failures.

  • Page 27: Advanced Chipset Setup

    Advanced Chipset Setup AMIBIOS SETUP – ADVANCED CHIPSET SETUP © 1996 American Megatrends, Inc. All Rights Reserved DRAM Speed Manual Available Options : DRAM Read Burst Timing x2EDO x3FPM Disabled DRAM Write Burst Timing x2EDO x2FPM Enabled DRAM Lead Off Timing 10 / 6 / 3 Memory Address Drive Strength 10mA, 16mA...

  • Page 28: Power Management Setup

    Power Management Setup AMIBIOS SETUP – POWER MANAGEMENT SETUP © 1996 American Megatrends, Inc. All Rights Reserved Power Management / APM Enabled Available Options : Green PC Monitor Power State Suspend Disabled Video Power Down Mode Suspend Enabled Hard Disk Power Down Mode Suspend Hard Disk Time Out (Minute) Standby Time Out (Minute)
  • Page 29 This section describes the Setup options available in the Power Management Setup menu used to configure the power conservation features. If you select certain options the Setup program switches to a sub-screen for the selected option. Power Management Power Management allows the user to reduce power consumption. Set this option to “Enabled”...
  • Page 30 down clock speed. The settings are 1:], I:2 (half as fast as normal), 1:4 (the normal clock speedy, 1. S, 1. 16, 1:32, ]. 64, or 1. 128. The default setting is .37.5-50%. Display Inactivity This option specifies if AMIBIOS is to monitor activity on the display monitor for power conservation purposes.

  • Page 31: Pci / Plug And Play Setup

    PCI / Plug and Play Setup AMIBIOS SETUP – PCI / PLUG AND PLAY SETUP © 1996 American Megatrends, Inc. All Rights Reserved Plug and Play Aware O/S Available Options : PCI Latency Timer (PCI clocks) PCI VGA Palette Snoop Disabled PCI IDE BusMaster Disabled...
  • Page 32 This section describes the Setup options available in the PCI/Plug and Play Setup menu to configure the PCI and Plug & Play features. If you select certain options the Setup program switches to a sub-screen for the selected option. Plug and Play Aware OS Set this option to “Yes”...
  • Page 33 On Board LAN This option is set to enabled when your motherboard has the manufacturing option of on board LAN installed. The default setting is set to “Disabled”. DMA Channel 0 to DMA Channel 7 This option can be used to reserve a DMA channel for use by legacy ISA adapter cards.

  • Page 34: Peripheral Setup

    Peripheral Setup AMIBIOS SETUP – PERIPHERAL SETUP © 1996 American Megatrends, Inc. All Rights Reserved OnBoard FDC Auto Available Options : OnBoard Serial Port 1 Auto Auto OnBoard Serial Port 2 Auto Disabled Serial Port 2 Mode Standard Enabled IR Transmission Mode Receiver Polarity Transmitter Quality OnBoard Parallel Port...
  • Page 35 OnBoard Serial Port2 This option enables serial port 2 on the motherboard and specifies the base I/O port address for serial port 2. The settings are “2F8h”, “2E8h”, “3F8h”, “3E8h”, “Auto”, and “Disabled”. The Optimal and Fail-Safe default settings are both “Auto”. OnBoard Parallel Port This option enables the parallel port on the motherboard and specifies the parallel port base I/O port address.

  • Page 36: Cpu Configuration Setup

    CPU Configuration Setup AMIBIOS SETUP – CPU CONFIGURATION SETUP © 1996 American Megatrends, Inc. All Rights Reserved Jumper Less Function Disabled Available Options : CPU Brand Disabled CPU Speed Enabled H/W Monitor BIOS Support Enabled H/W Monitor information Display Disabled Vcore Voltage 4.080 I/O Voltage...

  • Page 37: Auto-Detect Hard Disks

    H/W Monitor BIOS Support This function is responsible for monitoring certain Voltages, Fan rates and Temperatures of components on the motherboard. The only options that are selectable to the User are the ‘Basic Critical Temperature’, ‘Basic System Protection’ and ‘Suspend if exceed BCT’. The default setting for this option is Disabled Auto-Detect Hard Disks This “Auto-Detect Hard Disks”...

  • Page 38: Exit Without Saving

    BIOS upgrade for your system. WARNING Upgrading BIOS other than the one provided by the Yukon TX manufacturer will automatically have the product warranty voided. Using the incorrect BIOS for upgrade might cause permanent unrecoverable damage to the motherboard.

  • Page 39: Error And Information Messages

    4.Error and Information Messages This chapter describes the following: • Jumper block locations and functions • Procedures to remove and install optional components • Information about replacing the battery Before You Begin • Be sure to do each procedure in the correct order. •...
  • Page 40 Add-in boards can be extremely sensitive to ESD and always require careful handling. After removing the board from its protective wrapper or from the system, place the board flat on a grounded, static-free surface, component-side up. Use a conductive foam pad if available, but not the board wrapper. Do not slide the board over any surface.
  • Page 41 Error Messages An error can occur after the system display has been initialized. Error Message Explanation 8042 Gate-A20 Error Gate A20 on the keyboard controller (8042) is not working. Replace the 8042. Address Line Short! Error in the address decoding circuitry on the motherboard.
  • Page 42 Error Message Explanation DMA 1 Error Error in the first DMA channel. DMA 2 Error Error in the second DMA channel. FDD Controller Failure AMIBIOS cannot communicate with the floppy disk drive controller. Check all appropriate connections after the system is powered down. HDD Controller Failure AMIBIOS cannot communicate with the hard disk drive controller.
  • Page 43 5.Glossary ADDRESS: Specific location in the memory of the computer where information about programs, data and software drivers is stored. Peripheral devices such as mouse, modems, etc. require a specific I/0 port address and interrupt in order to function properly. BIOS:(BASIC INPUT OUTPUT SYSTEM) That part of a ROM that is the interface between the system hardware and the operating system.
  • Page 44 CONFIG.SYS: A file usually located in the root directory of the boot disk that contains information required to load installable device drivers and other system configuration parameters. CONVENTIONAL MEMORY: System main memory from 0 to 640KB. Many programs run in this area. COPROCESSOR: An auxiliary processor that reduces microprocessor overhead and increases system speed by executing certain math related functions.
  • Page 45 INTERRUPT: Special operation used by hardware peripheral devices to allow them to communicate with the Central Processing Unit. Each peripheral device is allocated a unique interrupt number which the CPU recognizes when talking to the device. ISA: Industry Standard Architecture. JUMPER: A patch cable, wire or other such device used to establish a circuit.
