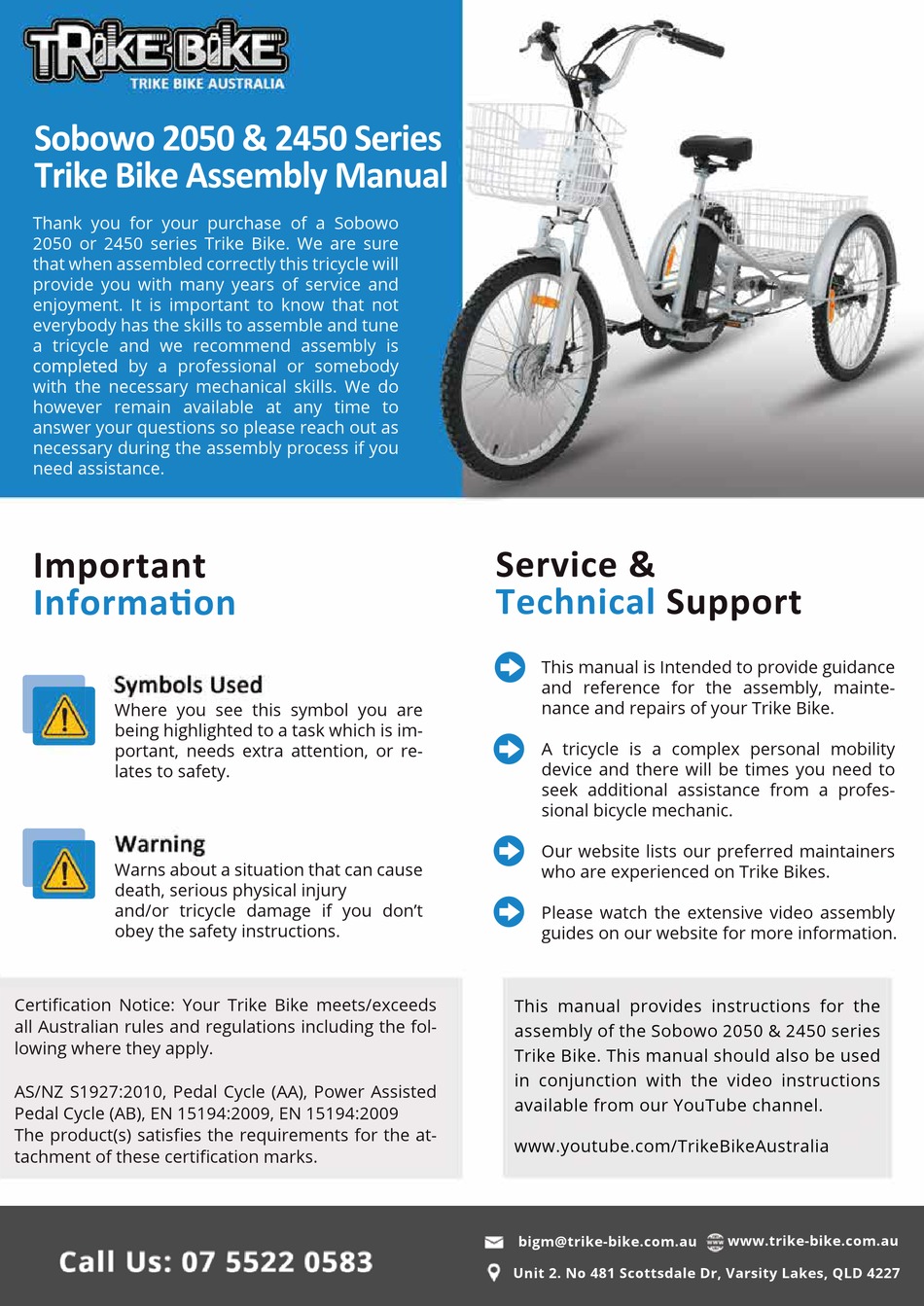

Sobowo 2050 & 2450 Series
Trike Bike Assembly Manual
Thank you for your purchase of a Sobowo
2050 or 2450 series Trike Bike. We are sure
that when assembled correctly this tricycle will
provide you with many years of service and
enjoyment. It is important to know that not
everybody has the skills to assemble and tune
a tricycle and we recommend assembly is
completed by a professional or somebody
completed
with the necessary mechanical skills. We do
however remain available at any time to
answer your questions so please reach out as
necessary during the assembly process if you
need assistance.
Important
Informa�on
Where you see this symbol you are
being highlighted to a task which is im-
portant, needs extra attention, or re-
lates to safety.
Warns about a situation that can cause
death, serious physical injury
and/or tricycle damage if you don't
obey the safety instructions.
Certification Notice: Your Trike Bike meets/exceeds
all Australian rules and regulations including the fol-
lowing where they apply.
AS/NZ S1927:2010, Pedal Cycle (AA), Power Assisted
Pedal Cycle (AB), EN 15194:2009, EN 15194:2009
The product(s) satisfies the requirements for the at-
tachment of these certification marks.
Service &
Technical Support
This manual is Intended to provide guidance
and reference for the assembly, mainte-
nance and repairs of your Trike Bike.
A tricycle is a complex personal mobility
device and there will be times you need to
seek additional assistance from a profes-
sional bicycle mechanic.
Our website lists our preferred maintainers
who are experienced on Trike Bikes.
Please watch the extensive video assembly
guides on our website for more information.
This manual provides instructions for the
assembly of the Sobowo 2050 & 2450 series
Trike Bike. This manual should also be used
in conjunction with the video instructions
available from our YouTube channel.
www.youtube.com/TrikeBikeAustralia
bigm@trike-bike.com.au
Unit 2. No 481 Scottsdale Dr, Varsity Lakes, QLD 4227
www.trike-bike.com.au
