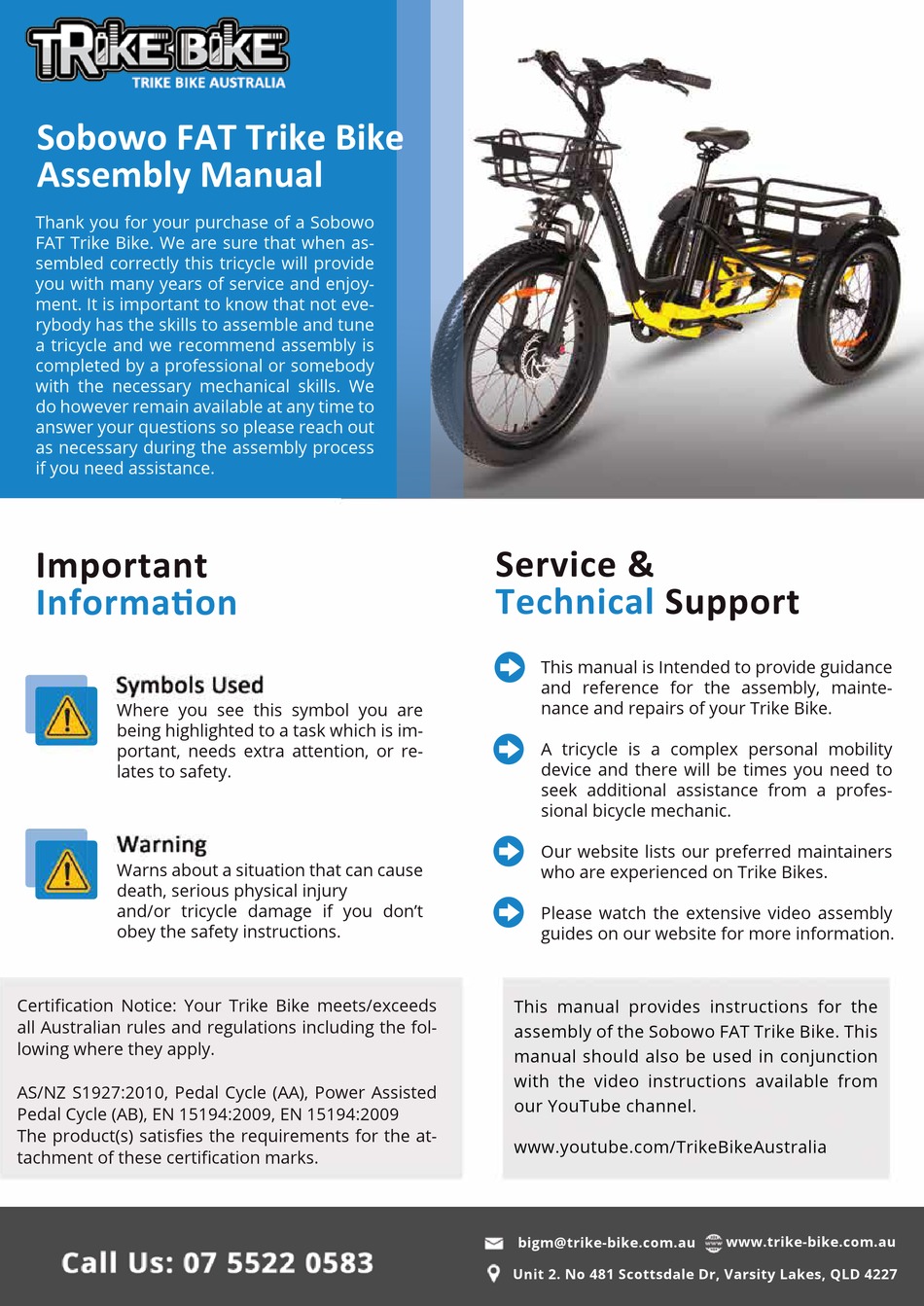

Sobowo FAT Trike Bike
Assembly Manual
Thank you for your purchase of a Sobowo
FAT Trike Bike. We are sure that when as-
sembled correctly this tricycle will provide
you with many years of service and enjoy-
ment. It is important to know that not eve-
rybody has the skills to assemble and tune
a tricycle and we recommend assembly is
completed by a professional or somebody
with the necessary mechanical skills. We
do however remain available at any time to
answer your questions so please reach out
as necessary during the assembly process
if you need assistance.
Important
Informa�on
Where you see this symbol you are
being highlighted to a task which is im-
portant, needs extra attention, or re-
lates to safety.
Warns about a situation that can cause
death, serious physical injury
and/or tricycle damage if you don't
obey the safety instructions.
Certification Notice: Your Trike Bike meets/exceeds
all Australian rules and regulations including the fol-
lowing where they apply.
AS/NZ S1927:2010, Pedal Cycle (AA), Power Assisted
Pedal Cycle (AB), EN 15194:2009, EN 15194:2009
The product(s) satisfies the requirements for the at-
tachment of these certification marks.
Service &
Technical Support
This manual is Intended to provide guidance
and reference for the assembly, mainte-
nance and repairs of your Trike Bike.
A tricycle is a complex personal mobility
device and there will be times you need to
seek additional assistance from a profes-
sional bicycle mechanic.
Our website lists our preferred maintainers
who are experienced on Trike Bikes.
Please watch the extensive video assembly
guides on our website for more information.
This manual provides instructions for the
assembly of the Sobowo FAT Trike Bike. This
manual should also be used in conjunction
with the video instructions available from
our YouTube channel.
www.youtube.com/TrikeBikeAustralia
bigm@trike-bike.com.au
Unit 2. No 481 Scottsdale Dr, Varsity Lakes, QLD 4227
www.trike-bike.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sobowo FAT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TRIKE BIKE Sobowo FAT

Summary of Contents for TRIKE BIKE Sobowo FAT

  • Page 1 Sobowo FAT Trike Bike Assembly Manual Thank you for your purchase of a Sobowo FAT Trike Bike. We are sure that when as- sembled correctly this tricycle will provide you with many years of service and enjoy- ment. It is important to know that not eve-...

  • Page 2: Table Of Contents

    THE MAXIMUM TRICYCLE SPEED IS HARD LIMITED TO 25 KPH MAXIMUM CONTINUOUS RATED POWER There are references in this manual to the torque settings of different nuts and bolts, a torque wrench is recommended but not necessary to complete the assembly of the Sobowo FAT Trike Bike. Page 2 ©...

  • Page 3: Parts Description

    Sobowo FAT Trike Bike Assembly Manual Parts description LCD Display Tyre Battery Front hub motor Brake lever Controller Parking brake Hand grip Spokes Foot pedals Front basket Handlebar stem Valve Twist throttle Rear basket Seat Display buttons Headlight Suspension forks...

  • Page 4: Introduction

    If you have any questions or concerns, please do not hesitate to contact Trike Bike via phone at (07) 5522 0583 and ask for workshop assistance, or by email at bigm@trike-bike.com.au.

  • Page 5: Hardware Nuts And Bolts

    Sobowo FAT Trike Bike Assembly Manual Hardware nuts and bolts M5 bolts used to hold the mudguards to the mudguard frames M5 washers, used with bolts “A” for mounting the mudguards to the mudguard frames M6 washers Qty=8, are used with bolts “I” to hold the rear basket assembly to the rear frame. M6 washers Qty=2 used to mount the top of the front mudguard to the frame M5 bolts with integrated washers.

  • Page 6: Assembly Preparation

    Sobowo FAT Trike Bike Assembly Manual Assembly preparation To begin, open the smaller of the two boxes and remove the baskets and mudguard brackets, remove the rear frame assembly and, remove the chain which is secured to the frame in a plastic bag. Remove the bubble wrap plastic cov- ering the rear axle assembly and position the rear assembly on a workbench or other stand where it can be secured to stop the rear axle assembly from rolling away.

  • Page 7: Remove The Battery

    Sobowo FAT Trike Bike Assembly Manual Remove the battery Find the battery key, which is typically fastened to the front handlebars using a cable tie. Cut the cable tie and insert the key into the battery lock, ensuring it is correctly po- sitioned.

  • Page 8: Fitting The Front Wheel

    Sobowo FAT Trike Bike Assembly Manual After joining the chain, mount it on the rear sprocket by carefully threading it onto the sprocket by turning the pedal crank arms. When the chain is secure on both sprockets, you will notice that there is excessive slack in the chain sys- tem.

  • Page 9: Fitting The Pedals

    Sobowo FAT Trike Bike Assembly Manual Fitting the pedals First, remove the pedals from their plastic wrapping and examine the end of the pedal axle carefully. One of the pedals will have the letter “L” stamped onto the end of the axle, indicating that it should be fitted on the left-hand side of the tricycle.

  • Page 10: Fitting The Front Basket

    Sobowo FAT Trike Bike Assembly Manual Fitting the front basket To attach the front basket to the tricycle, you must first remove the four M5 size bolts that secure the basket to the mounting area on the frame. Once removed, position the front basket on the frame and re-install the bolts. However, it is suggested to leave them finger-tight for now.

  • Page 11: Fitting The Rear Hydraulic Brakes

    Sobowo FAT Trike Bike Assembly Manual Fitting the rear hydraulic brakes Mounting the rear hydraulic brake calipers is a challenging task during tricycle assembly, as the work area has limited accessibility. Start by unwrapping the hydraulic brake calipers and positioning them straight out from the rear of the tricycle. Take note that one brake hose is longer than the other, and the longer hose should be placed on the right-hand braking mounting location, while the shorter hose is for the left-hand side.

  • Page 12: Fitting The Rear Mudguards

    Sobowo FAT Trike Bike Assembly Manual Fitting the rear mudguards The recommended torque setting for all bolts in this assembly sequence is between 4-5 Nm to ensure a secure at- tachment. The rear mud guards are fitted to the back basket of the tricycle before the back basket is attached to the mainframe.

  • Page 13: Tyre Pressure

    Sobowo FAT Trike Bike Assembly Manual Tyre pressure Verify that the tire pressure on all wheels is approximately 16 psi (1.1 bar). Through our riding experience, we have found that 16 psi is the opti- mal tire pressure for general riding in various conditions. However, if you plan on riding on rough terrain or the beach, it is recommended to lower the tire pressure to around 12 psi.

  • Page 14: Operators Guide - Important Information

    Although every effort has been made to anticipate potential situations or conditions that may occur while riding, this manual makes no representation about the safe use of the Sobowo FAT Trike Bike under all conditions. The risks associated with the use of this tricycle cannot be predicted or avoided, and it is the sole responsibility of the owner or rider.

  • Page 15: Mounting And Riding Instructions

    Always wear a helmet Mounting and riding instructions Position the tricycle on level ground clear of any obstacles, especially until you get used to riding your Sobowo FAT tricycle. While standing alongside the tricycle, hold the brakes and engage the parking brake especially while learning to ride.

  • Page 16: Important Tips

    Trike-Bike Operators Guide With both feet on the pedals at even level, push off with your strongest leg, looking ahead for pavement conditions/ obstacles and for other road users/traffic If riding in pedal assist mode, power will engage after half-to-one turn of the pedals. In throttle mode at the same time as pushing off, twist the throttle slightly using your right hand to introduce electric assistance .

  • Page 17: Note On Wearing Protective Gear

    This Trike Bike tricycle is a leisure device. However, when entering any public area, it may be considered a vehicle subject to possible traffic laws and regulations. For your own safety, please follow the instructions in the manual as well as local traffic laws and regulations.
  • Page 18 Copyright notice for this Trike Bike Assembly Manual This Trike Bike Assembly Manual is the exclusive property of Trike Bike Australia and is protected by the Copyright Act 1968 (Commonwealth of Australia) and international copyright laws. This manual is intended only for the use of Trike Bike customers and may not be reproduced, distributed, or trans- mitted in any form, or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written consent of Trike Bike Australia.
  • Page 19 Trike-Bike Operators Guide Notes www.trike-bike.com.au © Trike-Bike™ Manual 2023 Page 19...
  • Page 20 Sobowo FAT Trike Bike Assembly Manual Trike Bike YouTube Channel For additional information on the assembly and setup of your Trike Bike, we encourage you to visit our YouTube channel. Our channel features a range of helpful videos that can guide you through the assembly process and provide you with useful tips for maintaining, and riding your Trike Bike.
