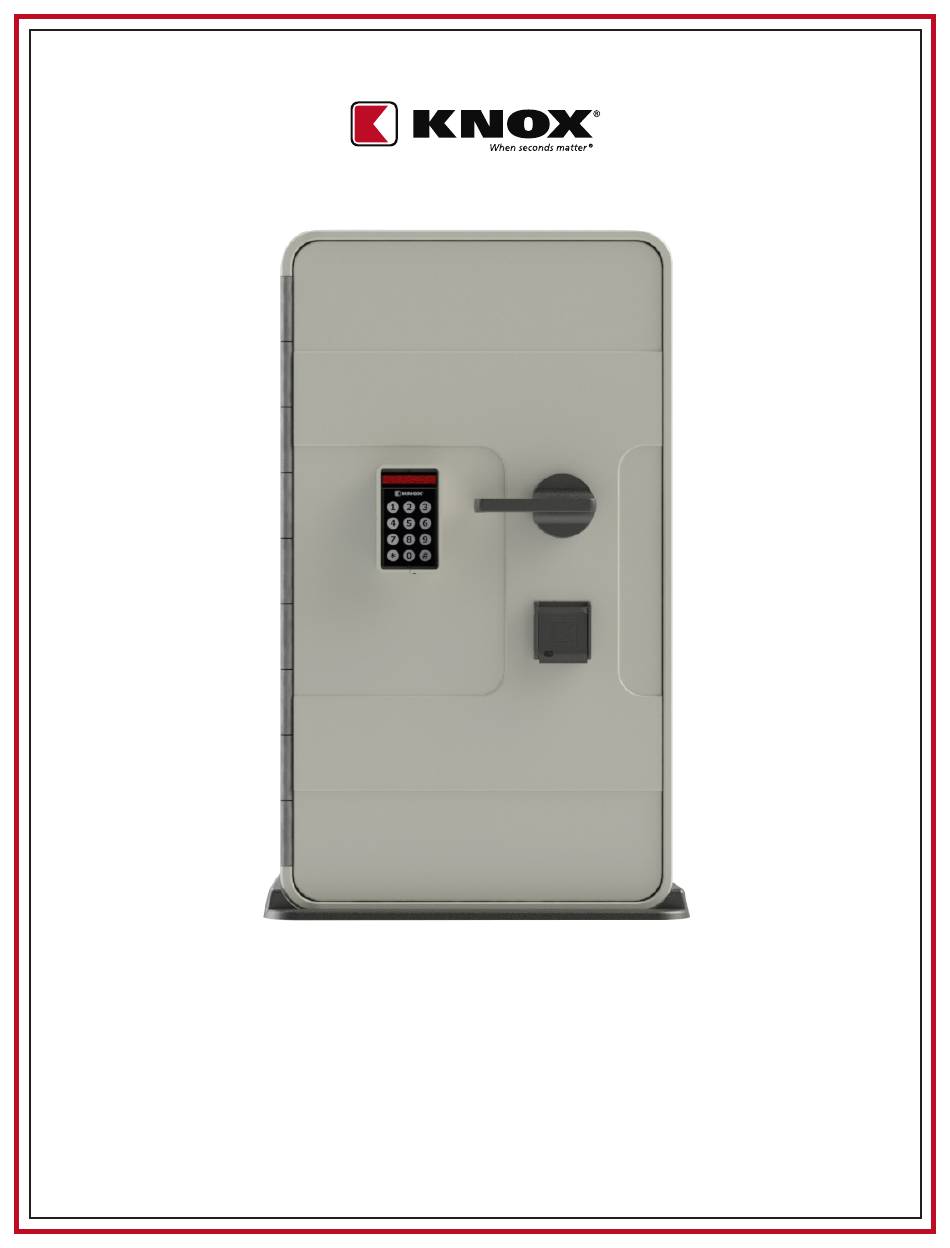

- Page 1 STATIONVAULT ™ ADMIN & USER GUIDE 1601 W. DEER VALLEY RD. PHOENIX, AZ 85027 800-704-0889 TECHSUPPORT@KNOXBOX.COM KNOXBOX.COM ©Knox Company. All rights reserved. OPE-SVHWDR-0632-B...
-
Page 2: Restricted Rights Legend
ADMIN & USER GUIDE Copyright® 2022 by the Knox Company. All rights reserved. The Knox Company, the Knox logo, and all other Knox Company product or service names are registered trademarks or trademarks of the Knox Company. THE KNOX COMPANY 1601 W. - Page 3 Industrial cellular router doit être installé et utiliséavec une distance minimale de 20cm entre leradiateur & votre corps. 1601 W. DEER VALLEY RD. PHOENIX, AZ 85027 800-704-0889 TECHSUPPORT@KNOXBOX.COM KNOXBOX.COM PAGE 3 ©Knox Company. All rights reserved. OPE-SVHWDR-0632-B...
-
Page 4: Table Of Contents
Editing the StationVault Device Configuration........ -
Page 5: Stationvault Features
Settings and user information are maintained and modified in KnoxConnect® Cloud software. After initial set up in KnoxConnect, the device is synced using the Knox® Device Sync pc app; firmware and PIN updates will be received automatically when the device connects to the department network. The unit also collects an audit trail that records access transactions, including the user, date, time, and event description, among other data. - Page 6 Resistant Hinge Aluminum Construction Ergonomic Handle Keypad with Display Mechanical or eKey Override Programming Port Table Protector with Wire Routing Channels 1601 W. DEER VALLEY RD. PHOENIX, AZ 85027 800-704-0889 TECHSUPPORT@KNOXBOX.COM KNOXBOX.COM PAGE 6 ©Knox Company. All rights reserved. OPE-SVHWDR-0632-B...
- Page 7 After the device is configured and prior to use, a USB-Mini to USB-A cable (supplied with the product) will be used with Knox® Device Sync to initialize the unit with network settings and device settings. The cable may also be required occasionally for major firmware updates or anytime the device’s network template is changed.
-
Page 8: Getting Started
The unit is powered by a 3 amp 12VDC power supply. In addition, there is a CR2540 coin cell battery included on the StationVault circuit board to maintain the internal clock date and time, which is required for KnoxConnect SSL and EAP authentication. -
Page 9: Programming Instructions
Contact your Knox Primary Admin if you have not received KnoxConnect login credentials Select MedVault/StationVault from the navigation menu to show a list of devices: 3. Locate the StationVault serial number on the lower left side of the product: •... -
Page 10: Dual Pin
Once settings are configured, select the Save button and then the Back button to return to the vault’s primary screen To assign user PINs to the StationVault, select the User PINs Edit button for the device serial number and select PIN users who will have access to the device and select the Save button when done For additional information and more detailed instructions, please consult the KnoxConnect Administration Guide. -
Page 11: Complete Programming And Updating
• If the interval has expired or the unit is first powered up the StationVault will sync immediately when internet access is available. To sync with KnoxConnect Local: A computer/laptop with Windows is required along with a USB to mini USB connector (Included with StationVault) in order to update the StationVault: •... -
Page 12: Door Replacement - Initialize The High Security Door Sensor
DOOR REPLACEMENT - INITIALIZE THE HIGH SECURITY DOOR SENSOR In case of door or circuit board replacement, the StationVault has a door position sensor called a Virtual Interlock Validator (VIV) that must be paired to the new circuit board in KnoxConnect. If the VIV is not paired, the StationVault cannot report the door status and the vault’s display will show an error. -
Page 13: Stationvault User Instructions
ADMIN & USER GUIDE STATIONVAULT USER INSTRUCTIONS Using a valid PIN in the StationVault Keypad is the primary method of access when the device has power. In a secured, stand-by mode, the StationVault® unit’s keypad banner displays a status message of Locked. -
Page 14: Stationvault Display Messages
STATIONVAULT ™ ADMIN & USER GUIDE STATIONVAULT DISPLAY MESSAGES The StationVault scrolling banner provides information about the current status of the unit. KEYPAD DISPLAY DESCRIPTION ACTION Locked Key is secured; stand-by-status An incorrect PIN was entered; or PIN is Enter a correct PIN; or Download new PIN Invalid PIN not in the unit’s memory...
