USER'S MANUAL

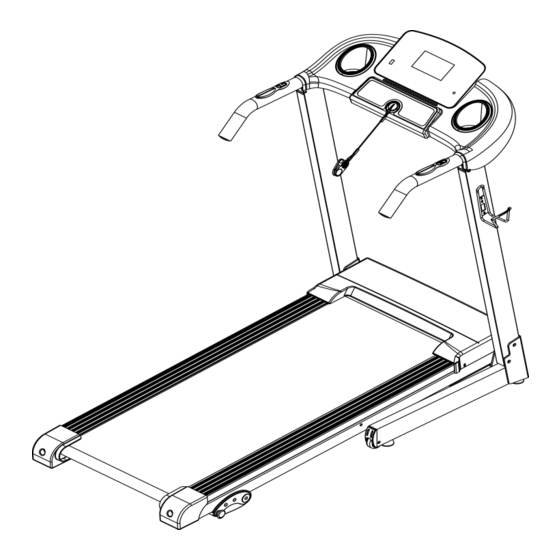

MOTORIZED TREADMILL
Model: CTM5102
Read all instructions carefully before using this
treadmill. Retain this user's manual for the
future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CTM5102 and is the answer not in the manual?

Questions and answers

Jim
January 23, 2025

How do you install a air pressure bar on a borgusi treadmill model ctm5102

1 comments:
Mr. Anderson
February 10, 2025

The manual does not provide specific instructions on installing the air pressure bar. However, it mentions its role in folding and unfolding the treadmill. When pulling up the base frame, the air pressure bar locks into the round tube. When pulling down, you kick the air pressure bar to release the frame.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for BORGUSI CTM5102

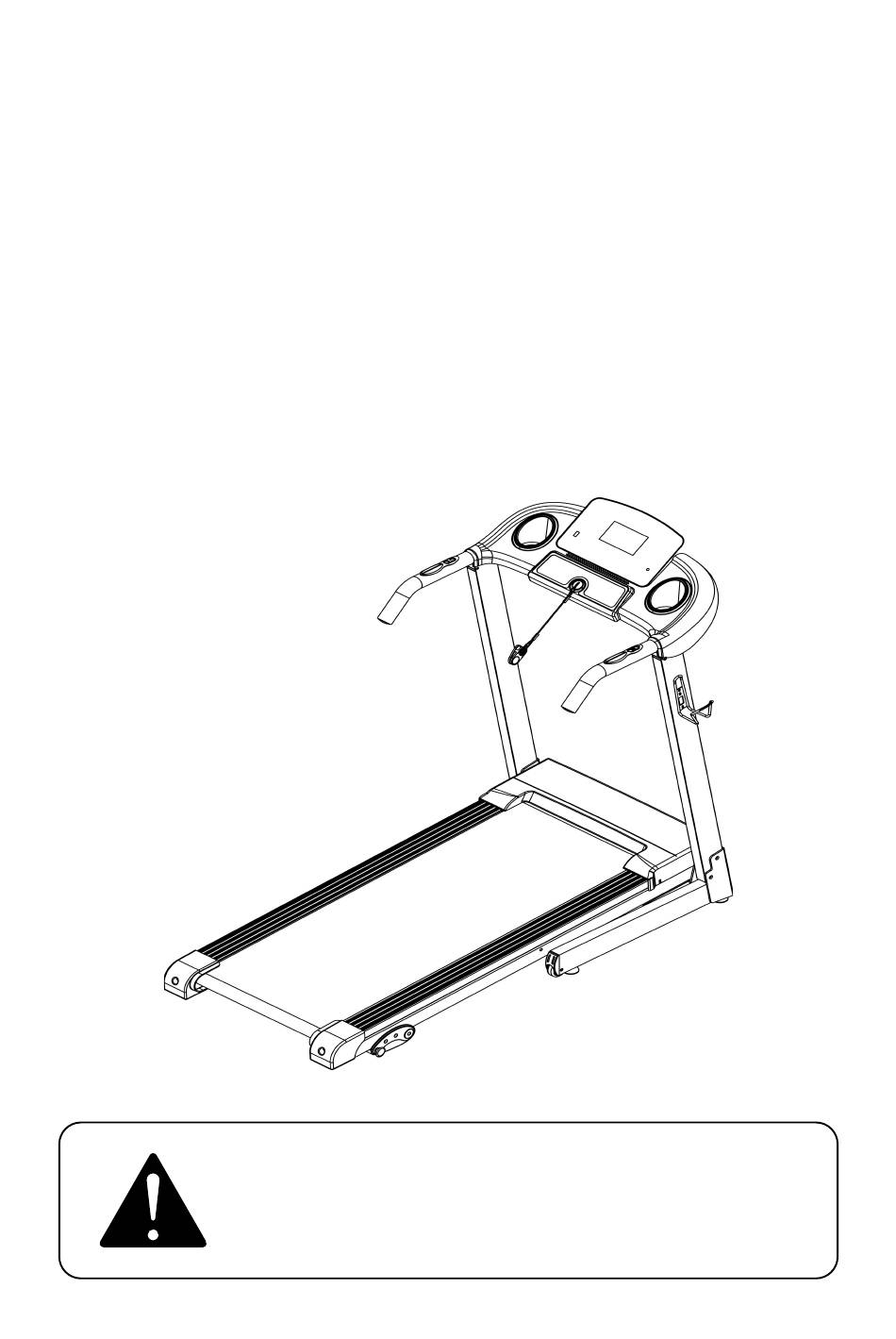

  • Page 1 BORGUSI USER’S MANUAL MOTORIZED TREADMILL Model: CTM5102 Read all instructions carefully before using this treadmill. Retain this user’s manual for the future reference.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY PRECAUTIONS ---------------------------------------------------------- 1 GROUNDING METHODS -------------------------------------------------------- 2 TECHNICAL PARAMETERS ------------------------------------------------------- 2 ASSEMBLY INSTRUCTIONS -------------------------------------------------- 3 - 6 FOLDING INSTRUCTIONS ------------------------------------------------------- 7 OPERATION GUIDE ------------------------------------------------------- 8 - 12 TREADMILL MAINTENANCE ----------------------------------------------- 13 - 14 TROUBLE SHOOTING GUIDE---------------------------------------------------- 15 EXERCISE INSTRUCTIONS-------------------------------------------------- 16 - 17 WARM UP INSTRUCTIONS ------------------------------------------------------ 18 EXPLODED PARTS DIAGRAM --------------------------------------------------- 19...
  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS Warning: We suggest that you should consult with your physician or health professional before starting your workout, especially for the age up to 35 old or health problem-related people. We take no responsibility for any injury or damage if you don’t follow our specifications. The treadmill should be carefully assembled and covered with the motor shield, then connected to the power.
  • Page 4: Grounding Methods

    GROUNDING METHODS This treadmill must be grounded. If it malfunctions or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This treadmill is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
  • Page 5: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Assembly Parts Checklist: When you open the carton, and you will find the below parts in the carton. Description Spec. Description Spec. Qty. Qty. Bolt ST4.2*19 Main frame 5 mm 6# Allen wrench 6 mm 5# Allen wrench M8*42 Adjustable pad Bolt...
  • Page 6 STEP 1: Open the carton, take out the above spare parts, put the Main frame (1) on the level ground. STEP 2: Hold on the computer frame and use the 5# Allen wrench (12), the Bolt (51) and the Lock washer (64), fix the computer frame onto the left and right upright frame.
  • Page 7 STEP 4: 1. Fold up the Main frame (1) firstly. 2. Use the Bolt (54) and the Lock nut (58) to lock the Adjustable pad (16) into the Main frame (1). Refer to the picture left. 3. Use the Wrench with screwdriver (61) and the 5# Allen wrench (12) to lock the bolt tightly.
  • Page 8 STEP 6: Use the Wrench with screwdriver (61) and the Bolt (59) to lock the Bottle cage (66) onto the right upright frame. STEP 7: 1. Put the Safety key (49) on the comput- 2. Insert the Safety insert (15) into the Main frame (1).
  • Page 9: Folding Instructions

    FOLDING INSTRUCTIONS Pulling up: Pull up the base frame at position (A) till hearing the sound that the air pressure bar (B) is locked into the round tube. Notice: Please unplug the safety insert when folding. Pulling down: Support place (A) with hand, kick the place of the air pressure bar (B), then the base frame will fall down automatically.
  • Page 10: Operation Guide

    OPERATION GUIDE 1. DISPLAY WINDOW 2. LCD WINDOW DISPLAY DETAILS PROG: Show programs, “---” is displayed in manual mode. TIME: Show running time. SPEED: Show speed. During the start-up process, a 3-second countdown is displayed: 3, 2, 1. PULSE: Show heartbeat data. When there is a heartbeat, the heartbeat value is displayed; when there is no heartbeat, the character “P”...
  • Page 11 3.2.2. When the treadmill is in FAT mode, the chosen sequence is “Sex”“Age”“Height” “Weight”. 3.3. START button: Press this button to start the treadmill, the treadmill will run at the lowest speed or at the speed of the default program after 3 seconds of time count down. 3.4.
  • Page 12 will enter into the next section automatically, the speed will change as of next section data. When finishing one program, the treadmill will stop smoothly. During the running, you can change the speed by the SPEED −/+, when the program enters the next section will come back to the current speed.
  • Page 13 6.2. BMI REFERENCE: (BMI) <19 Under weight 19-26 Normal weight 26-30 Over weigh >30 Obesity 7. SLEEP FUNCTION Stopped for more than 2 minutes without any operation, the system is reset to standby state and the backlight is off. When it is more than 10 minutes, the system turns off all displays and enters a sleep mode.
  • Page 14 DATE TABLE: etting time/20=interval running time TIME PROG SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED - 12 -...
  • Page 15: Treadmill Maintenance

    TREADMILL MAINTENANCE Warning: Always unplug the treadmill from the electrical outlet before cleaning or servicing the treadmill. Clean: General cleaning the treadmill will greatly prolong the treadmill. Keep the treadmill clean regularly. Be sure to clean the exposed part of the deck on either side of the walking belt and also the side rails.
  • Page 16 RUNNING BELT ADJUSTMENTS ● Place the treadmill on a level surface. Run the treadmill at approximately 3.7-5 mph, checking the running condition. ● If the belt has drifted to the right, unplug the safety key and power switch, turn the right adjusting bolt 1/4 turn clockwise, then start running until center- ing the belt.
  • Page 17: Trouble Shooting Guide

    TROUBLE SHOOTING GUIDE CODE REASON SOLUTION 1. Check if the computer and the bottom control board Message wire is broken wire connect well. 2. Check if IC on the bottom control board is loosen, or not connected well reset the IC. 1.
  • Page 18: Exercise Instructions

    EXERCISE INSTRUCTIONS Warm up stage: If you are over 35 years old or have health problems, also it`s your first time doing exercise, please consult with your doctor or professional people. Before you use the motorized treadmill, please learn how to control the treadmill first, know well how to start, stop, adjust the speed and so on.
  • Page 19 Exercise frequency: The cycle time: 3-5 times/week, 15-60 minutes/times. Make up the schedule of workout scientific, not only for your hobby. You can control the running intensity by adjusting the velocity and incline of the treadmill. We suggest that you don’t set the incline at first; improving the incline is the effective way to strengthen the exercise intensity.
  • Page 20: Warm Up Instructions

    WARM UP INSTRUCTIONS Before exercise, it is better to do stretching exercises . Warm muscles stretch more easily, spend the first of 5-10 minutes to warm up. Then in accordance with the following methods to stop and do stretching exercises - do five times, each leg every time 10 seconds or more time to do it again after the end of the exercise.
  • Page 21: Exploded Parts Diagram

    EXPLODED PARTS DIAGRAM - 19 -...
  • Page 22: Parts List

    PARTS LIST Description Qty. Description Spec. Spec. Qty. Main frame Computer top cover Base frame Lock washer Upright frame Bolt ST4.2*20 6# Allen wrench 6 mm Speed +/- button Computer bracket Start/stop buttont Standard spring washer Control board Rubber pad Computer bottom wire Oil bottle Computer top wire...
  • Page 23 Spec. Spec. Description Description Qty. Qty. Bolt M8*25 Motor bottom cover Bolt M8*42 Bolt ST4.2*19 Bolt M8*65 - 21 -...
