CrewPlex DR10-900 Operating Manual

Hide thumbs Also See for DR10-900:
Table of Contents

Advertisement

Quick Links

Download this manual
COPYRIGHT © 2023 CrewPlex, LLC. All rights reserved. CrewPlex® and SmartBoom® are trademarks of CoachComm, LLC. All
other trademark references in this document are property of their respective owners.
Document Reference: D0000687_A
CrewPlex, LLC
205 Technology Parkway
Auburn, Alabama 36830 USA

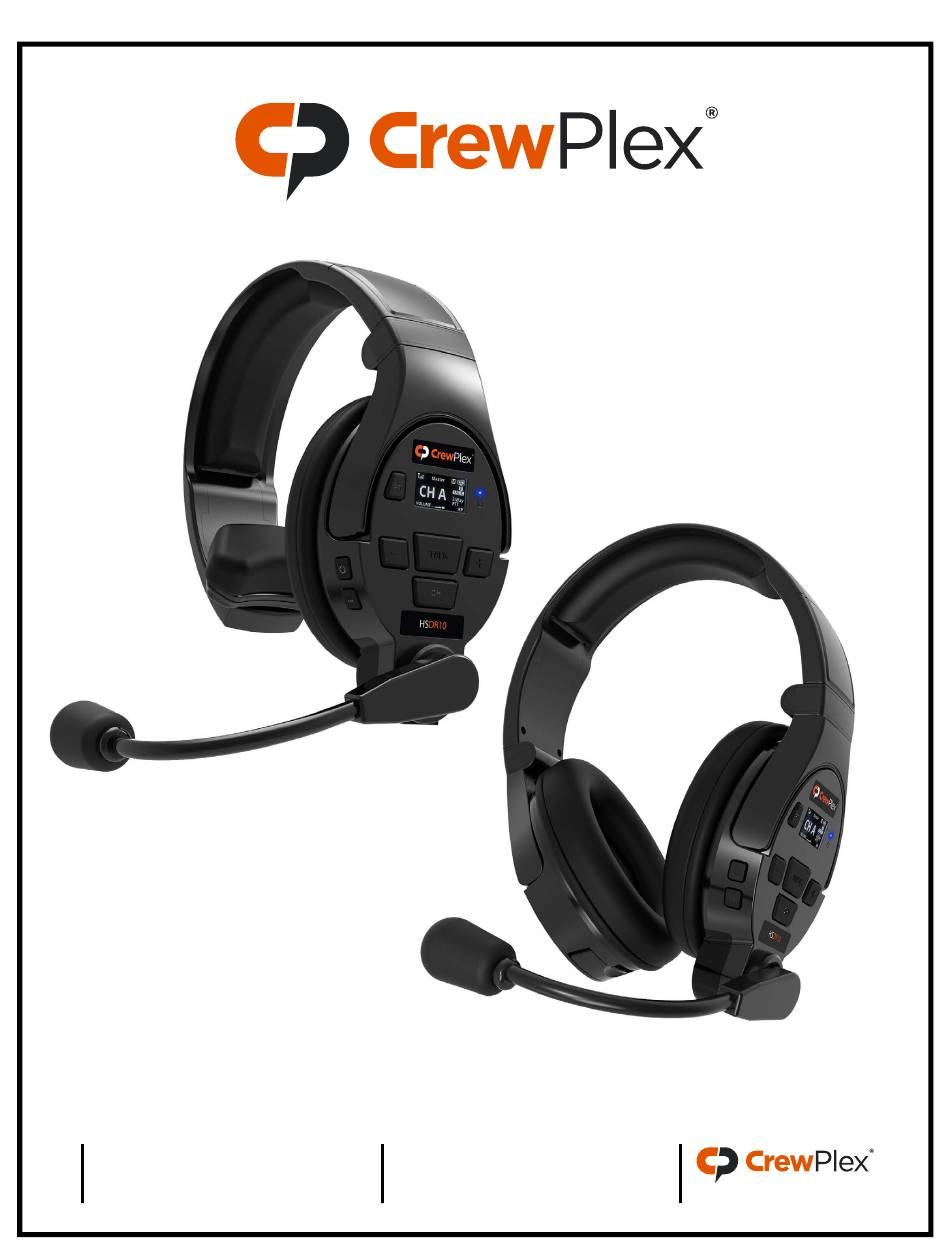

O p erat in g m an u al
D R 1 0 - 9 0 0
Phone +1.334.321.1400
Fax +1.334.321.1162
www.crewplex.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DR10-900 and is the answer not in the manual?

Questions and answers

Related Manuals for CrewPlex DR10-900

Summary of Contents for CrewPlex DR10-900

  • Page 1 O p erat in g m an u al D R 1 0 - 9 0 0 COPYRIGHT © 2023 CrewPlex, LLC. All rights reserved. CrewPlex® and SmartBoom® are trademarks of CoachComm, LLC. All other trademark references in this document are property of their respective owners.

  • Page 2: Table Of Contents

    DISPLAY INDICATORS ..........................3 HEADSET SETUP ............................. 4 SYSTEM SETUP ............................5 BATTERY ..............................6 OPERATION .............................. 7 MENU SETTINGS............................8 DEVICE SPECIFICATIONS ........................10 PRODUCT CARE AND MAINTENANCE ....................12 PRODUCT SUPPORT ..........................12 LICENSE INFORMATION......................... 13 CREWPLEX WARRANTY STATEMENT ....................14...

  • Page 3: Introduction

    CrewPlex HS900XR all-in-one design wireless headsets combines the great sound quality and excellent range of CrewPlex DR10 with the comfortable fit, exceptional noise isolation, and flip-up microphone muting technology of the SmartBoom PRO headset, but without the wire. In addition, the IP54-rated headset is built to endure the wear and tear of everyday use, as well as the extremes of outdoor environments.

  • Page 4: What's Included With Hsdr10-900

    Part Number Description CrewPlex Accessories CAC-USB6-CHG CrewPlex 6-Port USB Charger CAC-CPDR-5CASE IP67-rated CrewPlex Hard Travel Case CAC-CP-SFTCASE CrewPlex Soft Travel Case CPBT-HSDRC-66 CrewPlex DR10 Headset 6 + 6 Drop-In Charger CP-REC-900 CrewPlex 900MHz Receiver CAC-TRI-6FT CrewPlex 6-Foot Compact Tripod Kit...

  • Page 5: Controls

    CONTROLS OLED Screen PT Button LEDs Volume +/– Buttons Talk Button USB Charger OLED Screen Power Button PT Button Connection LEDs Mode Button R Button Volume +/– Buttons (No current function) Talk Button Channel Button USB Charger Power Button Connection Mode Button R Button (No current function)

  • Page 6: Headset Setup

    HEADSET SETUP Headset Adjustment: Use the slide adjustment on each side of the headband to achieve proper fit and size. Figure 1: Adjusting Headset Sizing 2. Mic Position: For best performance, it is recommended the microphone be positioned directly in front of your mouth, sitting a finger’s width from your lips.

  • Page 7: System Setup

    SYSTEM SETUP Power on. Press and hold the POWER button for two (2) seconds until the screen turns on. 2. Access the menu. Press and hold the MODE button for three (3) seconds until the screen changes to <SETTING MODE>. Short-press MODE to scroll through the settings, and then scroll through setting options using VOLUME +/−.

  • Page 8: Battery

    • Master – When selected, the headset is locked into only logging into the Master. • Submaster – When selected, the headset is locked into only logging into the Submaster. d. Confirm headset’s security code. Devices must use the same security code to work together as a system.

  • Page 9: Operation

    OPE RATING M U LTI PLE DR 10 - 9 00 SYST E M S I N O N E LOCATION Each separate DR10-900 system should use the same Group and Security Code for all devices in that system. CrewPlex recommends that...

  • Page 10: Menu Settings

    Allows you to hear yourself while talking. Louder environments may require you to enable your side tone. Mic Gain 1–8 Determines the headset microphone audio level being sent from the microphone pre amp. CrewPlex recommends Mic Gain be set to 1. Channel A On, Off Channel B On, Off (Not available in Roam Mode.)
  • Page 11 Setting Default Options Description PT Button Channel Switch, Determines the headset's PT button behavior when a Channel Switch two-way radio is connected to the system. (Not avail- + Trigger, Trigger able in Roam mode - see Tech Menu below.) Local, Trigger System, Off *Repeater Mode is the default setting.

  • Page 12: Device Specifications

    DEVICE SPECIFICATIONS Specification* CP-HSDR10-900S CP-HSDR10-900D Microphone Microphone Type Electret Condenser Frequency Response 20–16,000 Hz Mic Sensitivity -45 ± 2 dBV/Pa at 1 kHz Pattern Unidirectional Output Impedance 1.5 kΩ Biased Voltage 1.5V~2.2V Speaker (Headphone) Frequency Response 20–20,000 Hz Nominal Impedance 100 Ω...
  • Page 13 USB C; 5 V; 1–2 A * Notice about Specifications: While CrewPlex makes every attempt to maintain the accuracy of the information contained in its product manuals, that information is subject to change without notice. Performance specifications included in this manual are design- centered specifications and are included for customer guidance and to facilitate system installation.

  • Page 14: Product Care And Maintenance

    Material Authorization Number will ensure that your equipment is handled promptly. All shipments of CrewPlex products should be made via UPS, or the best available shipper, prepaid and insured. The equipment should be shipped in the original packing carton; if that is not available, use any suitable container that is rigid and of adequate size to surround the equipment with at least four inches of shock-absorbing material.

  • Page 15: License Information

    LICENSE INFORMATION CRE WPLE X HSDR10 - 90 0 F CC CO M PL IA N C E STAT EM EN T 00005219 & 00005220 (FCCID: 2AX9C-00005220) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 16: Crewplex Warranty Statement

    CREWPLEX WARRANTY STATEMENT CrewPlex products are warranted to be free from defects in materials and workmanship for a period of two years from the date of sale to the end user, under the following conditions: • First year of warranty included with purchase.
