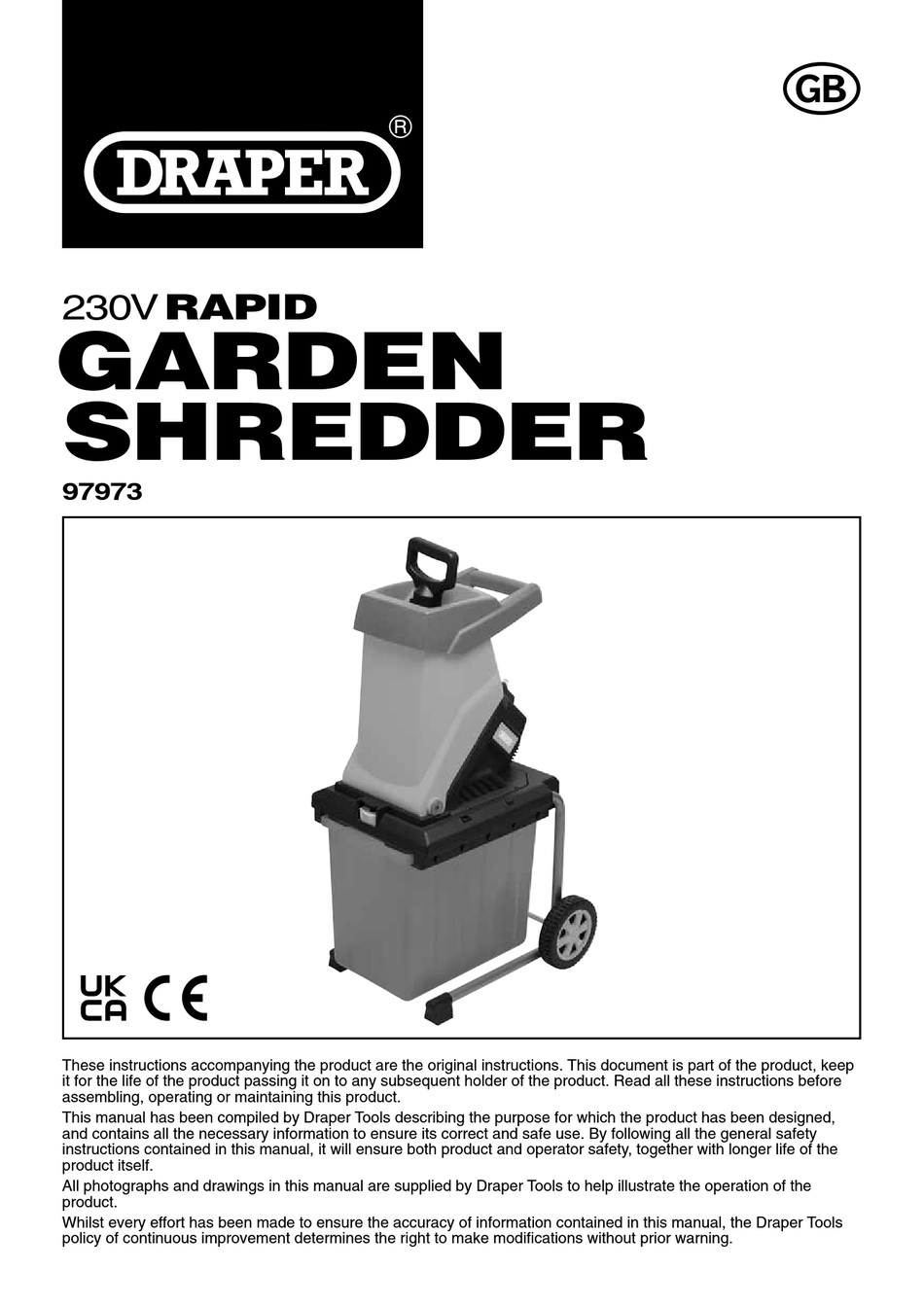

230V RAPID
GARDEN
SHREDDER
97973
These instructions accompanying the product are the original instructions. This document is part of the product, keep
it for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed,
and contains all the necessary information to ensure its correct and safe use. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rapid GRS2500D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Draper Rapid GRS2500D

Summary of Contents for Draper Rapid GRS2500D

  • Page 1 All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.

  • Page 2: Title Page

    Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.

  • Page 3: Table Of Contents

    CONTENTS 2.1 CONTENTS TITLE PAGE 1.1 INTRODUCTION ......................... 2 1.2 REVISION HISTORY ......................2 1.3 UNDERSTANDING THIS MANUAL’S SAFETY CONTENT ..........2 1.4 COPYRIGHT © NOTICE ..................... 2 CONTENTS 2.1 CONTENTS ......................... 3 WARRANTY 3.1 WARRANTY ........................4 INTRODUCTION 4.1 SCOPE ..........................5 4.2 SPECIFICATION .........................

  • Page 4: Warranty

    This warranty applies in lieu of any other warranty expressed or implied and variations of its terms are not authorised. Your Draper warranty is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the warranty period.

  • Page 5: Introduction

    INTRODUCTION SCOPE For the shredding of garden waste, for foliage with a maximum capacity of 40mm. Any other application is considered misuse. SPECIFICATION Stock No........................... 97973 Part No..........................GRS2500D Motor: Rated voltage ........................ 230V~ Rated frequency ......................50Hz Rated input ........................2500W Speed (no load) ........................

  • Page 6: Health And Safety Information

    HEALTH AND SAFETY INFORMATION GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE When using any type of power tool there are steps that should be taken to make sure that you, as the user, remain safe. Common sense and a respect for the tool will help reduce the risk of injury. Read the instruction manual fully.

  • Page 7: Residual Risk

    HEALTH AND SAFETY INFORMATION Wait for the machine to stop. Unless the machine is fitted with a safety brake, some parts may continue to move due to momentum. Wait for all parts to stop, then unplug it from the power supply before making any adjustments, carrying out maintenance operations or just finishing using the tool.

  • Page 8: Technical Description

    TECHNICAL DESCRIPTION IDENTIFICATION (10) (11) On/off switch. Hopper. Circuit breaker button. Feed chute Reamer knob. (10) Wheel and cover. Plunger. (11) Support feet. Collection box catch. Collection box. Top feed housing. – 8 –...

  • Page 9: Unpacking And Checking

    Lay the contents out and check them against the parts shown below. If any part is damaged or missing, please contact the Draper Help Line (the telephone number appears on the Title page) and do not attempt to use the product.

  • Page 10: Preparing The Shredder

    PREPARING THE SHREDDER 8.1 ASSEMBLY – FIGS. 1 - 5 1. With the machine upside down turn the two feet to the appropriate location (Fig.2). 2. Place the axle bar between the legs and mount the wheels ensuring the nut is not too tight (Figs 3 & 4). Attached wheel cover (Fig 5) and turn the machine the right way up.

  • Page 11: Operating The Shredder

    OPERATING THE SHREDDER 9.1 START UP OPERATION – FIGS. 6 - 7 Press the switch (1) marked “I” to start and marked “O” to stop the motor. Press the “circuit breaker” button (2) if the machine does not work, ensure you have connected to the power supply.

  • Page 12: Collecting The Shredded Material

    OPERATING THE SHREDDER NOTE: Your fingers must never enter the in-feed chute. Never use the tool if the hopper is not fitted. Do not over reach. 9.3 COLLECTING THE SHREDDED MATERIAL – FIG. 9 Shut-off the power unit before attaching or removing the box.

  • Page 13: Maintenance & Troubleshooting

    10. MAINTENANCE AND TROUBLESHOOTING 10.1 MAINTENANCE Regular inspection and cleaning reduces the necessity for maintenance operations and will keep your tool in good working condition. 1. Warning: During maintenance and cleaning ensure the machine is disconnected from the mains. 2. When the appliance is stopped for servicing, inspection, or storage, or to change an accessory, switch off and pull the plug from the mains supply before making any inspections, adjustments, etc.

  • Page 14: Explanation Of Symbols

    11. EXPLANATION OF SYMBOLS 11.1 EXPLANATION OF SYMBOLS Class II construction Read the instruction manual. (Double insulated). WEEE – Waste Electrical & Electronic Equipment. Wear safety glasses. Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish. Continuous A-Weighted Sound Wear ear defenders.

  • Page 15: Disposal

    12. DISPOSAL 12.1 DISPOSAL – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. – Contact your local authority for details of collection schemes in your area. In all circumstances: •...
  • Page 16 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
