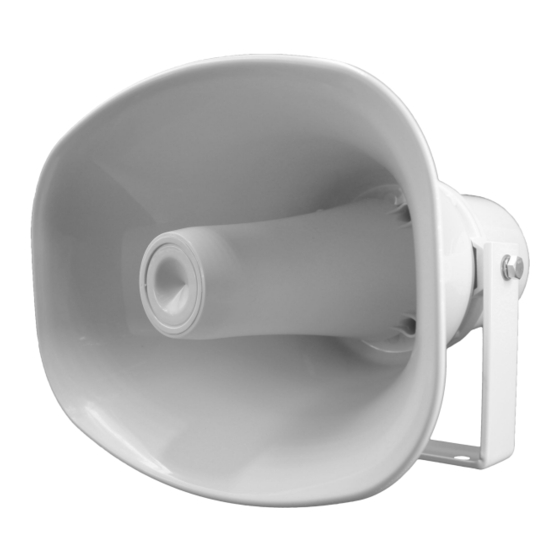

- Page 1 Outdoor Network Horn Speaker M-170E User Manual Http://www.lyintl.com...
- Page 2 M-170E About the User Manual This User Manual is available and effective upon completion of development of the outdoor network horn speaker. The User Manual includes product description, matters needing attentions in use, instructions on system connection, instructions on use of product and technical specifications of the terminal.
-
Page 3: Table Of Contents
M-170E CONTENTS Introduction............................1 Product Overview..........................1 Product Features..........................1 Product Information........................... 2 Side View............................2 Front View.............................2 Rear View............................3 Mounting Bracket View....................... 3 Connection and Installation......................4 Connection Diagram........................4 Installation Instruction......................... 4 System Connection Diagram......................5 Connection Diagram......................... 6 Terminal Function Table........................6... -
Page 4: Introduction
M-170E Introduction Thank you for purchasing our products. All products have been rigorously tested before leaving the factory, abide by the quality of commitment. This product is widely used in schools, gymnastics, square venues, parks, parking lots, railway stations, airports, villas, shopping malls and other places, which is the ideal choice for public address. -
Page 5: Product Information
M-170E Product Information Side View Unit: mm Front View Http://www.lyintl.com... -
Page 6: Rear View
M-170E Rear View Mounting Bracket View Http://www.lyintl.com... -
Page 7: Connection And Installation
M-170E Connection and Installation Connection Diagram Installation Instruction The bracket can be rotated at various angles. First tighten the nut to fix the bracket, and then secure the screws into the mounting holes and fix them on the wall. Http://www.lyintl.com... -
Page 8: System Connection Diagram
M-170E System Connection Diagram Control host NETWORK PUBLIC ADDRESS CENTRE Other networks or Other device devices COMPACT DISC DRIVER POWER FULL ALARMING EMC MIC Ethernet 以 太 网 Horn Speaker Horn Speaker Horn Speaker Horn Speaker Note: ① The diagram above only provides general instructions on application of the outdoor network horn speaker. -
Page 9: Connection Diagram
M-170E Connection Diagram Network PA System NETWORK PUBLIC ADDRESS CENTRE COMPACT DISC DRIVER POWER FULL ALARMING EMC MIC To ensure the normal operation of the entire system, a router must be mounted in the network where the device is connected. -
Page 10: Operating Instructions On Terminal Settings On The Host
M-170E Operating Instructions on Terminal Settings on the Host IP Address Settings The speaker can be customized to modify network parameters. Please read this chapter carefully for custom settings of network parameters: Method 1: 1. Modify the IP address of the host/computer, requiring that the IP address of the host/computer and the speaker must be on the same network segment. -
Page 11: Specifications
M-170E Specifications Item Parameters Rated Power (RMS) 15W 8Ω Amplifier ≥70dB Freq. Resp. 350Hz-10KHz Unit Driver 2.5" Sensitivity 105dB±2dB Speaker MAX. SPL. 117dB±2dB Freq. Resp. 350Hz-10KHz ≥1% Distortion Power Voltage PoE+(IEEE 802.3at) / DC24V 2A (Standby) Network Interface RJ45（10/100M） DHCP, TCP/IP, UDP, ICMP, IGMP (multicast), Supported Protocol 802.1x, HTTP, HTTPS, FTP, DNS, DDNS,... - Page 12 M-170E © 丨 The technical data will be subject to changes without notices. Http://www.lyintl.com...
