Summary of Contents for LYINTL WS-602WF

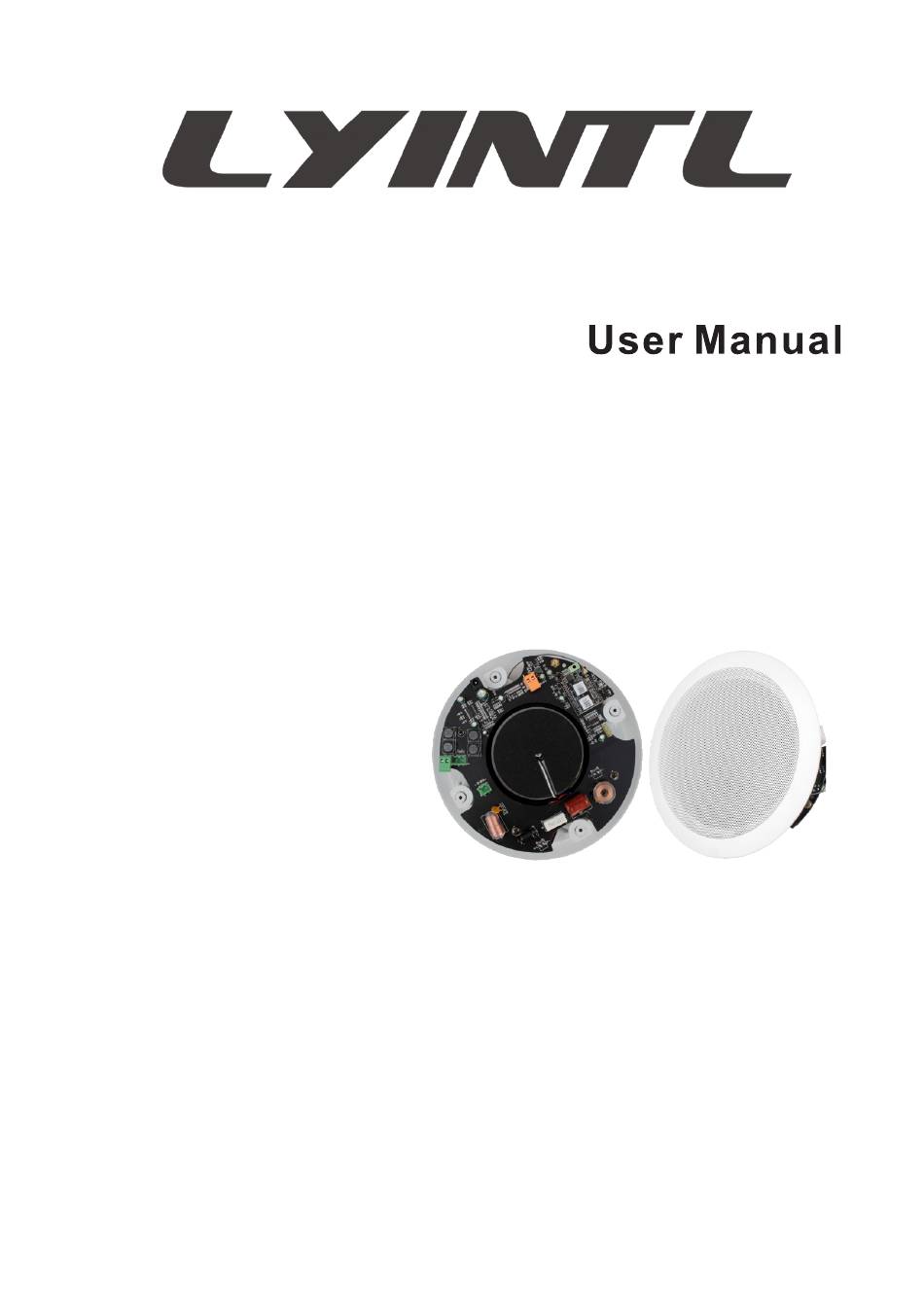

- Page 1 2 Channel WIFI & Bluetooth Wireless Coaxial In-ceiling Speaker WS-602WF 4 Channel WIFI & Bluetooth Wireless Coaxial In-ceiling Speaker WS-602WF WWW.LYINTL.COM...
-
Page 2: Safety Precautions
·If you detect smoke or a strange smell coming from the unit. ·If the unit falls, or the unit case breaks. ·If the power supply cord is damaged (exposure of the core, disconnection, etc.) ·If it is malfunctioning (no tone sounds.) Page 1 http://www.lyintl.com... - Page 3 ※ 2-way coaxial system containing one 6" woofer and one 1" tweeter. ※ DC 24V power supply with AC adapter. ※ Flush-mount dog ears installation. ※ Attractive color ABS resin finish with white metal grille suits any decor. http://www.lyintl.com Page 2...
-
Page 4: Specification
5 & 6. These two outputs are available to expand for 4CH speaker system 7. Power adapter: this adapter supplies DC24V to the master speaker 8. Audio input of slave speaker: ready for connection with the master speaker Specification Model Number WS-602WF WS-604WF 2*30W @ 8Ω 4*30W @ 8Ω Rated Power... - Page 5 • Open the MUZO Player App and you will see the Figure 1. • Select ‘Add Device’ at the bottom of the screen then you will see the Figure 2. • Select ‘MUZO Cobblestone’ then you will see the Figure 3. Figure 1 Figure 2 Figure 3 http://www.lyintl.com Page 4...
- Page 6 MUZO Player App). • As the Figure 10 shows,press the icon ‘ ’ to enter the DEVICE LIST as the Figure 11, Figure 8 Figure 9 Figure 10 Page 5 http://www.lyintl.com...
- Page 7 WiFi speaker. Enter the menu and select ‘iHeartRadio’. Select ‘Genre’ to choose the genre of radio you would like to listen to or select ‘Country’ and then the ‘Region’ to select localized radio stations. http://www.lyintl.com Page 6...
- Page 8 DJs you like, intelligent recommendation based on your listening history, your next favorite songs are waiting for you. NOTE: Currently only available on iOS. QINGTINGFM Enjoy live radio, news, music, fiction, comic, and podcast radio service. NOTE: Currently only available on iOS. Page 7 http://www.lyintl.com...
- Page 9 In order to apply this firmware, tap on “New” and you will see a pop up message. Select upgrade and wait until the device upgrade process finishes. NOTE: Do not conduct any other operation via the phone or the speaker unit while the firmware update is in progress. Figure 16 Figure 17 http://www.lyintl.com Page 8...
- Page 10 • Your device will disconnect from the Speaker network and the Speaker will then connect to your Wi-Fi network. • Your device will say “Connected” to indicate that your Speaker has successfully connected to your Wi-Fi network. Wi-Fi Discovery Menu Connecting the speaker to Wi-Fi network Figure 20 Page 9 http://www.lyintl.com...
- Page 11 Figure 21 CHANGE DEVICE NAME (Figure 22) The factory default device name is ex. “Linkplay_XXXX”,you can click the “Network” tab to “Change device name” to be the one you want,and click “OK” then to “Save” it. Figure 22 http://www.lyintl.com Page 10...
-
Page 12: Troubleshoot
Update the firmware if needed and keep connection to Speaker until firmware is complete. 4.Under the Status tab you can see the current firmware version number. Will I be able to listen to Apple Music through the Speaker from my iPhone, iPad, or Macbook Pro? Yes. Page 11 http://www.lyintl.com... -
Page 13: Frequently Asked Questions
To make sure you have the latest version, click the "System" tab and click on "Online Update". Update the firmware if needed and keep connection to Speaker until firmware is complete. Under the Status tab you can see the current firmware version number. http://www.lyintl.com Page 12... - Page 14 Do the Speakers need to be on the same firmware version to stay in sync with one another? Yes! Please keep the firmware in sync since we are still optimizing certain features that require the latest firmware. Page 13 http://www.lyintl.com...
- Page 15 At the end of the pairing,the name “BGM SYSTEM” appears on the paired list of your mobile device. BGM SYSTEM 3. Play music using any app on your moblie device. * The next time the input source is switched to Bluetooth, this speaker automatically connects to the last Bluetooth device that was connected. http://www.lyintl.com Page 14...
