Tableau Forensic TD4 Duplicator

BEFORE USING THE UNIT

Firmware updates are provided for Tableau Forensic products on a regular basis.
As a best practice before using the unit, we recommend confirming it is running the
most current firmware. Follow the steps below:
1. Visit the Tableau Download Center and go to the TD4 section:
opentext.com/products/tableau-download-center
2. On TD4, navigate to the Side Navigation menu
3. Compare the Firmware Version number shown near the top of the TD4's
About screen to what is available on the Tableau Download Center.
If the unit is not running current firmware, follow the steps below to update:
1. On a Windows PC, go to the Tableau Download Center and download the
TD4 firmware package file.
2. Save the TD4 firmware package file to an external drive compatible with
TD4 (USB recommended).
3. Connect the drive that contains the TD4 firmware package file to TD4.
4. On TD4, navigate to the Side Navigation menu
5. Select "Update Firmware" and then browse the drive/filesystem to select the
TD4 firmware package file.
TD4 will automatically apply the update upon selecting the firmware file.

PRODUCT INTRODUCTION

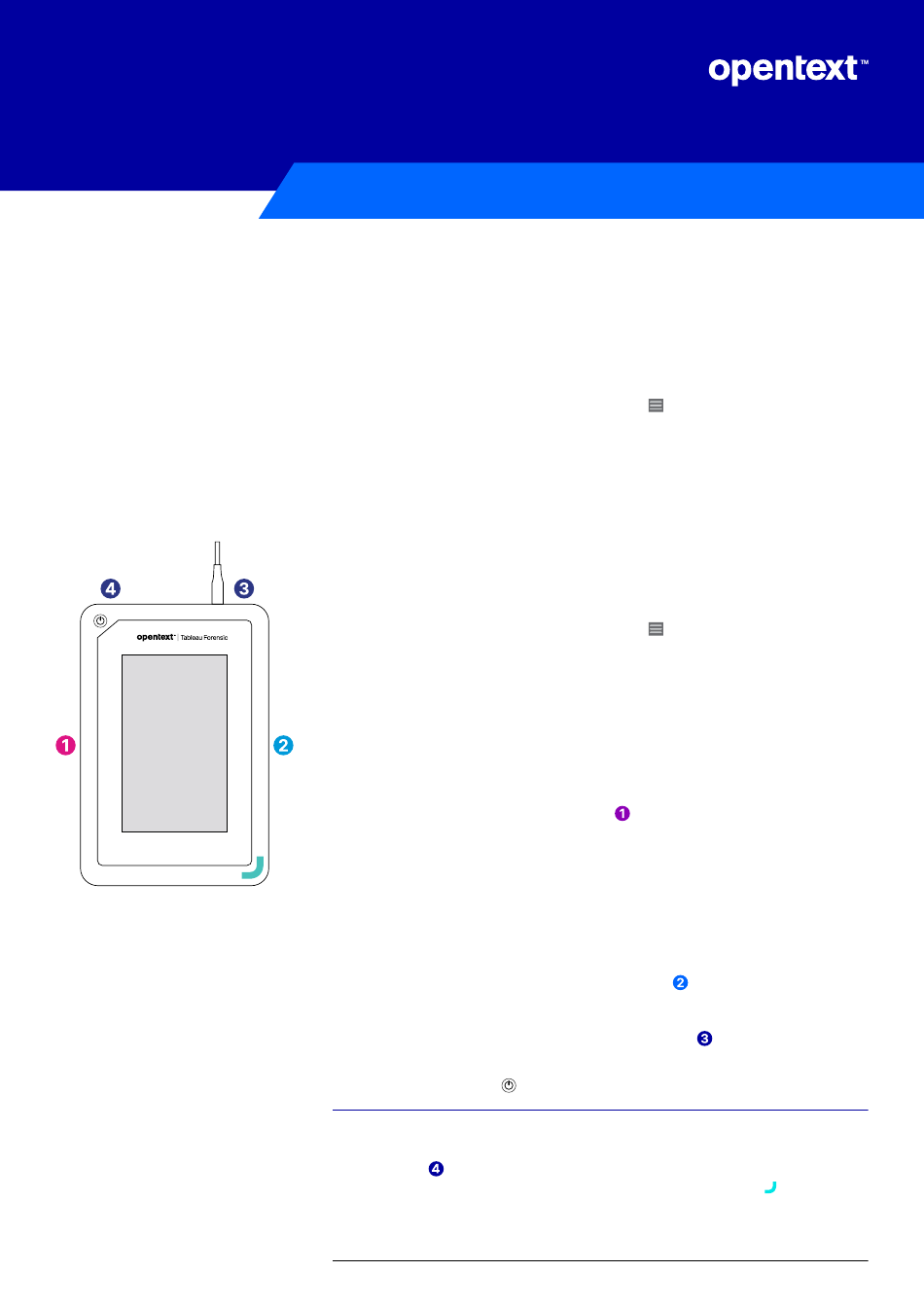

TD4 operates as a standalone device for forensic triage and collection of digital media.
1. Source Drive – Connect one drive to the TD4's source (left) side, either SATA/
SAS, PCIe*, USB-C, FireWire**, or IDE***
*A Tableau Forensic PCIe Adapter is required to connect PCIe media.
**The Tableau Forensic PCIe-FireWire Adapter [TDA7-9] is required to connect
FireWire 400 or 800 devices.
***The Tableau Forensic PCIe-IDE Adapter [TDA7-5] is required to connect
IDE drives.
2. Destination Drive(s) – Connect one or more drives to the TD4's destination
(right) side, either SATA (x2), PCIe*, or USB-C (x2)
*A Tableau Forensic PCIe Adapter is required to connect PCIe media.
3. Power – Connect the power supply to the TD4's DC In
4. Power On – Press the power button and begin operation through the TD4's
touch-screen interface
USB-C Accessory Port (optional) – Connect a USB storage device to save
log files or a USB keyboard/mouse for easier data entry via the back USB-C
port on TD4 .
Status LED – Located in lower right corner of the TD4's top panel
LED indicator color guide:
White: Device starting up , Blue: Active job, Green: Job successful,
Off: Idle, Red: Error
