Summary of Contents for SET 1501 H

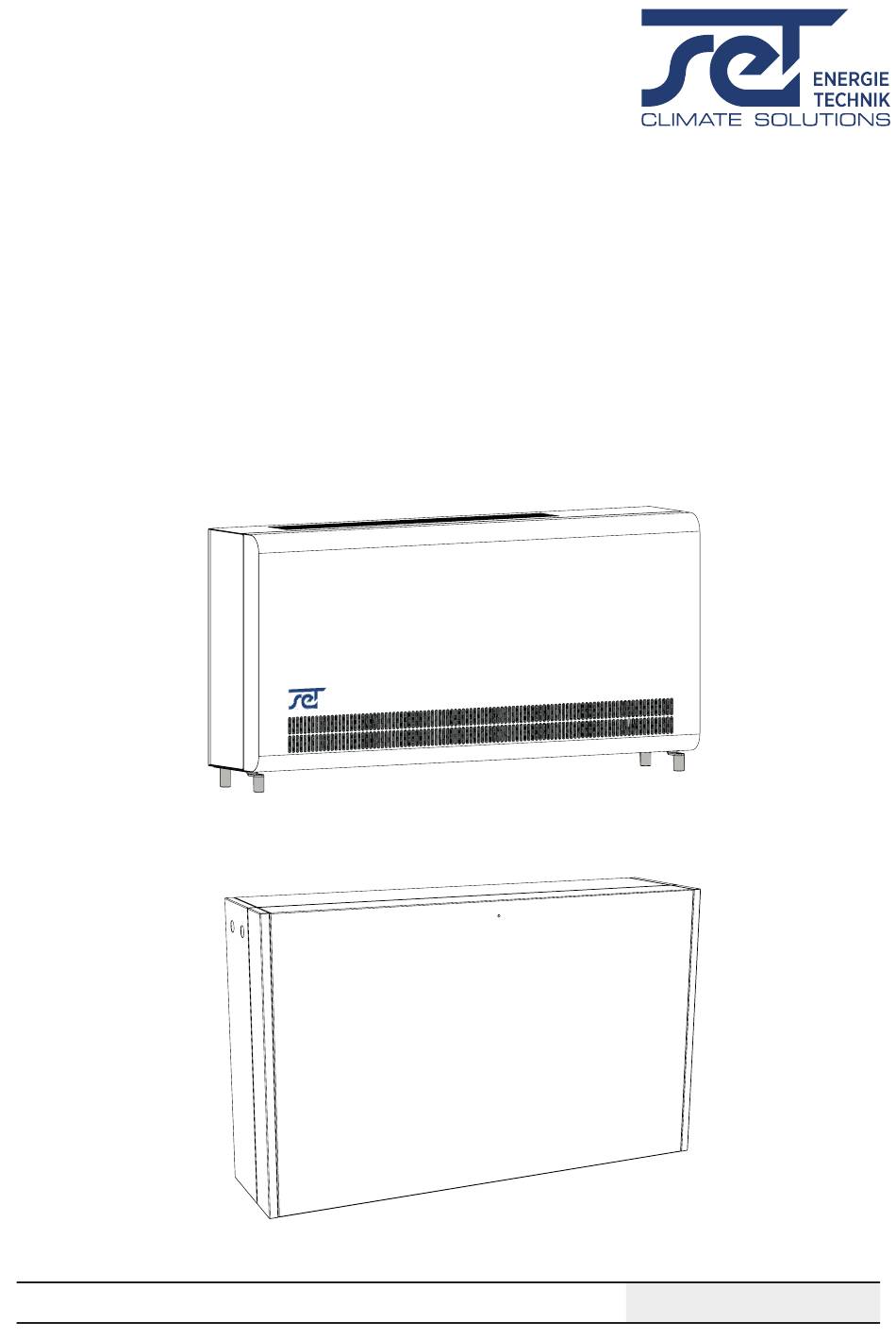

- Page 1 SERVICE MANUAL SET 1501 T / 2501 T / 3501 T SET 1501 H/ 2501 H/ 3501 H Rev. 1.1 • 2021-W50-1...
-
Page 3: Table Of Contents
Introduction: Table of contents Introduction Table of contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Table of contents . -
Page 4: Overview
The target group for this service manual is the technicians who install and maintain the SET Target group 1501 T/ 2501 T/ 3501 T and SET 1501 H/ 2501 H/ 3501 H dehumidifier. Thus the manual covers instructions about installation, operation and maintenance. -
Page 5: Declaration Of Conformity
SET Energietechnik GmbH hereby, declare that the unit mentioned below: No.: 351510, 351516, 351511, 351517, 351512 & 351518 Type: SET 1501 T, SET 1501 H, SET 2501 T, SET 2501 H, SET 3501 T & SET 3501 H - complies with the following directives:... -
Page 6: Product Description
SET (H) Fig. 1 Functionality of SET 1501 T/ 2501 T/ 3501 T and SET 1501 H/ 2501 H/ 3501 H work in accordance with the the dehumidifier condensation principle. Humid air from the pool room is drawn into the unit by one or two fans. - Page 7 In order to check the humidity level the units are starting the fan(s) once an hour for one minute (NOTE: only applicable to SET 1501 H/ 2501 H/ 3501 H units): • If the humidity is above the selected setpoint, the unit starts dehumidifying.
- Page 8 Product description: Overall description SET (T) Pos . Part Illustration Presentation Air inlet Air outlet Drip tray Control panel (behind the cover) Cable groove (for accessory only) Humidity sensor LED lamp Wall bracket Wall mounting spacers (incl. in delivery -...
- Page 9 Product description: Overall description SET (H) Pos . Part Illustration Presentation LED lamp Control panel (behind a cover) Drip tray Cable groove (for accessory only) Wall bracket Mains electricity connection (behind the lid) Air outlet Humidity sensor Air inlet Water drain Bottom view Fig.
-
Page 10: Enclosure Dimensions
Product description: Enclosure dimensions Enclosure dimensions SET (T) 434,2 434,2 SET 3501 T - 1488 SET 3501 T - 1488 SET 2501 T - 1154 SET 2501 T - 1154 SET 1501 T - 1004 SET 1501 T - 1004 Fig. -
Page 11: Technical Data
Product description: Technical data Technical data Data sheet Specification unit 1501 T 1501 H 2501 T 2501 H 3501 T 3501 H Operating range, 40-100 40-100 40-100 40-100 40-100 40-100 humidity Operating range, °C 10-36 10-36 10-36 10-36 10-36 10-36 temperature Air volume at max. -
Page 12: Installation
Contact SET Energietechnik GmbH if necessary. Optimal • The SET 1501 H/ 2501 H/ 3501 H units are designed for installation in a heated room, adja- conditions cent to the pool room. • Do not place the dehumidifier close to a heating source, e.g. a radiator. -
Page 13: Wall Mounting
Installation: Wall mounting Wall mounting Please follow this procedure to mount the SET 1501 T/ 2501 T/ 3501 T to the wall. Mounting SET (T) (Go to page 15 for instructions on wall mounting of the SET (H) range) dehumidifiers... - Page 14 Installation: Wall mounting Fasten the two wall mounting spacers (included in the deliv- ery) on the back of the unit. Drain outlet: Connect a drain hose and make a condensate outlet through the wall. Connect a 3/4” flexible or fixed water hose to the spigot at the base of the dehumidifier.
- Page 15 Mounting SET (H) Please follow this procedure to mount the SET 1501 H/ 2501 H/ 3501 H: dehumidifiers (Go to page 13 for instructions on wall mounting of the SET 1501 T/ 2501 T/ 3501 T units) Step Description Illustration...
- Page 16 Use SET (H) wall duct in order to seal between unit and wall. See how to mount the wall duct cor- rectly in the SET (H) wall duct instruc- tion. SET (H) wall duct Instruction Fasten the two wall mounting spacers...
- Page 17 Installation: Wall mounting Drain outlet: Connect a drain hose and make a condensate outlet through the wall. Connect a 3/4” flex- ible or fixed water hose to the spigot at the bottom of the dehumidifier. Make sure the drainage has a drop of at least 2 %.
-
Page 18: Floor Mounting
Installation: Floor mounting Floor mounting Mounting Please follow this procedure to fix the floor mounts to the SET 1501 T/ 2501 T/ 3501 T unit: procedure Step Description Illustration Fasten both floor mounts to the bottom of the dehumidifier with screws and nuts (incl. -
Page 19: Electrical Connection
Installation: Electrical connection Electrical connection Risk of damaging the dehumidifier, if it has been lying down . Warning CAUTION The compressor can be damaged permanently, when the unit is started up just after it has been lying down. Caution • Wait 1 hour with the start up of the dehumidifier, if the unit has been lying down (e.g. - Page 20 12 VDC Connection of LPHW (water) or electric heating helps controlling the Heat control indoor temperature. Contact your SET dealer for more information. External RH/T There is an option for connecting an external RH/T sensor, which makes it possible to overrule sensor connection the internal sensors.
- Page 21 Installation: Electrical connection Alarm There is an option for connecting an external alarm, which makes it possible to see, when the Run/ fail dehumidifier is operating normally or has an error. In order to use this option you must create connection your own external electrical circuit and connect it to the run/fail terminal on the main PCB (Optional)
-
Page 22: Operation
Operation: Control panel Operation Control panel Risk of electric shock Warning DANGER An electric shock can cause severe burning and in most extreme cases shock to the brain, strain to the heart, injury to other organs or result in death. Caution •... - Page 23 5-34 The el/water heating coil (accessory) will start (accessory only) to heat, when the temperature is lower than the (OFF) set value. (Note the +/- 2 °C hysteresis) Extractor fan 40-99 The extractor fan (accessory) will start, when the humidity is higher than the set value, complete-...
-
Page 24: Maintenance And Care
Be cautious of sharp edges when opening the unit. Internal parts can be very hot or cold. • Switch off SET for half an hour prior to opening it. Avoid touching very hot and cold parts Caution as e.g. the pipes or evaporator. -
Page 25: Software Update And Log Files
RH_amb_ext <0..100> Humidity from external RH/T sensor (0 = Not conn.) RH_set <40..99> Humidity set point (Default 60) ExtFanSet <40..99> Extractor fan set point (Default OFF) Service [Blank] Service interval disabled “ENABLED” Service interval enabled Mode “SB” Stand-by mode state “STARTUP”... - Page 26 Step Action Use an empty USB memory stick. Obtain latest software version from SET Energietechnik GmbH and copy the file to the USB memory stick. Insert the USB memory stick in the USB port of the control panel of the unit.
-
Page 27: Trouble Shooting
Maintenance and care: Trouble shooting Trouble shooting Display messages The SET can display a number of Information and Error Messages to help finding a fault. Every single message and associated problems are explained in the following sections. Information Display Description... - Page 28 Maintenance and care: Trouble shooting Unlock Sequence The message indicates that the unit is locked. If no buttons are pressed within 5 seconds the display will return to previous fail state. Follow the steps below in order to unlock the unit. Step Action Description UnLo...
- Page 29 Normal power up Part of normal op- (flashing) beep sequence erating condition. If you cannot find the reason for the fault, switch off the unit immediately in order to prevent further damage. Contact a service technician or a SET representative.
-
Page 30: Spare Parts
Maintenance and care: Spare parts Spare parts Find spare parts If the need for spare parts occurs, please visit: shop.dantherm.com... -
Page 31: Schematics
Schematics: Cooling circuit Schematics Cooling circuit Illustration This illustration shows the cooling circuit of the SET (T) and SET (H) range. Fig. 9 Description This table lists the different parts of the cooling circuit according to Fig. 9. Pos . Description... -
Page 32: Main Pcb
Schematics: Main PCB Main PCB Illustration This illustration shows the main PCB and its terminals. Fig. 10... -
Page 33: Wiring Diagram
Schematics: Wiring diagram Wiring diagram Illustration This illustration shows the standard connection of the unit. Resistance coversion Temp. °C Kohm TEMP. 6,96 SENSOR 5,44 (EVAPO.) 4,29 3,40 2,72 2,19 1,77 TEMP. J1 (DIODE) SENSOR LED LAMP J17 (TEMP.) RGB RE EVAP.1 (COND.) RGB GR... - Page 36 Fax +49 (0) 71 50 – 23 37 www.set-energietechnik.de info@set-energietechnik.de SET Energietechnik GmbH can accept no responsibility for possible errors and changes (en) Irrtümer und Änderungen vorbehalten (de) SET Energietechnik GmbH n’assume aucune responsabilité pour erreurs et modifications éven- tuelles (fr)
